AB 4071-6 / AB 4071-12
Operating Instructions
Energy Saving Programs
Heating program with Timer Module
The connection of the 2-channel timer
module allows the automatic control
of independent heating and reduction
times (in heating-cooling operation
with AB HK 4000).
Temperature Setback mode:
When the Temperature Setback mode
is active:
• the basis reduces (in heating mode)
the minimum operating room temper-
ature by 2 K from the set target value.
• the basis increased (in cooling mode)
the maximum operating room temper-
ature by 2 K from the set target value.
Special case:
If a Wireless Thermostat is allocated to
various heating zones, and at the same
time, to the heating programs C1 and
C2, the temperature control follows the
heating zone with the lowest value in
the corresponding heating program.

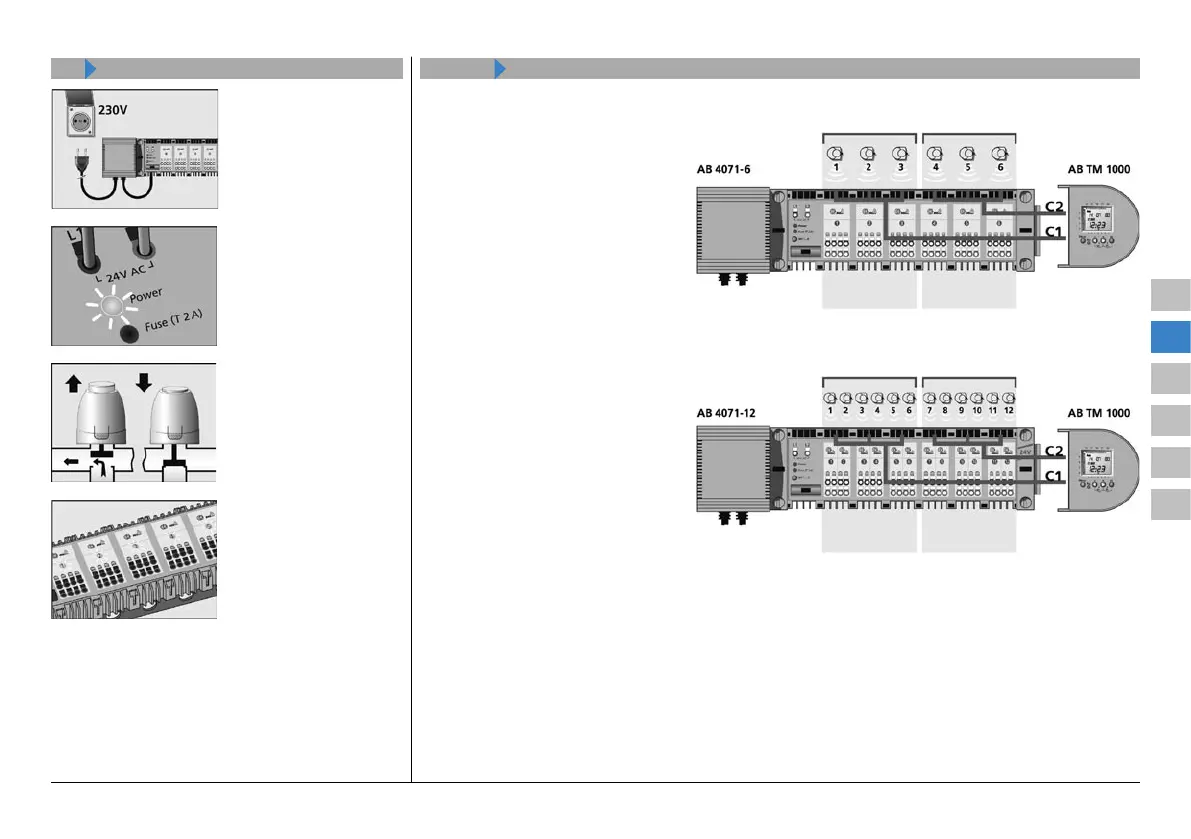

Arrangement for 6 heating zones
Arrangement for 12 heating zones
TimerModul
Energiesparprogramm C1
TimerModul
Energiesparprogramm C2
Räume dem Energiesparprogramm C1
zuordnen z.B. Wohnzimmer, Esszimmer
Räume dem Energiesparprogramm C2
zuordnen z.B. Küche, Bad
Räume dem Energiesparprogramm C1
zuordnen z.B. Wohnzimmer, Esszimmer
Räume dem Energiesparprogramm C2
zuordnen z.B. Küche, Bad
TimerModul
Energiesparprogramm C1
TimerModul
Energiesparprogramm C2
Start-up
Supply voltage (plug in
transformer plug into
power outlet).
The operation display
lights up if network volt-
age is present.
All LED heating zone in-
dicators light up during
this process.
All heating zones are
switched on for 8 minutes
to unlock the first-open
function of the actuators.
