Appendix B
30 MACH 10 Residential Ultrasonic Meter Installation and Maintenance Guidee

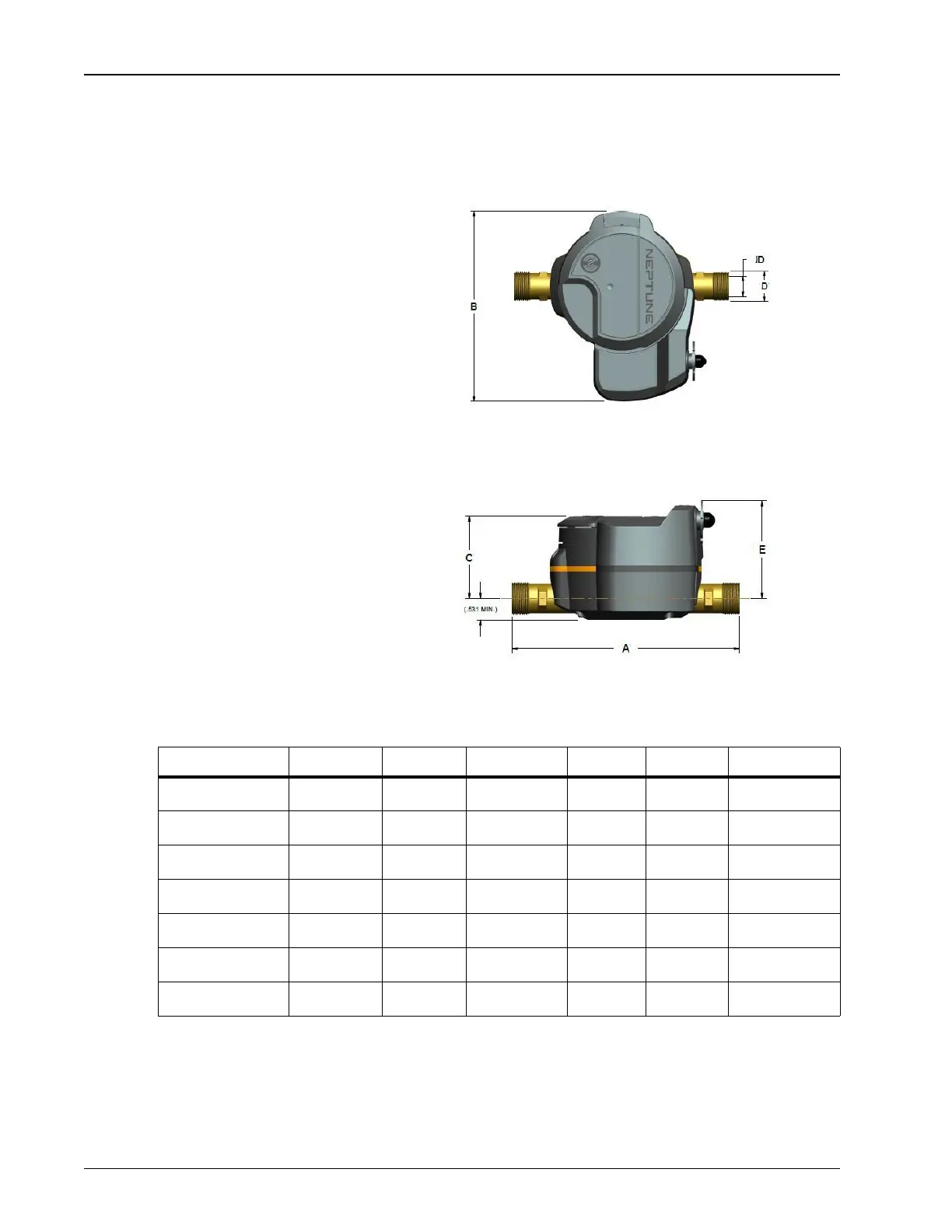

Dimensions and Weight
This section provides the dimensions of the MACH 10)R450i.
Fgure 20 MACH 10)R450i Top View
Figure 21 MACH 10)R450i Side View
Table 13 MACH 10)R450i
Meter Size A B C D NSPM E ID
5/8 inch 7-1/2 inch 6-5/8 inch 2-17/32 inch 1.030 3.00 inch 0.69 inch
5/8 inch x 3/4 inch 7-1/2 inch 6-5/8 inch 2-17/32 inch 1.290 3.00 inch 0.69 inch
3/4 inch 9 inch 6-5/8 inch 2-19/32 inch 1.290 3.00 inch 0.755 inch
3/4 inch SL 7-1/2 inch 6-5/8 inch 2-19/32 inch 1.290 3.00 inch 0.755 inch
3/4 inch x 1 inch 9 inch 6-5/8 inch 2-19/32 inch 1.626 3.00 inch 0.755 inch
1 inch 10-3/4 inch 6-5/8 inch 2-19/32 inch 1.626 3.00 inch 1 inch
1 inch x 1-1/4 inch 10-3/4 inch 6-5/8 inch 2-19/32 inch 1.865 3.00 inch 1 inch
