Nespresso Essenza C91 - European Wiring Diagram (230 V;50 Hz)

22
Repair
ServiceManualC91/D91 enVersion1.0

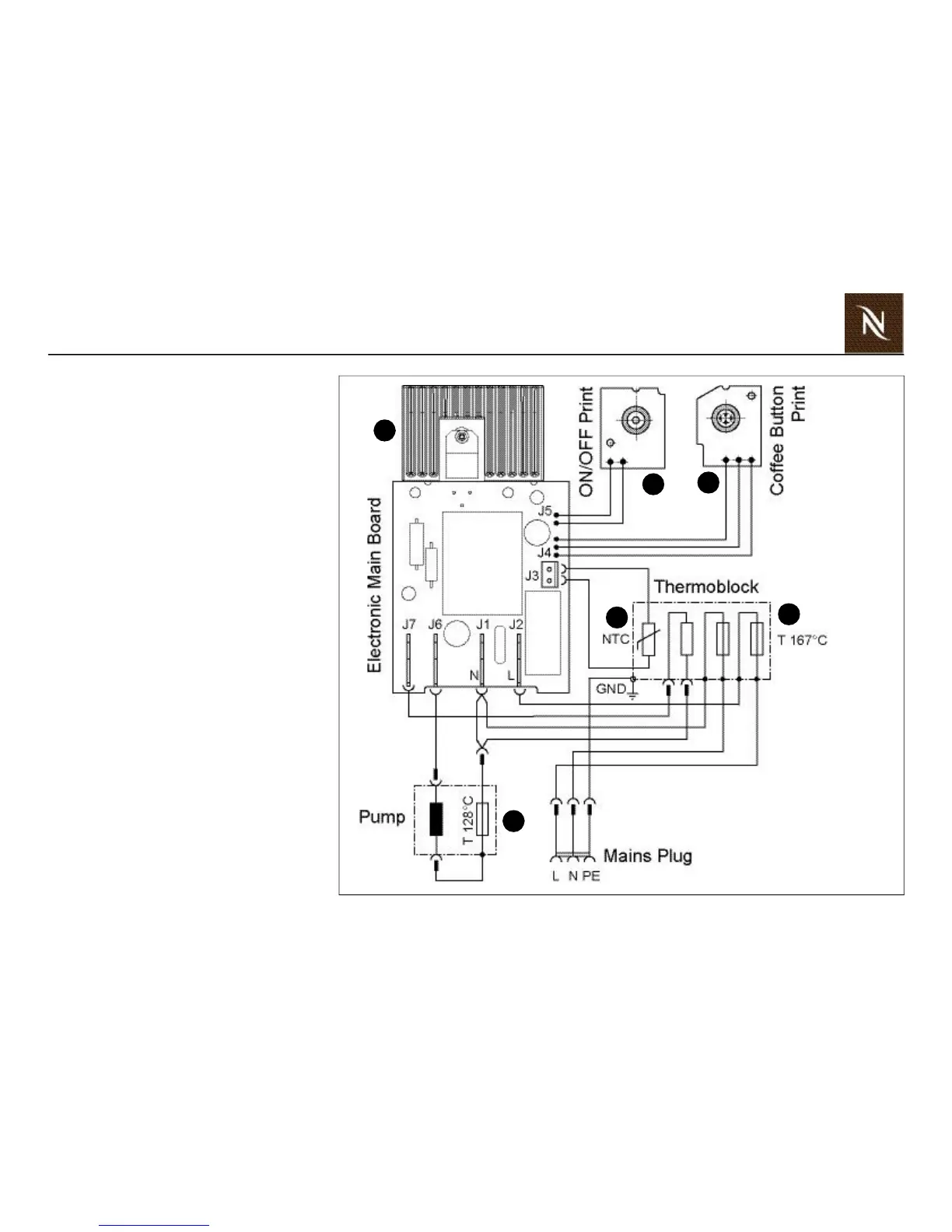

WiringdiagramEurope(230V/50Hz)
1) Heatsink
2) PrintforOn/Offbutton
3) PrintforcoffeebuttonwithLED
4) NTCtemperaturesensor
5) Thermalfusesonthermoblock
6) Thermalfuseonpump
1
6
5
3
2
4
