SANDSTORM
™
SINGLE/DOUBLE CHAMBER INSTALLATION MANUAL | 11
INSTALLATION
10. Make sure that all the grooved coupling connections are properly aligned.
11. Fasten all the grooved couplings. Fasten the two nuts of each grooved coupling alternately until the
coupling is evenly tightened around both pipes (see Grooved coupling connection, page 7).

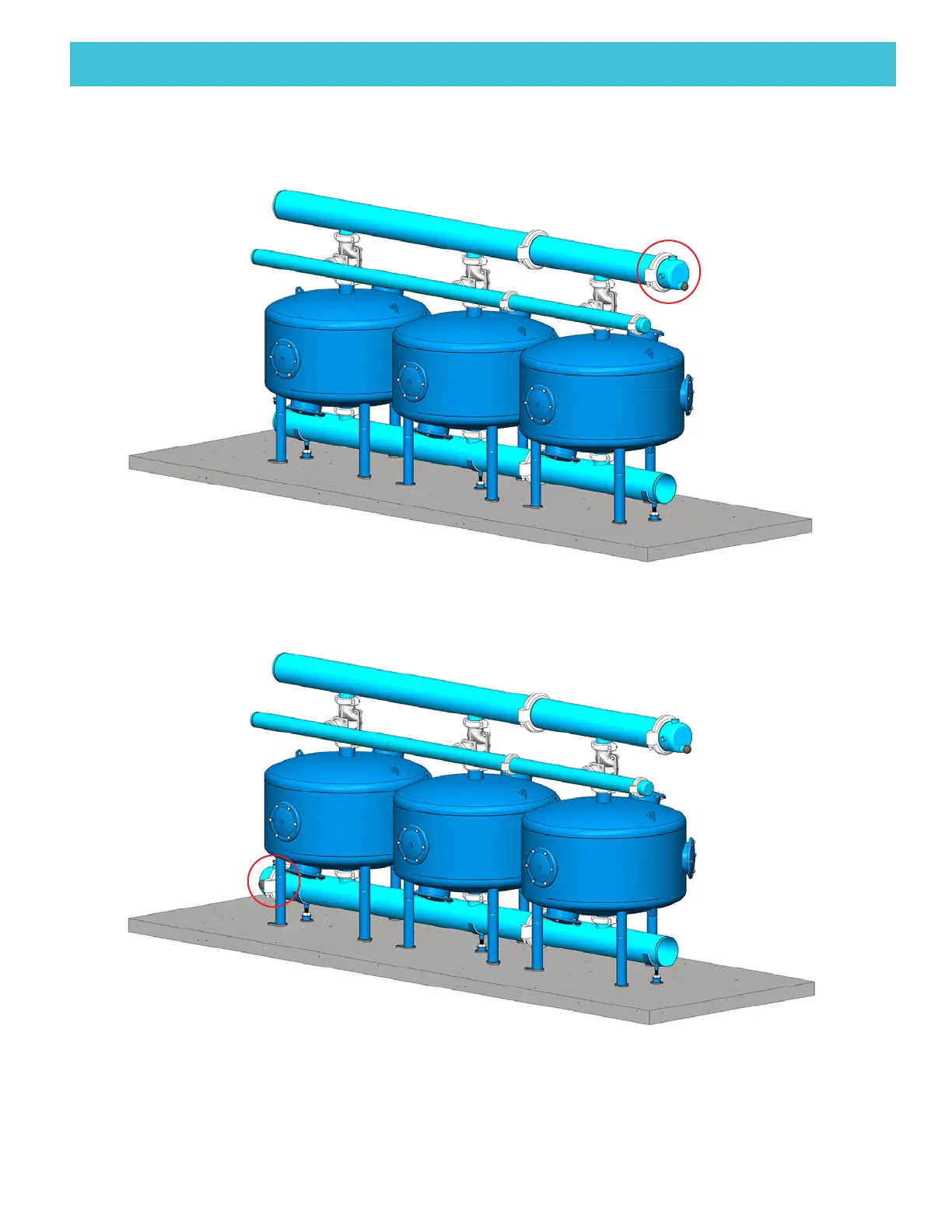

8. Connect the end-cap to the inlet manifold with a grooved coupling. Make sure that the end-cap is placed
with the socket for the air valve pointing upwards and the socket for the control assembly pointing
sideways.
9. Connect the end-cap to the outlet manifold with a grooved coupling. Make sure that the end-cap is
placed with the 1” outlet pointing upwards.
