SANDSTORM
™
SINGLE/DOUBLE CHAMBER INSTALLATION MANUAL | 3
INTRODUCTION
Aim of this manual
The aim of this manual is to provide the technician with general instructions for the installation of any
configuration of the SandStorm™ metal single/double chamber sand filtration system.
All system components are shipped to the site packed in pallets and boxes with installation drawings, user
manual and packing list.
NOTE
This manual describes the generic installation process of a SandStorm™ filtration system.
The installation should be carried out in line with the installation drawings supplied with the system.
Safety instructions
Before handling any part of the system, carefully read the instructions and act accordingly.
NOTE
The maximum working pressure of the filtration system is 8 bar (116 PSI).
(For filtration systems made to order, see the maximum working pressure in the Product Order).
Check and make sure the pumps and valves do not exceed the tolerances of the system and that they match
the requirements of the system pressure and flow-rate specifications (see the documentation supplied with
the system).
WARNING
Do not perform installation or maintenance operations or open filter ports before the pressure in the
system is fully released. For draining purposes, open any valve downstream from the filtration system
until the pressure is fully released. Check the pressure gauge to be sure it is at 0 before proceeding.

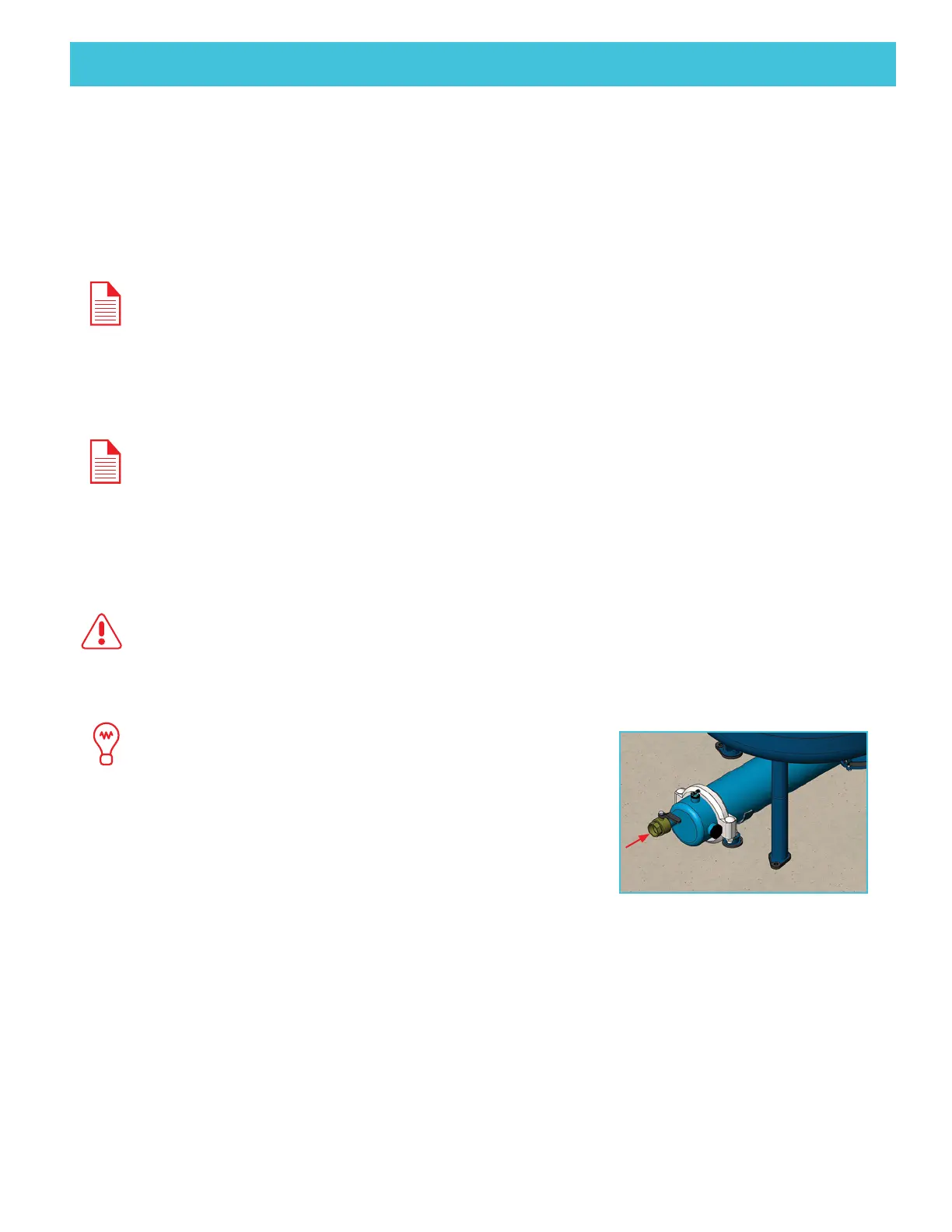

TIP
If a valve downstream from the filtration system is not available
for pressure release, you can install a manual valve on the lower
2” socket of the outlet manifold end-cap.
Electrical connections and wiring must be done by an authorized electrician only.
Be sure that prior to any maintenance procedures, all electrical connections to the system (AC controller,
pumps, etc.) are unplugged.
Work only with proper standard tools (see Tools required for installation, page 6).
Use only original parts supplied/approved by Netafim™.
