4 | SANDSTORM
™
SINGLE/DOUBLE CHAMBER INSTALLATION MANUAL
INTRODUCTION
General instructions
• Installation must be performed by experienced and knowledgeable technicians.
• Consult your supervisor if problems occur during installation.
• Do not apply excessive force or pressure on components during installation.
Electricity
• AC controller only: Ensure that a suitable electrical power supply is available in the vicinity of the
installation for electrical connection of the controller (see Electricity connection, page 5).
• An additional electrical socket should be available at the installation site for installation and service.
Components and structure

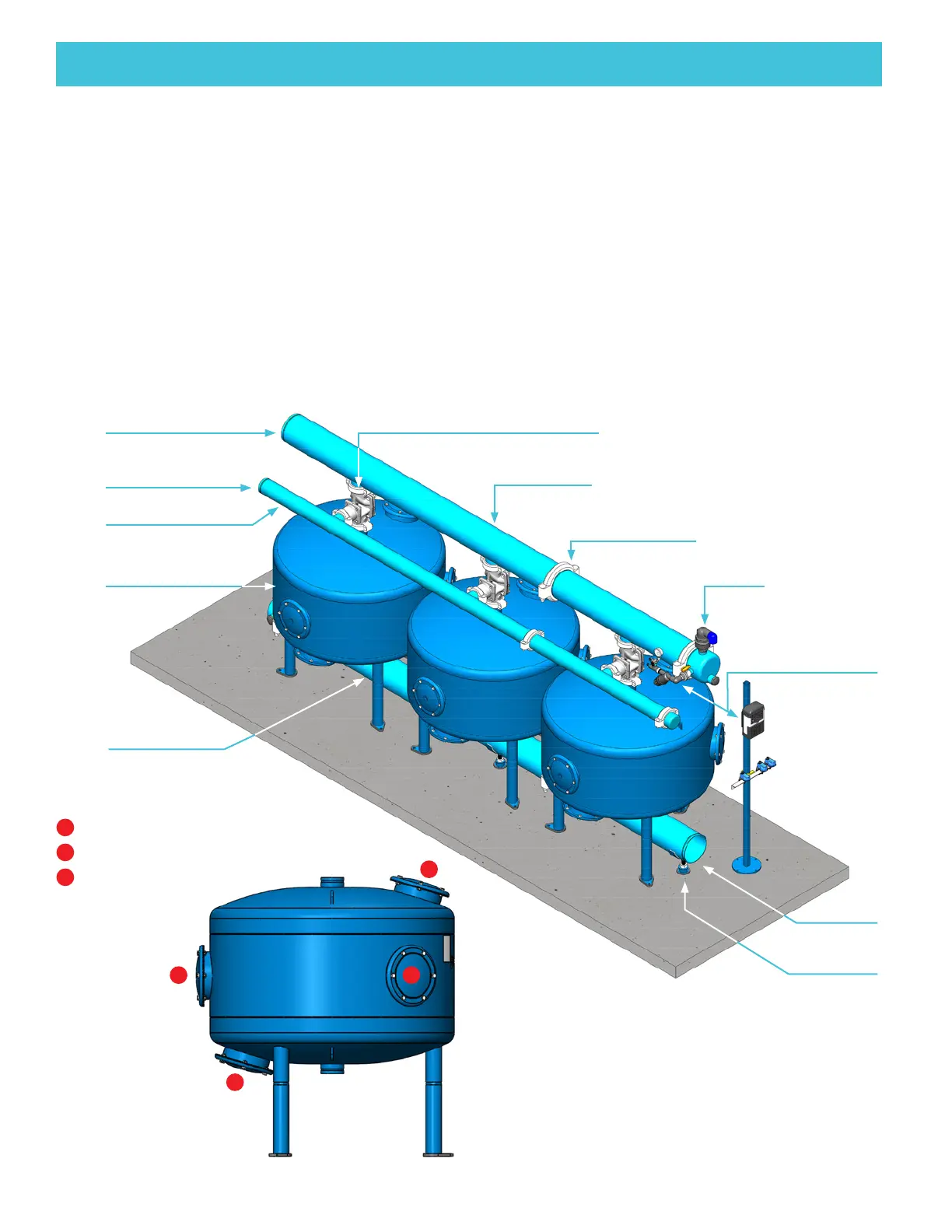

A media filtration system is comprised of the following components:
Media filter tank
Backwash 3-way hydraulic valves
Filtration system
control kit
Air valve
Inlet manifold
Outlet manifold
Backwash manifold
Grooved coupling
Manifold
support legs
Inlet
Outlet
Backwash
outlet
1
2
3
2
Location of the tank ports
1
Filling port
2
Side service port
3
Bottom service port
