Step 4: Reinstall controller canister

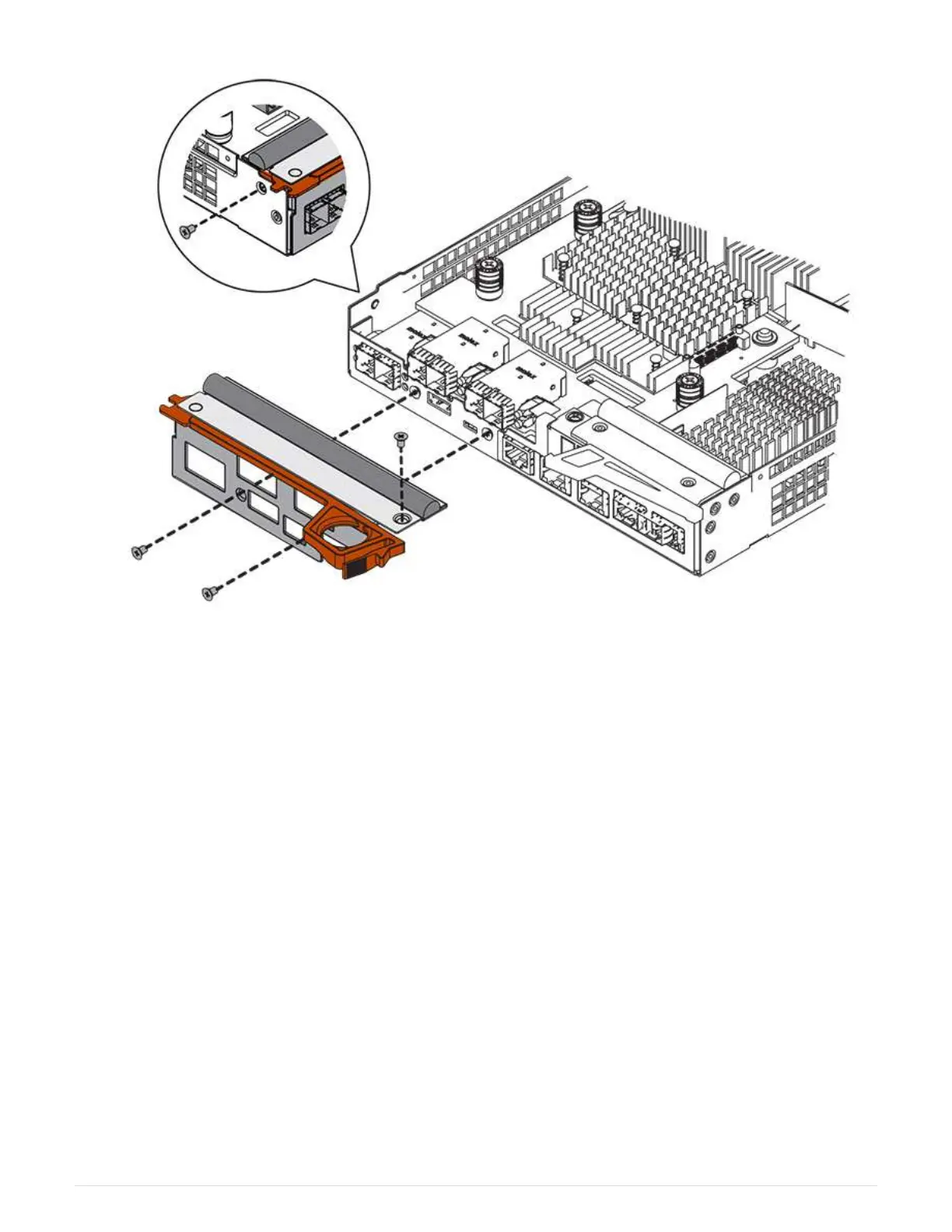

After installing the HIC, reinstall the controller canister into the controller shelf.
Steps
1. Turn the controller canister over, so that the removable cover faces down.
2. With the cam handle in the open position, slide the controller canister all the way into the controller shelf.
The following figure is an example of an E5724 controller shelf:
109
