NetApp E2824 Install And Setup

1. Connect each host adapter directly to the switch.
2. Connect each switch directly to the host ports on
the controllers.
Step 2: Connect and configure the management connection
You can configure the controller management ports using one of two options: using a DHCP server or using a
static IP address.
Option 1: DHCP server
Learn how to configure the management ports with a DHCP server.
Before you begin
• Configure your DHCP server to associate an IP address, subnet mask, and gateway address as a
permanent lease for each controller.
• Obtain the assigned IP addresses you will use to connect to the storage system from your network
administrator.
Steps
1. Connect an Ethernet cable to each controller’s management port, and connect the other end to your
network.
Ethernet cables (if ordered)

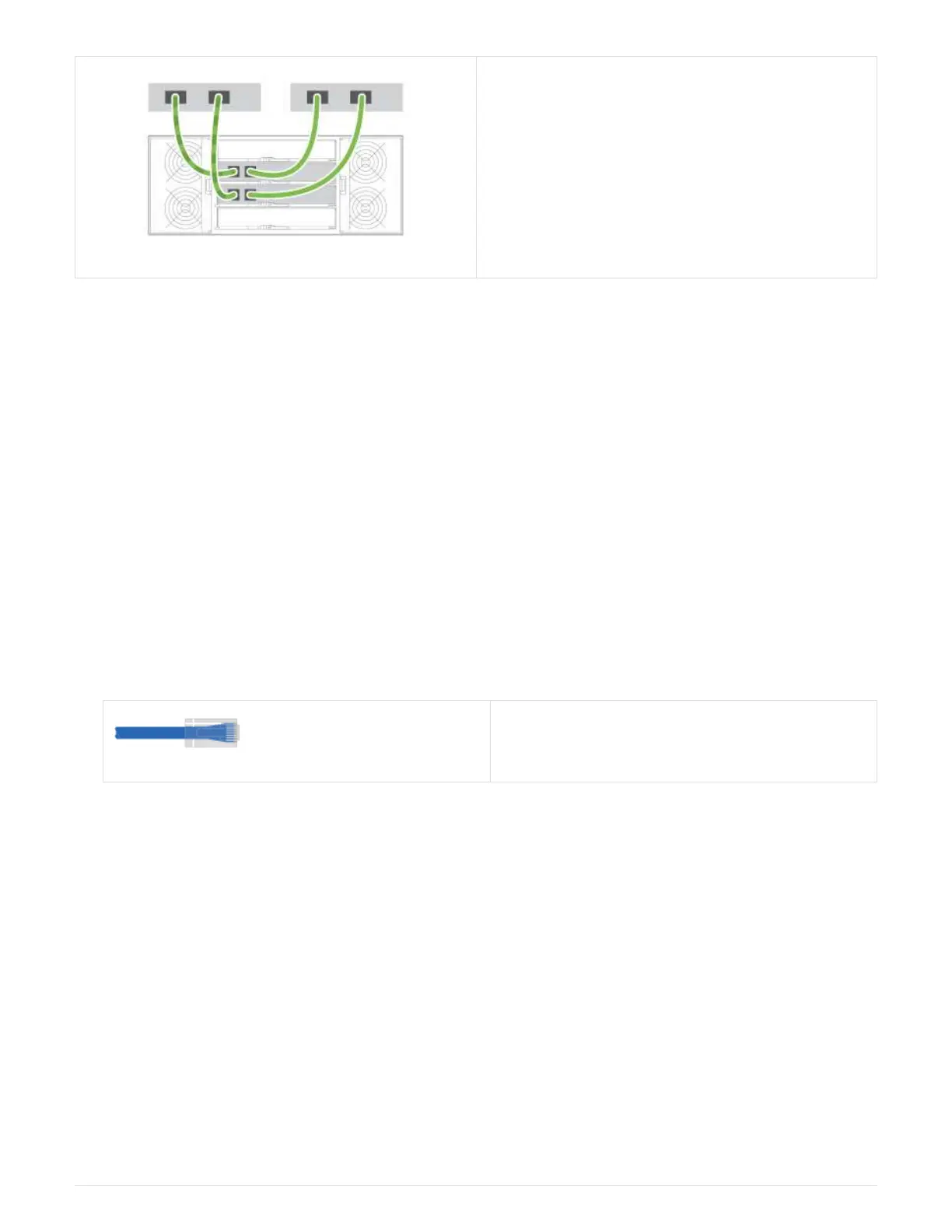

The following figures show examples of the controller’s management port location:
10

NetApp E2824 Specifications

General

Model	E2824
Category	Storage
Form Factor	2U
Drive Bays	24
Maximum Raw Capacity	1.8PB
Host Interface	12 Gb/s SAS
RAID Support	Yes
Hot-Swap Drives	Yes
RAID Levels	0, 1, 5, 6, 10
Power Supply	Dual redundant
Drive Type	SAS, SSD
Host Connectivity	12Gb/s SAS
Controller	Dual active controllers
