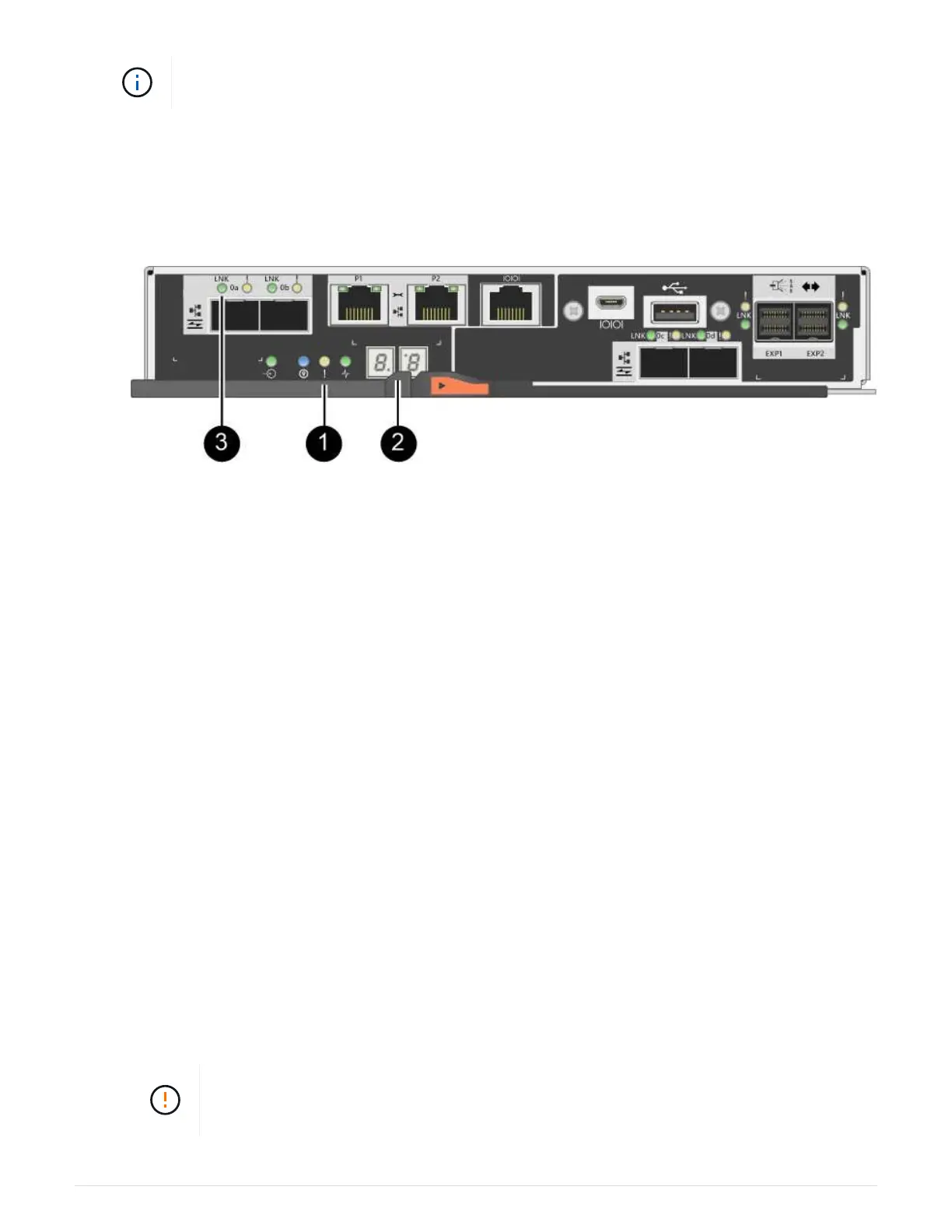

The figure shows an example controller canister. Your controller might have a different
number and a different type of host ports.
When communication with the other controller is reestablished:
◦ The seven-segment display shows the repeating sequence OS, OL, blank to indicate that the
controller is offline.
◦ The amber Attention LED remains lit.
◦ The Host Link LEDs might be on, blinking, or off, depending on the host interface.
(1) Attention LED (amber)
(2) Seven-segment display
(3) Host Link LEDs
2. Bring the controller online using SANtricity System Manager.
◦ From SANtricity System Manager:
a. Select Hardware.
b. If the graphic shows the drives, select Show back of shelf.
c. Select the controller you want to place online.
d. Select Place Online from the context menu, and confirm that you want to perform the operation.
The system places the controller online.
◦ Alternatively, you can use the following CLI commands:
For controller A:
set controller [a] availability=online;
For controller B: set controller [b] availability=online;
3. Check the codes on the controller’s seven-segment display as it comes back online. If the display shows
one of the following repeating sequences, immediately remove the controller.
◦ OE, L0, blank (mismatched controllers)
◦ OE, L6, blank (unsupported HIC)
Possible loss of data access — If the controller you just installed shows one of these
codes, and the other controller is reset for any reason, the second controller could also
lock down.
