Security Gateway Manual SG-1100
Ethernet Ports
Interface Name Port Name Port Type Port Speed
WAN mvneta0.4090 RJ-45 1 Gbps
LAN mvneta0.4091 RJ-45 1 Gbps
OPT mvneta0.4092 RJ-45 1 Gbps
Note: The ethernet ports are switched and configured by default on their own VLAN, see the Switch Overview for
more information.
Other Front Ports
• 1x USB 2.0 (left side)
• 1x USB 3.0 (right side)

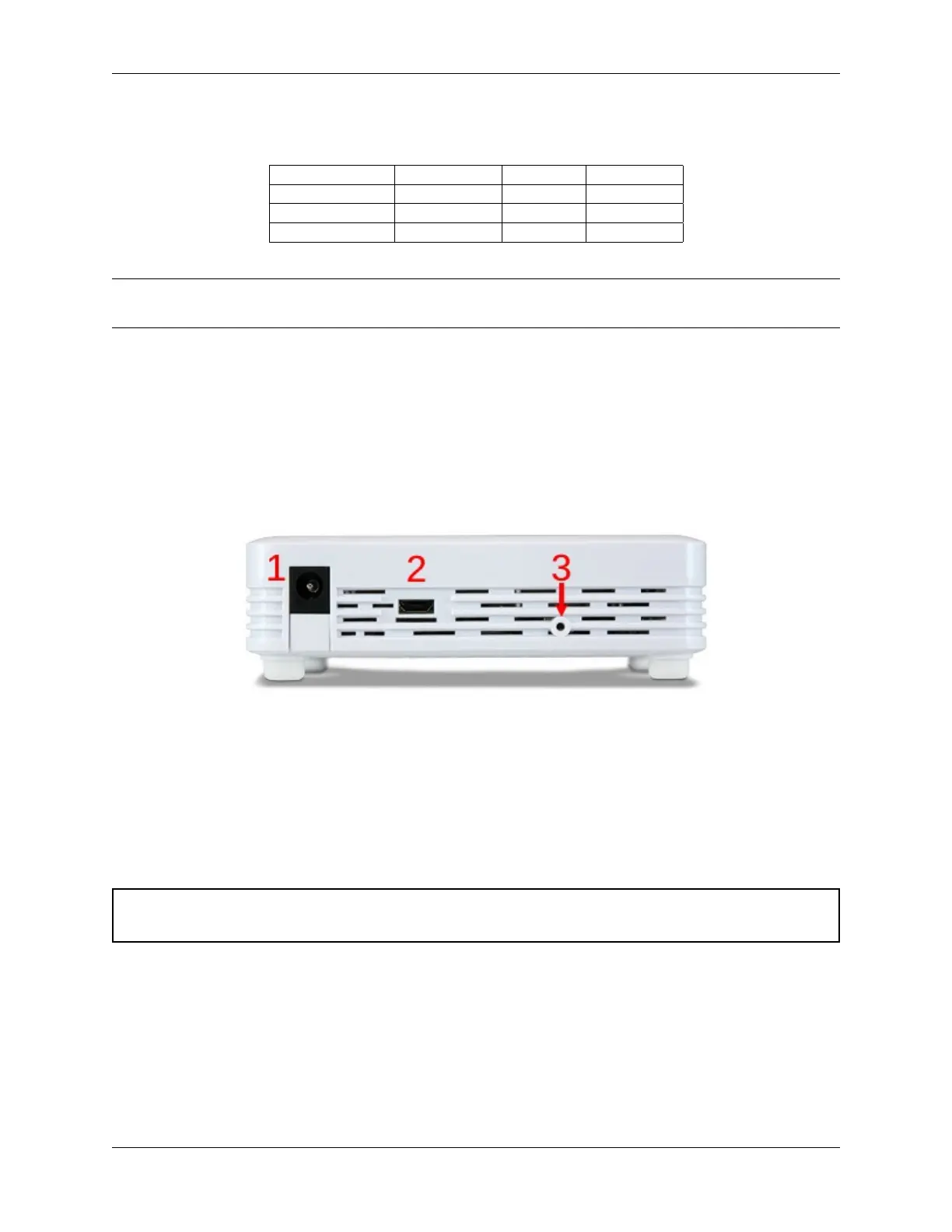

1.4.2 Rear Side
From left to right:
1. Power Connector
• 12VDC 2A Center Pin Positive
• Power Consumption 3.48W (Idle)
2. Micro USB Console Port
3. Recessed Reset Button (performs a hard reset, immediately turning the system off)
Warning: A hard reset of the system could cause data corruption and should be avoided. Halt or reboot the
system through the console menu or the webConfigurator to avoid data corruption.
© Copyright 2020 Rubicon Communications LLC 11
