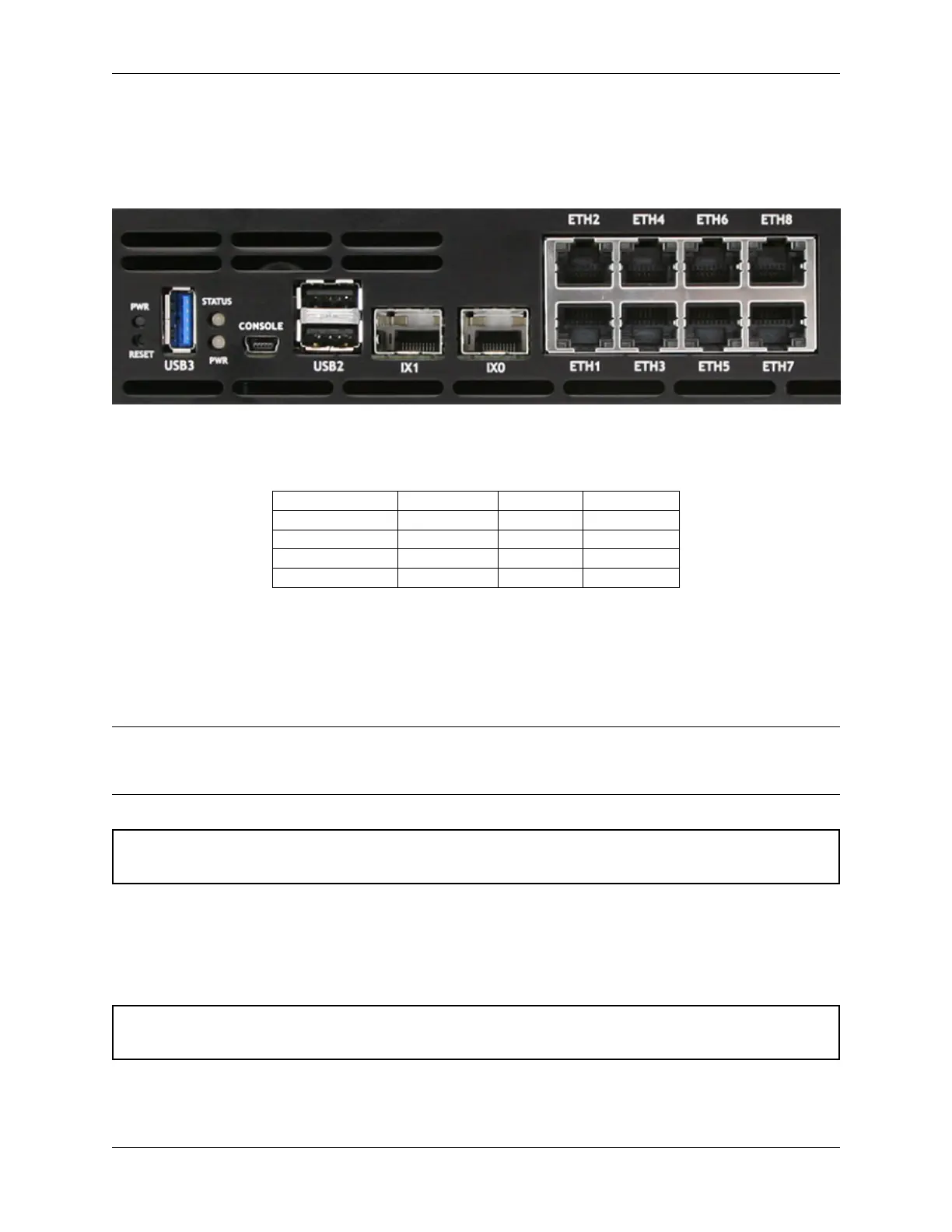

1.4 Input and Output Ports
1.4.1 Front Side
Networking Ports
Interface Name Port Name Port Type Port Speed
WAN ETH1 RJ-45 1 Gbps
LAN ETH2-ETH8 RJ-45 1 Gbps
OPT1 IX0 SFP+ 10 Gbps
OPT2 IX1 SFP+ 10 Gbps
RJ-45 Ethernet Ports
ETH1-8 are switched ports sharing 5 Gbps (2x 2.5 Gbps) to the Intel SoC. These ports can be isolated as an indepen-
dent interface with the configuration of VLAN tagging as shown in Switch Ports Overview.
Tip: Best Practice: Use the ports on the 4-port Network Interface Card for the High Availability (HA) connections
(WAN, LAN, and Sync) on this product for complete failover and redundancy. For more information, review the High
Availability section of the XG-7100 Switch Overview page.
Warning: LAGG has limited support currently on the ethernet switchports (Load Balance mode only). For more
information, review the Switch LAGG section of the XG-7100 Switch Overview page.
SFP+ Ethernet Ports
IX0-IX1 are discrete ports, each with dedicated 10 Gbps back to the Intel SoC.
Warning: The ix(4) driver used for ports IX0-IX1 does not support ALTQ traffic shaping directly. Limiters or
tagged VLAN interfaces may be used for ALTQ traffic shaping.
