NETGEAR C3700 Manual

4. Check that the Power, Receive, Send, and Online front panel LEDs on the C3700 light up
in sequential order. See Front Panel for additional LED status information.
ο If all four LEDs did not light up solid and you also do not have an Internet connection, you may have
to contact ATMC to reactivate the C3700 or check for signal issues.

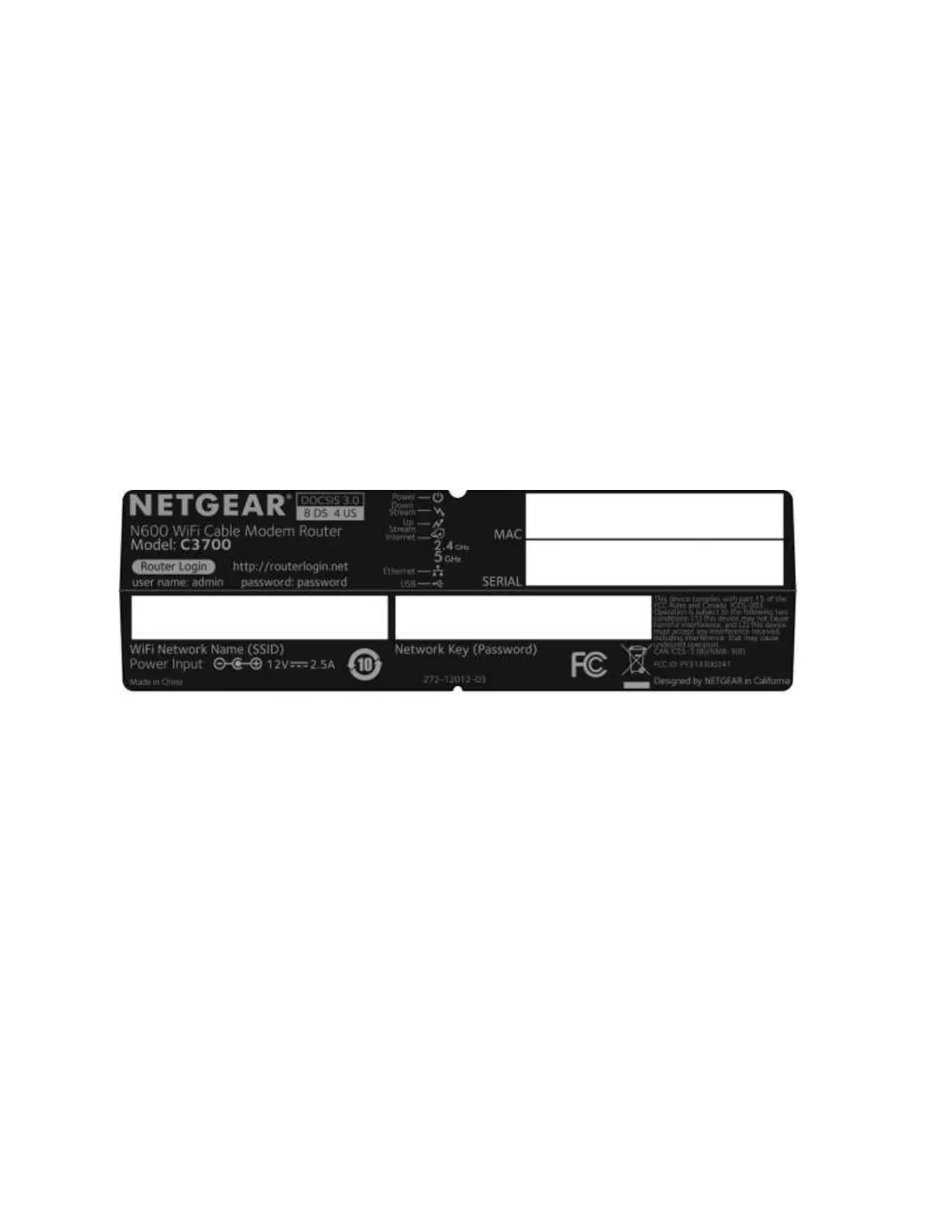

Gateway Label
The gateway label is located on the bottom of the C3700. It contains specific gateway ID information
that you may need when contacting your service.
To receive Internet service, you will have to contact ATMC for assistance. You may need to
provide the following information listed on the gateway label:
ο Gateway model name (C3700)
ο Gateway MAC address (HFC MAC ID)
ο Gateway serial number (S/N)

NETGEAR C3700 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Memory card slot(s)	No
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Product type	Tabletop router
Product color	Black
Power source type	DC
Security algorithms	WPA, WPA2-PSK
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	41 mm
Width	113 mm
Height	193 mm
Weight	352 g
