NETGEAR EX6120 Quick Start

12
19. Test the extended WiFi range by moving your computer or WiFi device
to the area with a poor router WiFi signal:
a. Leave your computer or WiFi device in the area with a poor router
WiFi signal and return to the extender.
b. Check the Device Link LED on the extender:
• If the Device Link LED is solid green or amber, your extended
WiFi network reaches the area with a poor router WiFi signal
and your network setup is complete.
• If the Device Link LED is red, your extended WiFi network
does not reach the area with a poor router WiFi signal.
You must move the computer or WiFi device closer to the
extender until the Device Link LED turns solid green or
amber.

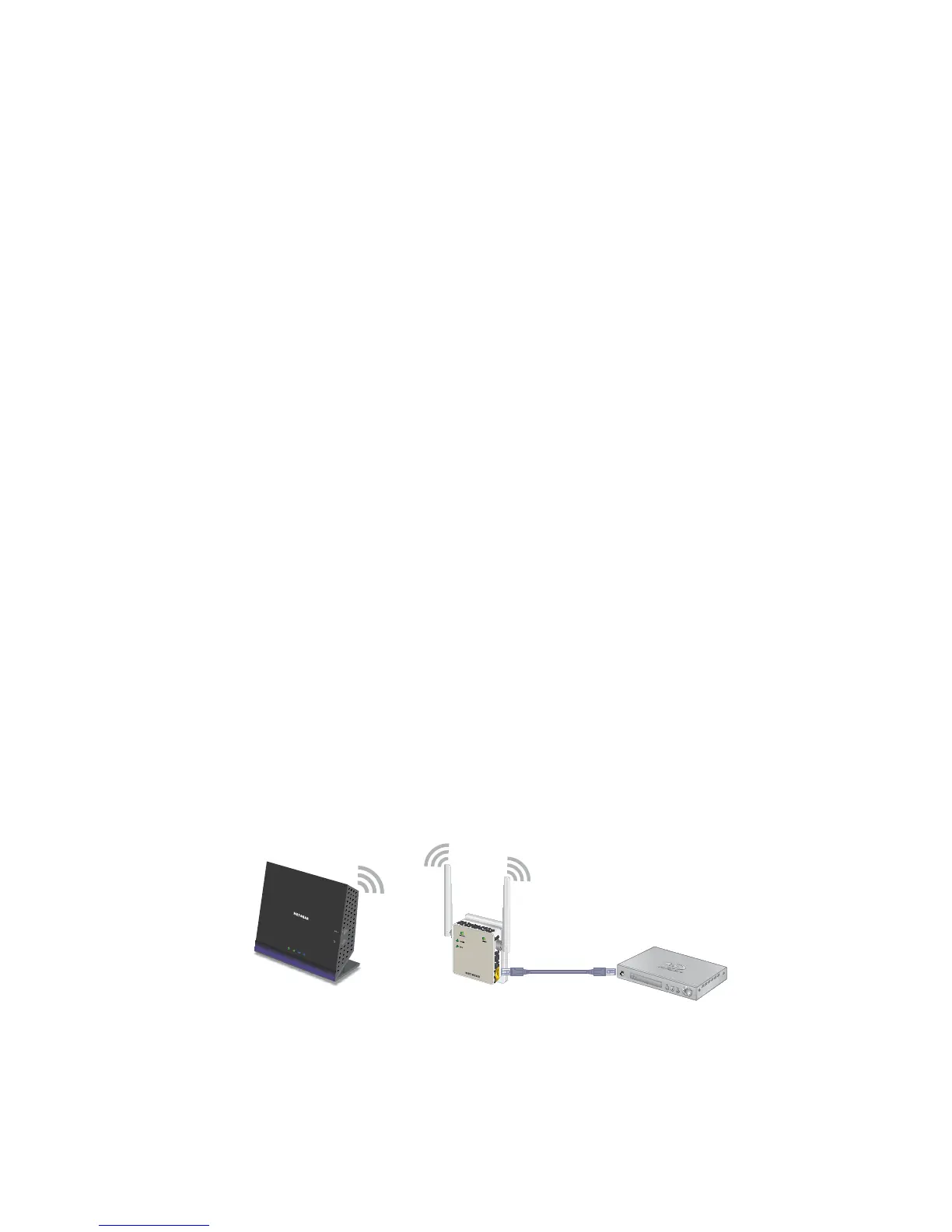

Connect an Ethernet-Enabled Device
After the extender is connected to your existing WiFi network, you can
connect a wired device to the extender using an Ethernet cable. That
device can then access your existing network through the WiFi connection.
Extender
Blu-ray player
Router

NETGEAR EX6120 Specifications

General

Type	Network transmitter
Browser supported	Microsoft Internet Explorer 8.0, Firefox 20, Safari 5.1, Google Chrome 25.0
Maximum transfer distance	- m
LED indicators	Yes
Antennas quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WEP, WPA, WPA2-PSK, WPS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38 mm
Width	74 mm
Height	122 mm
Weight	293 g
