NETGEAR EX6120 Quick Start

13

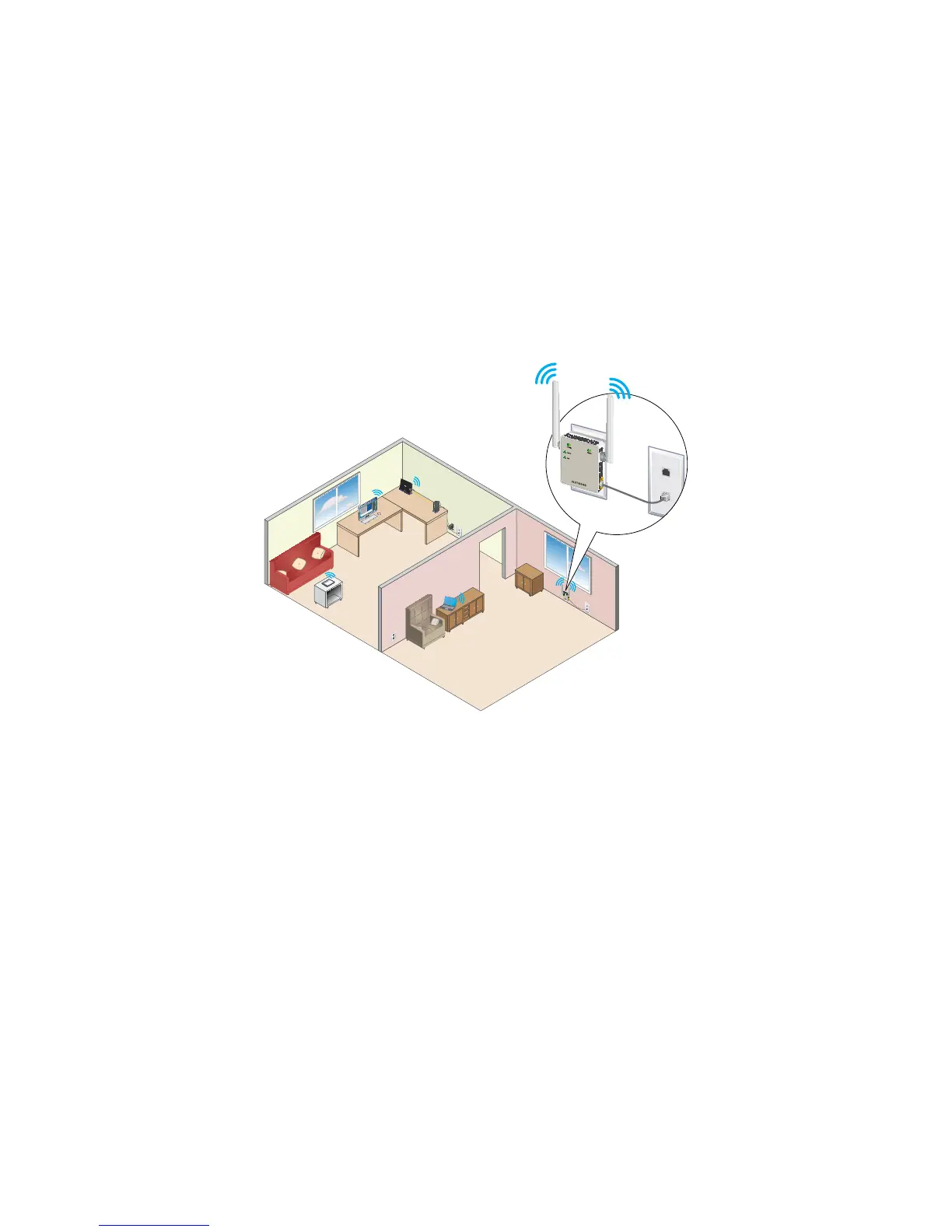

Use the Extender in Access Point Mode
You can use the extender as a WiFi access point, which creates a new WiFi
hotspot by using a wired Ethernet connection.
1. Plug the extender into an electrical outlet and wait for the Power LED
to light green.
If the Power LED does not light, press the Power On/O button.
2. Use an Ethernet cable to connect the Ethernet port on the extender
to a router Ethernet LAN port or a remote Ethernet LAN jack with LAN
access.
The extender joins the LAN and creates a WiFi hotspot.

NETGEAR EX6120 Specifications

General

Type	Network transmitter
Browser supported	Microsoft Internet Explorer 8.0, Firefox 20, Safari 5.1, Google Chrome 25.0
Maximum transfer distance	- m
LED indicators	Yes
Antennas quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WEP, WPA, WPA2-PSK, WPS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38 mm
Width	74 mm
Height	122 mm
Weight	293 g
