5.1.2. Configure the Avaya one-X Quick Edition Telephones and Avaya one-
X Quick Edition G10 PSTN Gateway
Open the Avaya one-X Quick Edition Web administration interface by browsing to the IP
address of one of the telephones. Select System Options and enter the Admin Password. From
the System Options menu on the left, select Networking. From the menu on the right, select
VLAN Settings and then Change Details. From the pull-down menu labeled Audio Tagging,
select Enabled. From the pull-down menu labeled Audio Priority, select 6. Select Submit.

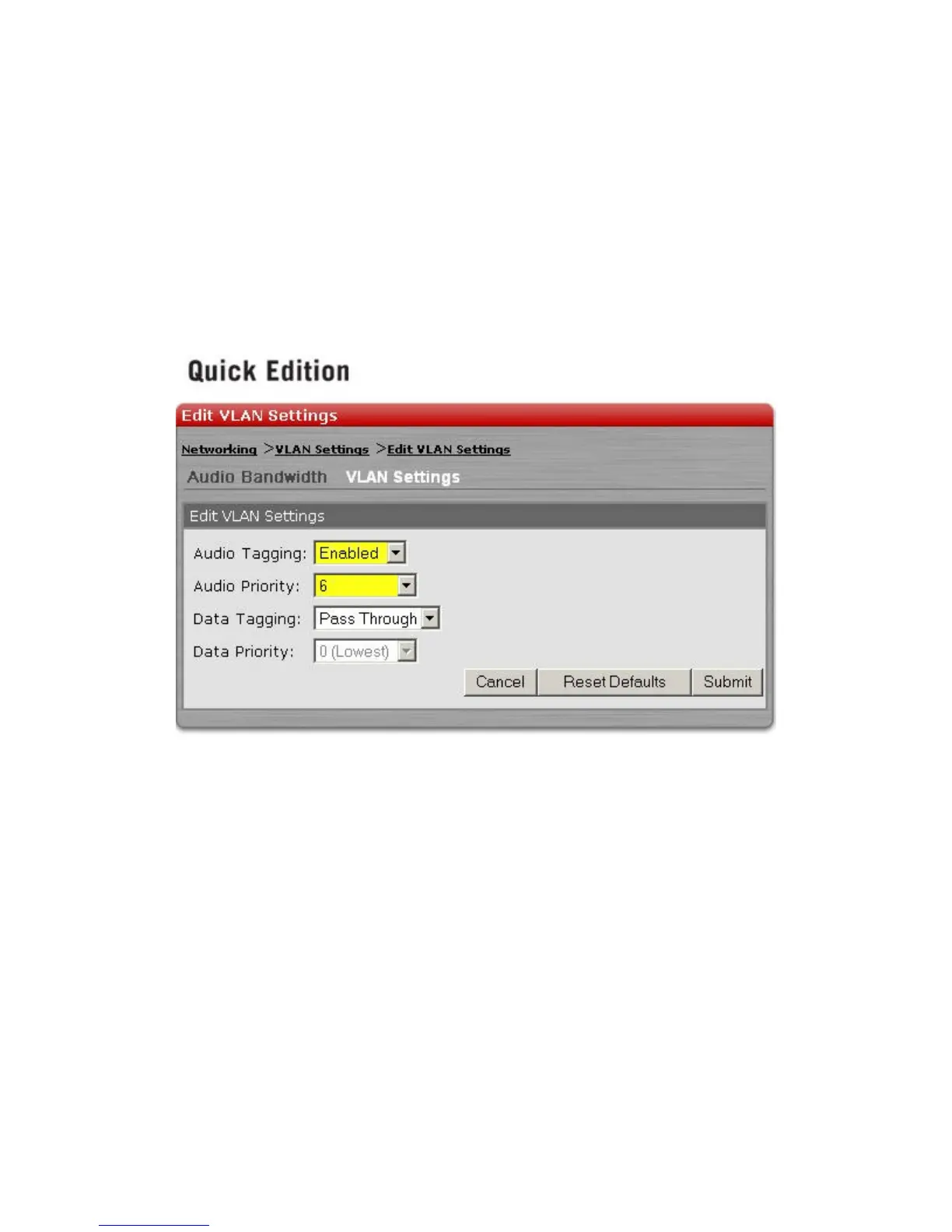

Figure 13: Quick Edition VLAN Configuration
Avaya one-X Quick Edition does not support a separate Voice VLAN. For this configuration,
the QE devices will be on the Data (100) VLAN selected as the default VLAN.
