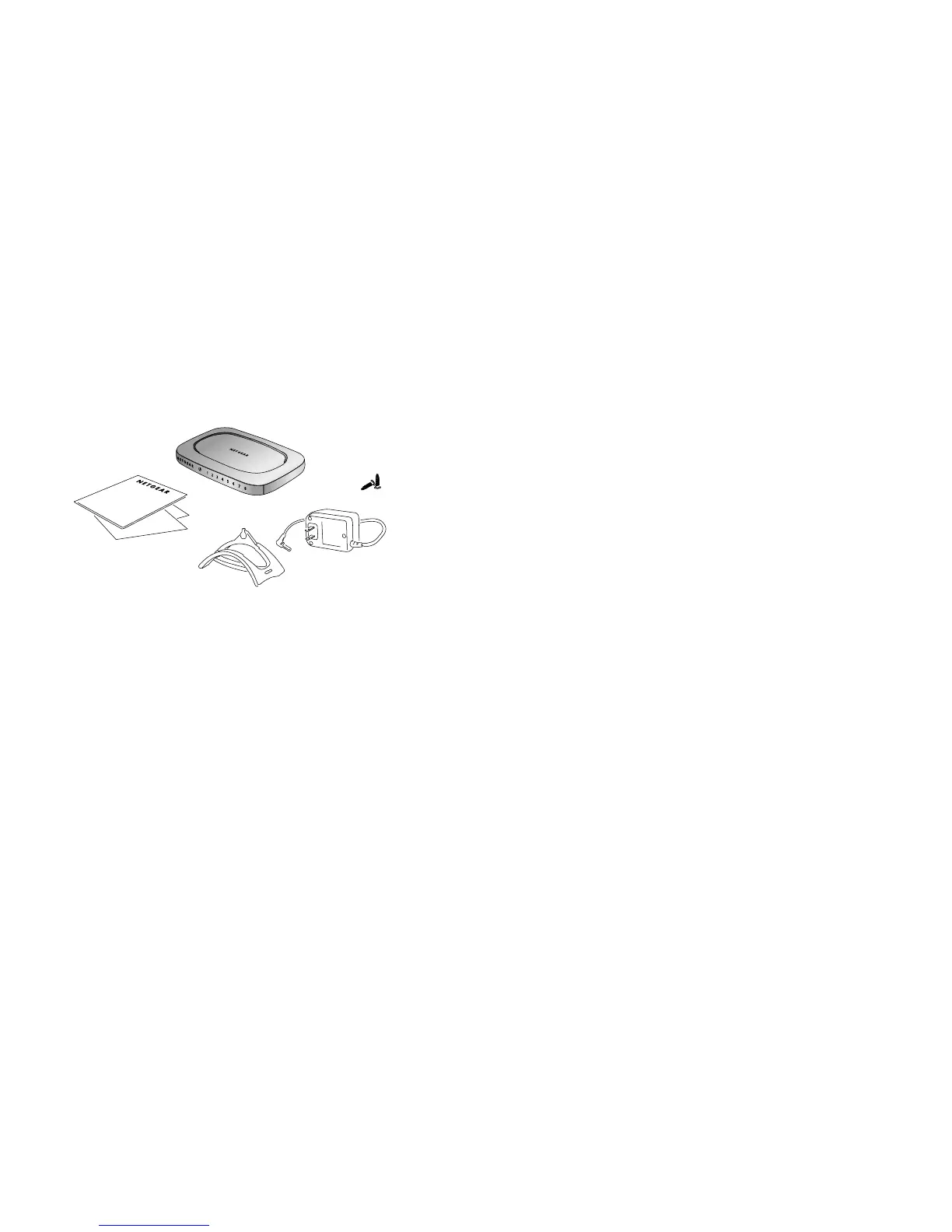

Unpack the Box and Verify the
Contents
When you open the box, verify that you received everything. The package includes:
8-Port Fast Ethernet Switch FS608
AC power adapter
Vertical stand and cable strap
Wall-mounting screws
FS608 Installation Guide (this document)
Warranty and registration card
Support information card
If you dont have everything listed above, see the support information card for contact
information. If youre missing the support information card itself, get contact information at
www.NETGEAR.com in the Customer Service area
Installation guide,
warranty/registration card
and support
information card
Power adapter
Wall-mount
hardware
Fast Ethernet Switch FS608
Stand
1
1
Prepare to Install the Switch
Decide where you want to place the switch. Find a flat horizontal surface — such as a table,
desk or shelf. The switch comes with wall-mounting screws and a vertical stand. Youre
welcome to use the screws if you want to hang the switch in an open space on a wall. Use the
vertical stand if you cannot provide adequate clear space on all sides with the switch in a
horizontal position.
Make sure the selected location is:
Not in direct sunlight or near a heater or heating vent.
Not cluttered or crowded. There should be at least 2 inches (5 cm) of clear space on all
sides of the switch.
Well ventilated (especially if it is in a closet).
Also, you’ll need one Category 5 (Cat 5) Ethernet cable with RJ-45 connectors for each device
you want to connect to the switch. Each Ethernet cable must be less than 328 feet (100 meters).
2
2

Other manuals for NETGEAR FS608

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR FS608 and is the answer not in the manual?

NETGEAR FS608 Specifications

Power IconPower
power consumption7.5 W max
voltage7.5 V
current1 A
Operating Environment IconOperating Environment
operating temperature0 to 40˚ C
operating temperature (Fahrenheit)32 to 104˚ F
operating humidity10% to 90% relative humidity, non-condensing
Network Specifications IconNetwork Specifications
standards compatibilityIEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x
data rate100 Mbps
network interfaceRJ-45 connector for 10BASE-T or 100BASE-TX
Weight and Dimensions IconWeight and Dimensions
width175 mm
depth118 mm
height28 mm
weight0.276 kg
