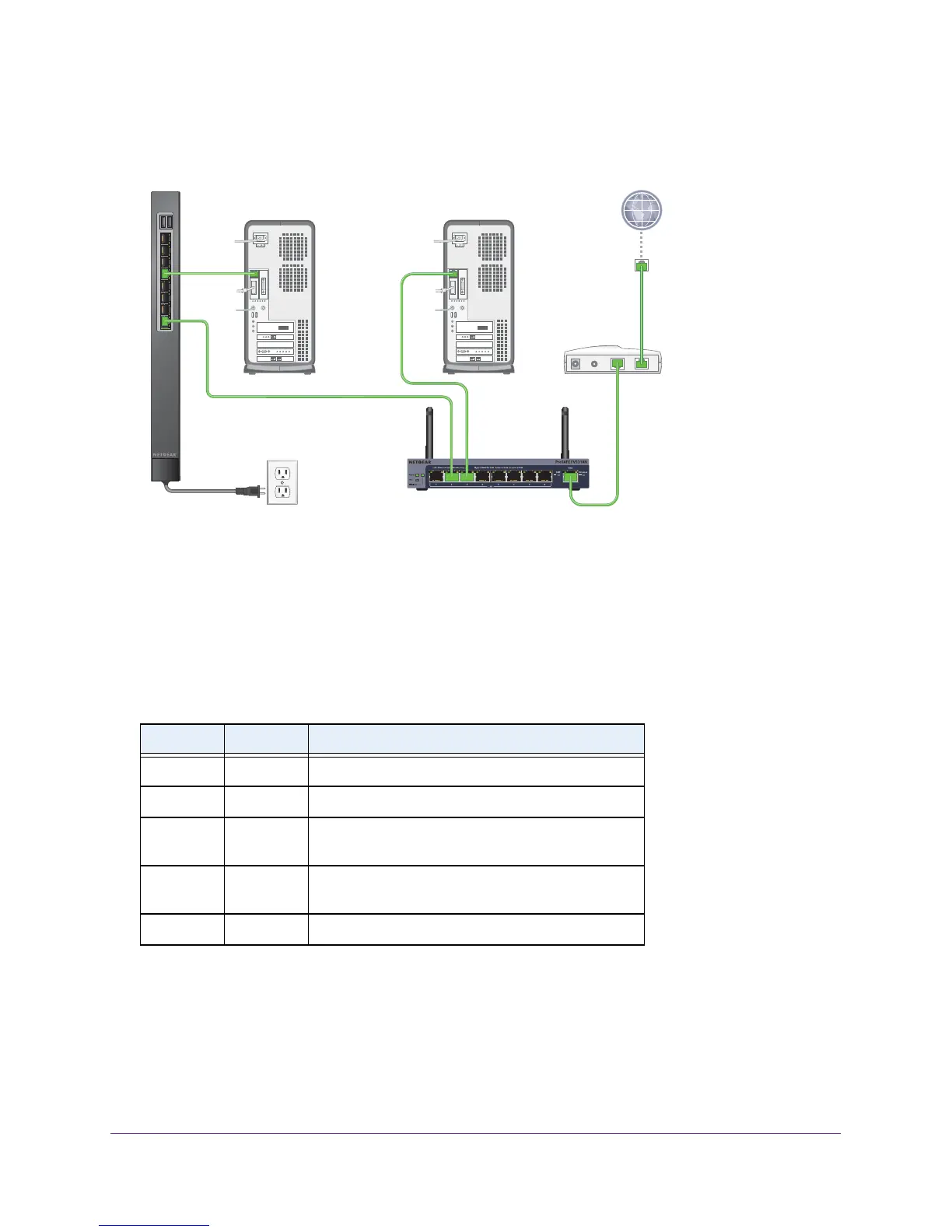

Hardware Setup
9
ProSAFE 8-Port and 16-Port Gigabit Web Managed Click Switch
3. Use either a vertical rear mount or a vertical side mount for the switch.
a
OR
a
bb
Vertical side mountVertical rear mount
Table Leg Mount
ļ To table-mount the switch:
1. Peel the plastic cover of
f the adhesive squares on the rear of the backplate.
The adhesive helps hold the backplate in place when you are mounting the switch.
2. Mount the backplate on a table leg using the cable retention straps.
3. Use a horizontal side mount for the switch.
