NETGEAR GSS108E Hardware Installation Guide

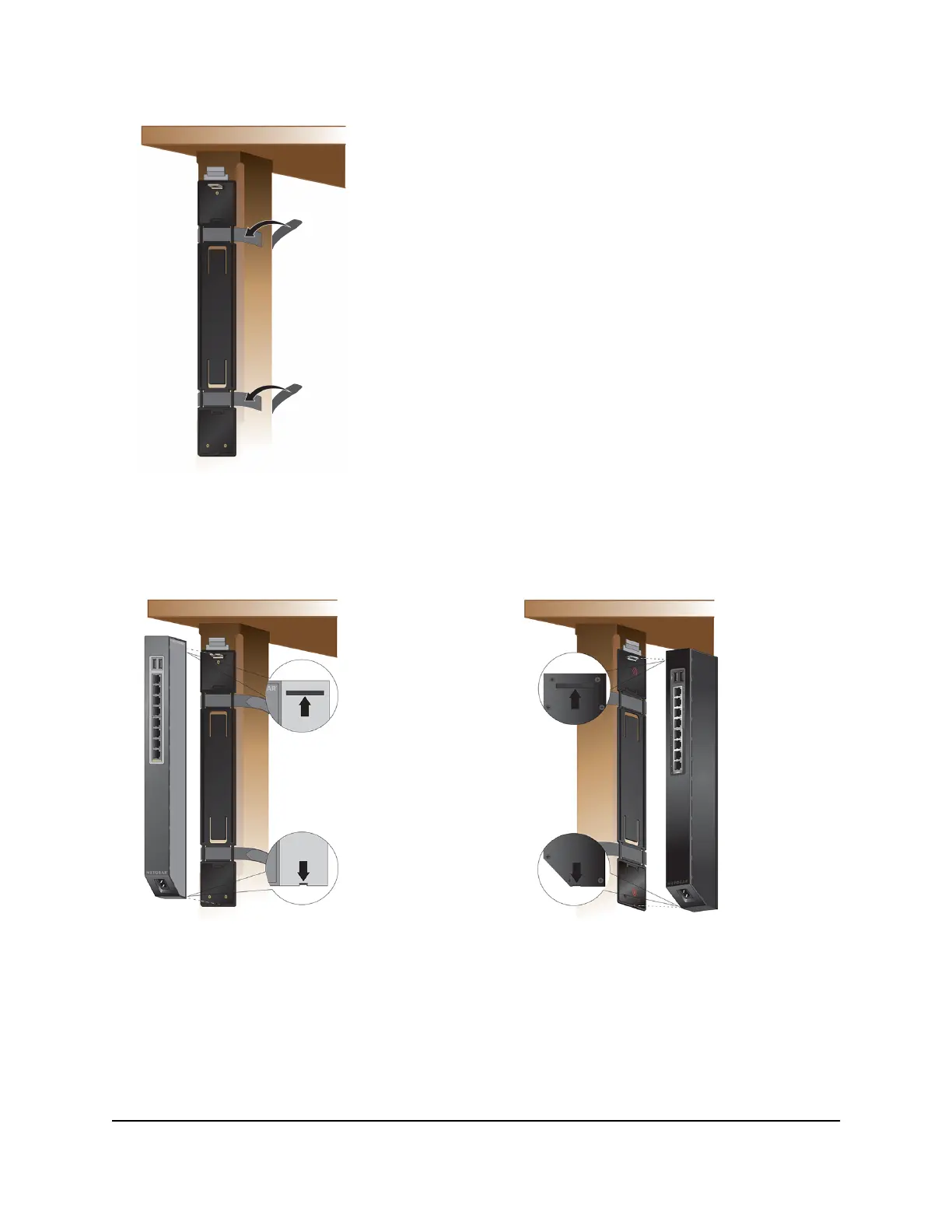

3. Attach the straps with the bracket to the pole or table leg.
4.
Line up the back of the switch (see the left figure) or the bottom of the switch (see
the right figure) with the bracket.
5. Insert the bracket’s lower locking tab and hook into the lower notch on the back or
bottom of the switch.
6. Insert the bracket’s upper locking tab and hook into the upper notch on the back or
bottom of the switch.
7. Click-attach the switch to the bracket.
Hardware Installation Guide33Installation
8-Port and 16-Port Gigabit Ethernet (PoE+) Smart Managed Plus Click Switch

NETGEAR GSS108E Specifications

General

Brand	NETGEAR
Model	GSS108E
Category	Switch
Language	English
