3. Attach the straps with the bracket to the pole or table leg.
4.

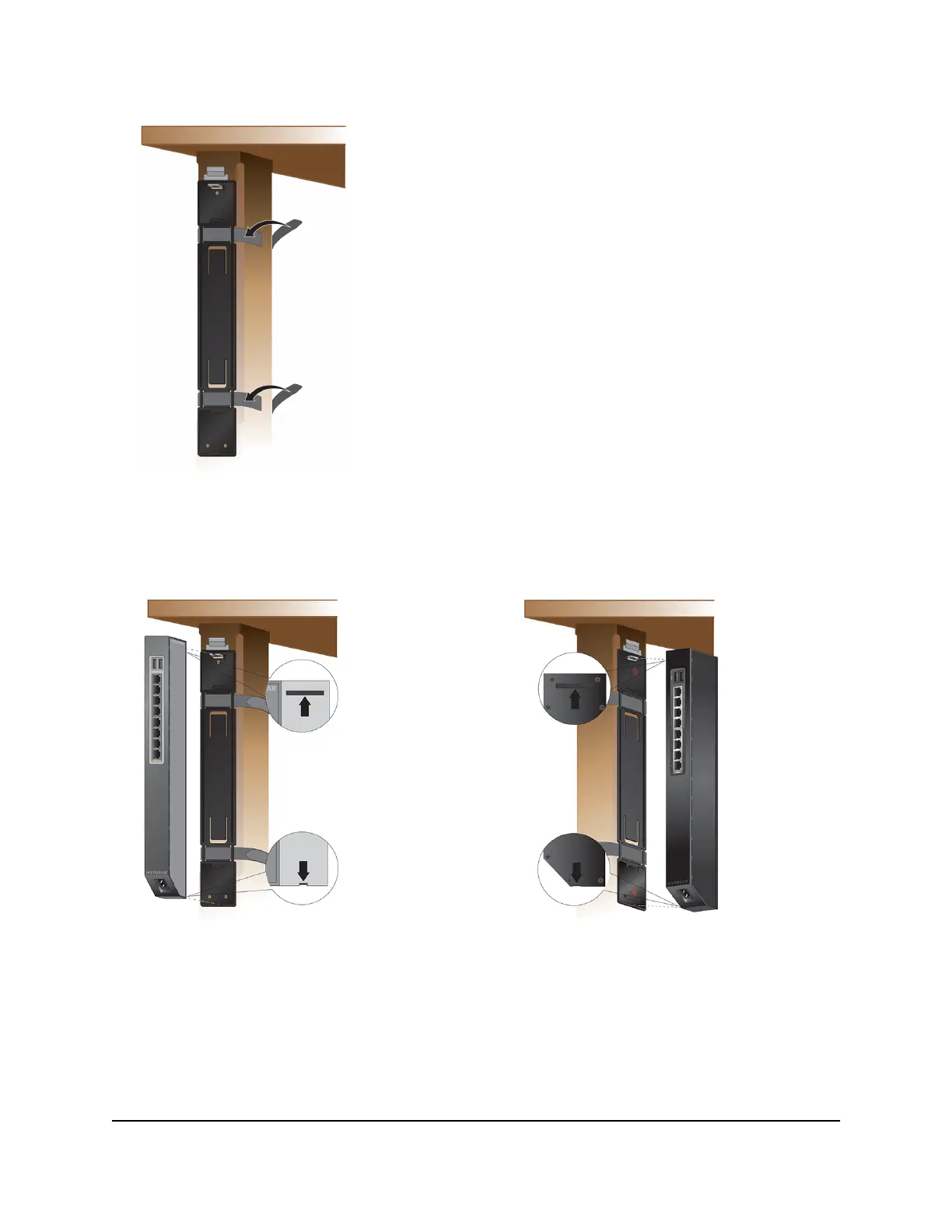

Line up the back of the switch (see the left figure) or the bottom of the switch (see
the right figure) with the bracket.
5. Insert the bracket’s lower locking tab and hook into the lower notch on the back or
bottom of the switch.
6. Insert the bracket’s upper locking tab and hook into the upper notch on the back or
bottom of the switch.
7. Click-attach the switch to the bracket.
