Hardware Setup
9
N150 Wireless ADSL2+ Modem Router DGN1000v3
Hardware Features
Before you cable your modem router, take a moment to become familiar with the front panel,
back panel, and label. Pay particular attention to the LEDs on the front panel.
Front Panel
WPS LED
WiFi LED
Internet LED
DSL LED
LAN port LEDs (1–4)
Power LED
WPS button
WiFi On/Off button

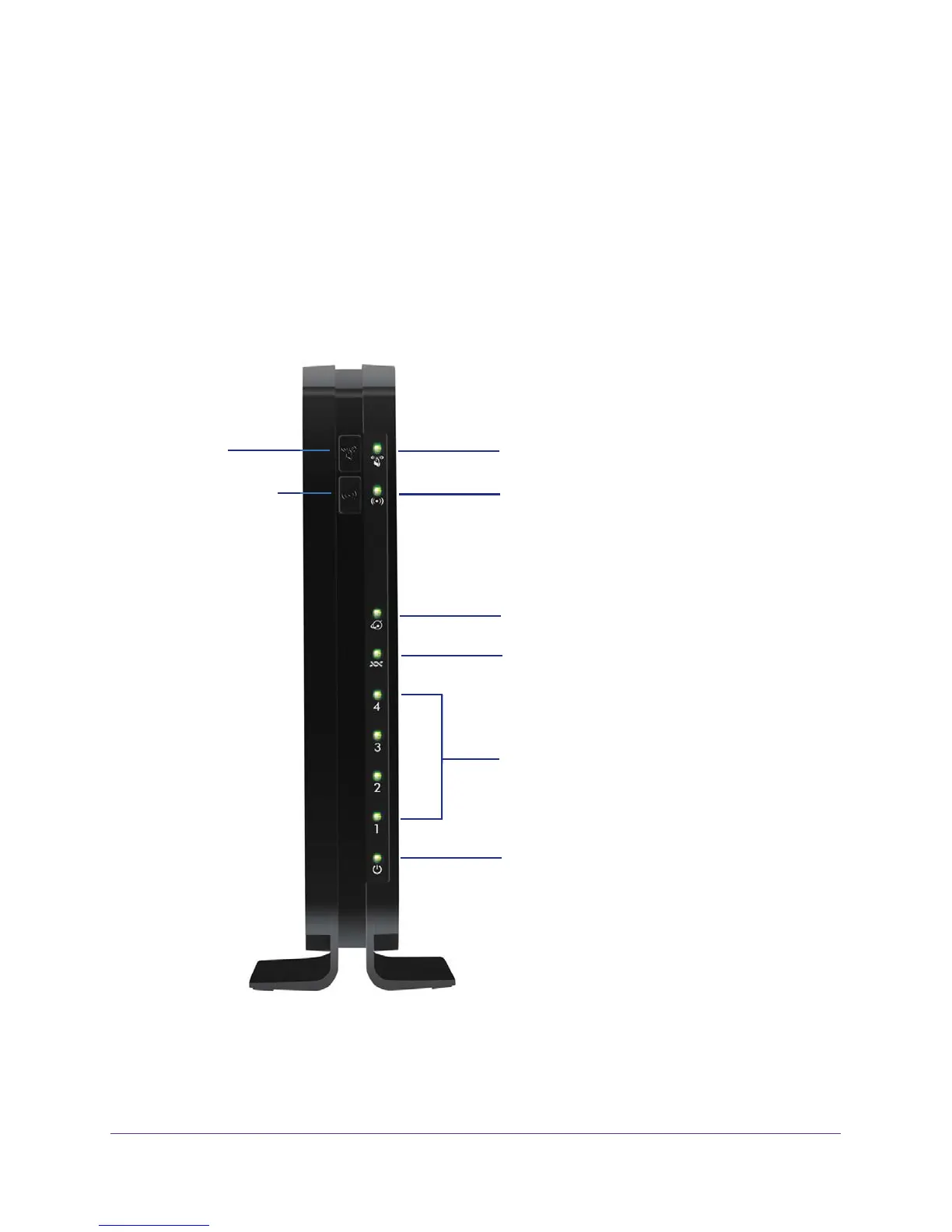

The modem router front panel has the status LEDs that are shown in the following figure. The
WiFi and WPS buttons are to the left of the WiFi and WPS status LEDs.
Figure 2. Front panel LEDs and buttons
