The following image shows another way to connect your Orbi satellites to your Orbi
router to create an Ethernet backhaul connection.

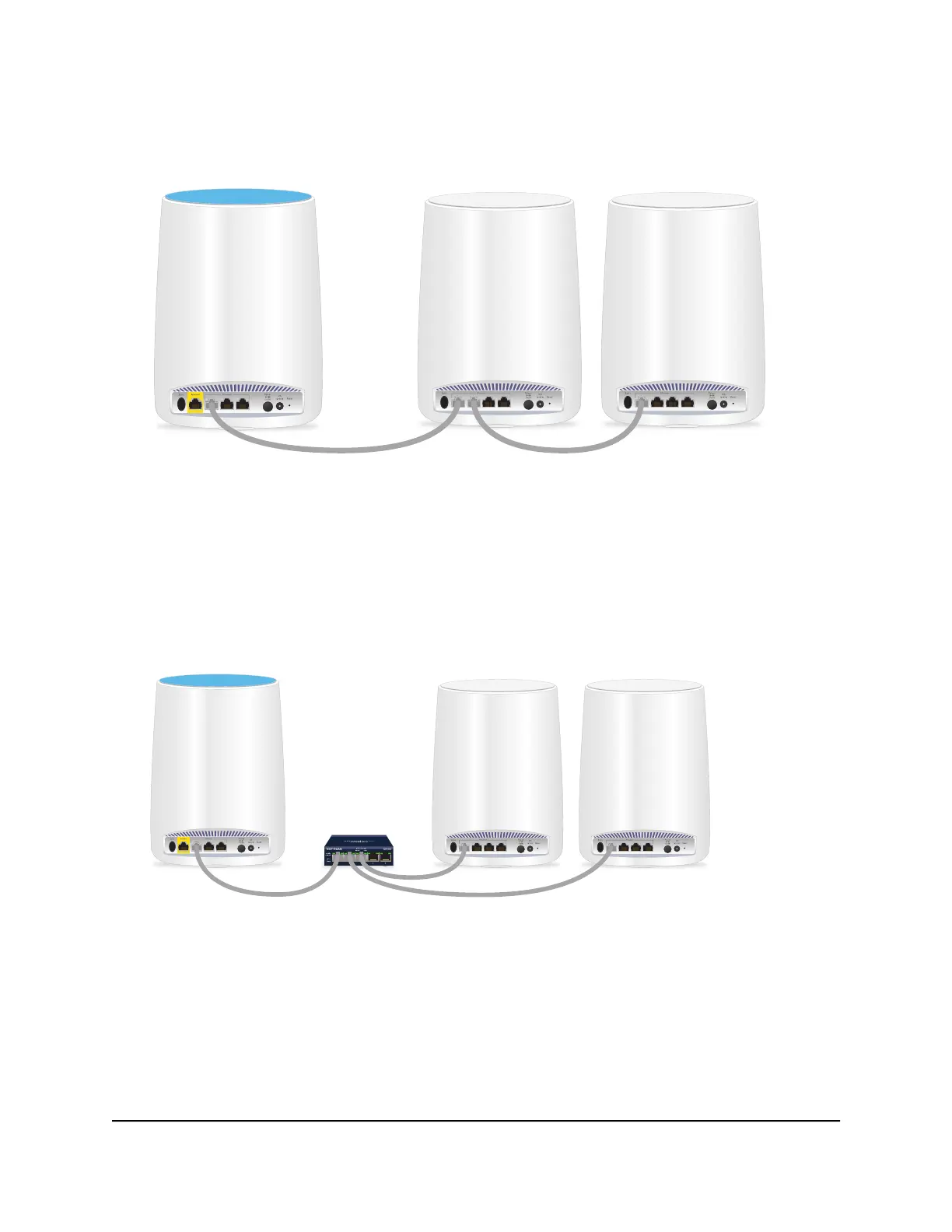

Figure 2. Satellite 1 connected to router and satellite 2 connected to satellite 1
The following image shows how to connect your Orbi satellites and your Orbi router to
an Ethernet switch.
Note: The Ethernet ports on the Orbi router and satellite are rated at 1 Gbps. Make
sure the switch ports are 1 Gbps or faster.
Figure 3. Ethernet backhaul connection using a switch
User Manual15Overview
