System Planning and Deployment Scenarios
44
ProSAFE Wireless Controller
High-Level Deployment Scenarios
This section provides three deployment scenarios to illustrate how the wireless controller can
function in various network configurations:
• Scenario Example 1: Network With Single VLAN
• Scenario Example 2: Advanced Network With VLANs and SSIDs
• Scenario Example 3: Advanced Network With Redundancy
Scenario Example 1: Network With Single VLAN
The following sample scenario consists of a simple network with a wireless controller, PoE
switch, Layer 3 switch or router, and access points.

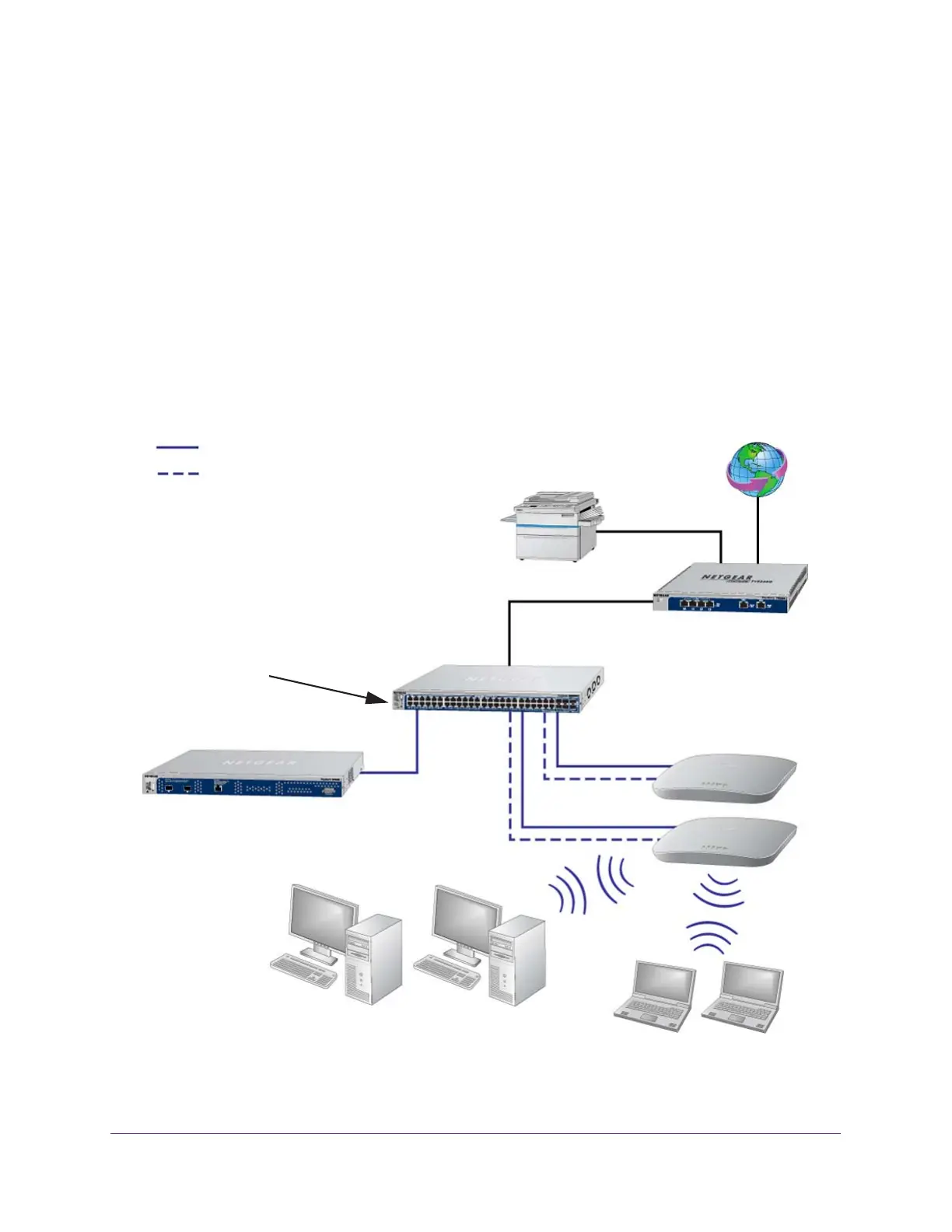

Figure 14. Example: Basic network with a single VLAN
Management VLAN Ethernet traffic
All client Ethernet traffic
Network printer
Internet
Backend L3 switch
or router
PoE switch
Deploy the wireless controller
on a trunk port if you use the
internal DHCP server
Wireless controller
Access point
WNDAP360
Finance
computer
Marketing
computer
Employee
computer
Employee
computer
