NETGEAR R6300 Guide

5
The fourth step is configuring the R6300.
1. Open a web browser on any device connected to the router. The browser is hijacked to the
installation page. Please follow the installation steps.
2. If the browser is not hijacked, check connection to the router or alternatively login directly to
the router by going to http://routerlogin.net.

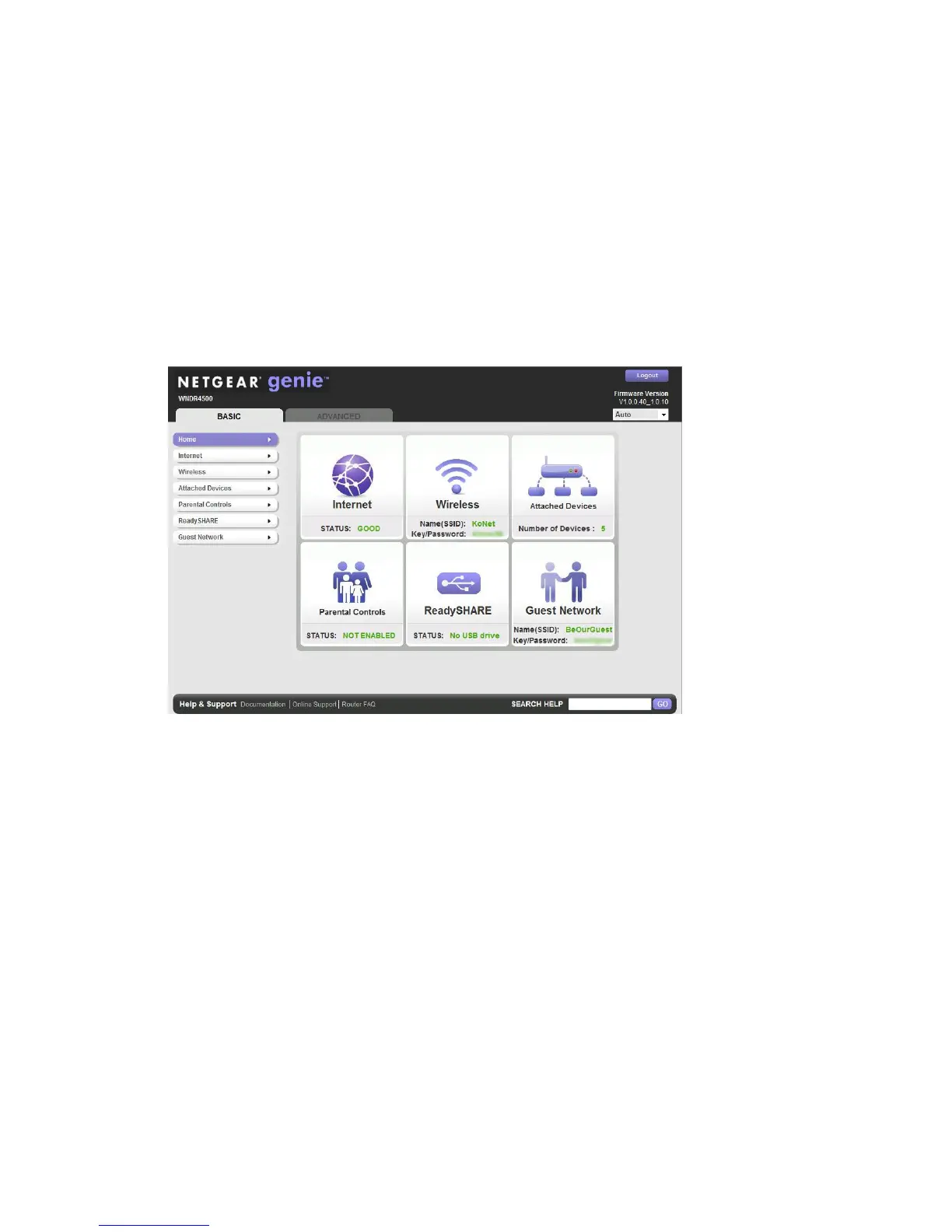

3. Enter the user name admin and the default password (the word password). You’ll then see the
home screen, from which you can customize the R6300’s wireless networks and advanced
features.
4. Wireless Speed and Range
The R6300 delivers speeds up to 450 Mbps in the 2.4 GHz band and 1300 Mbps in the 5 GHz band. Six
highly sensitive internal antennas are connected to the highest-power radio amplifiers allowed by
regulations: transmit power of +28.5 dBm in both the 2.4 GHz and 5 GHz bands (+27 dBM at 5 GHz in
Europe) and receive sensitivity of -99 dBm at 1 Mbps in the 2.4 GHz band and -96 dBm at 6 Mbps in the
5 GHz band.
Reviewers will receive two units—one to set up as a router, and the other to set up as a bridge. For
reviewers, the units will be preconfigured. There is also a separate note that explains how to configure
the R6300 as a bridge. This feature is accessed through the Advanced Wireless Settings page of the
router GUI (Advanced tab > Advanced Setup > Wireless Settings).
The result is more WiFi range – and more wireless speed at any given distance – than top-of-the-line
home routers available today.

NETGEAR R6300 Specifications

Ports & interfaces

USB ports	2 USB 2.0 ports
Ethernet ports	5 Gigabit Ethernet ports
WAN ports	1 WAN port

System Memory

flash memory	128 MB
RAM	128 MB
memory type	flash and RAM

Weight and Dimensions

dimensions	205 x 255 x 77 mm
weight	654 g
