Front and Side Panels

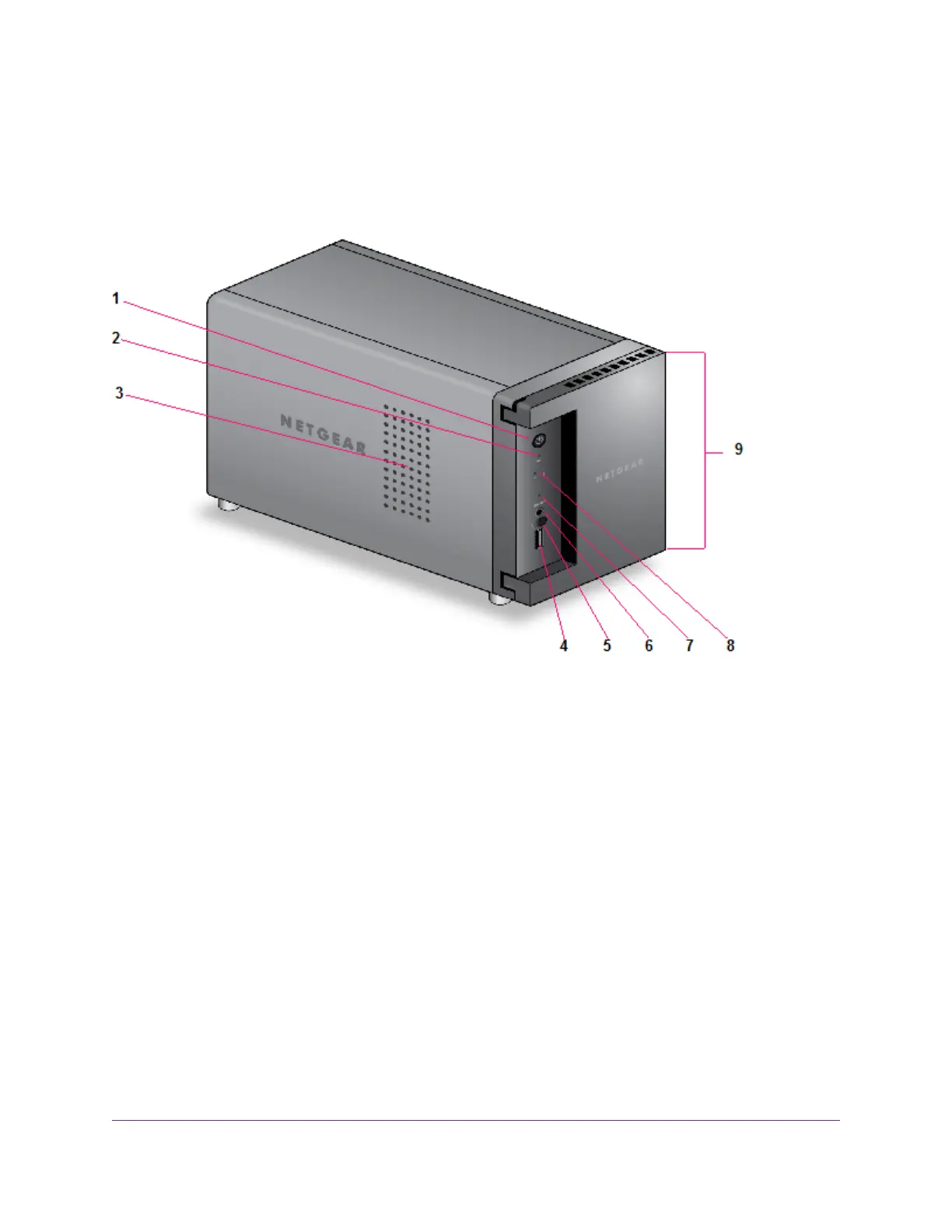

The following figure shows the front and side panels of the ReadyNAS 312.
Figure 21. ReadyNAS 312 front and side panels
1. Power button and LED
2. Disk activity LED
3. Exhaust vent
4. USB 2.0 port
5. Infrared remote receiver
6. Backup button
7. USB and Backup status LED
8. Disk 1 and Disk 2 LEDs
9. Drive bay door
Drive Bays
The following figure shows the drive bays of the ReadyNAS 312.
