Rear Panel
The following figure shows the rear panel of the ReadyNAS 422.

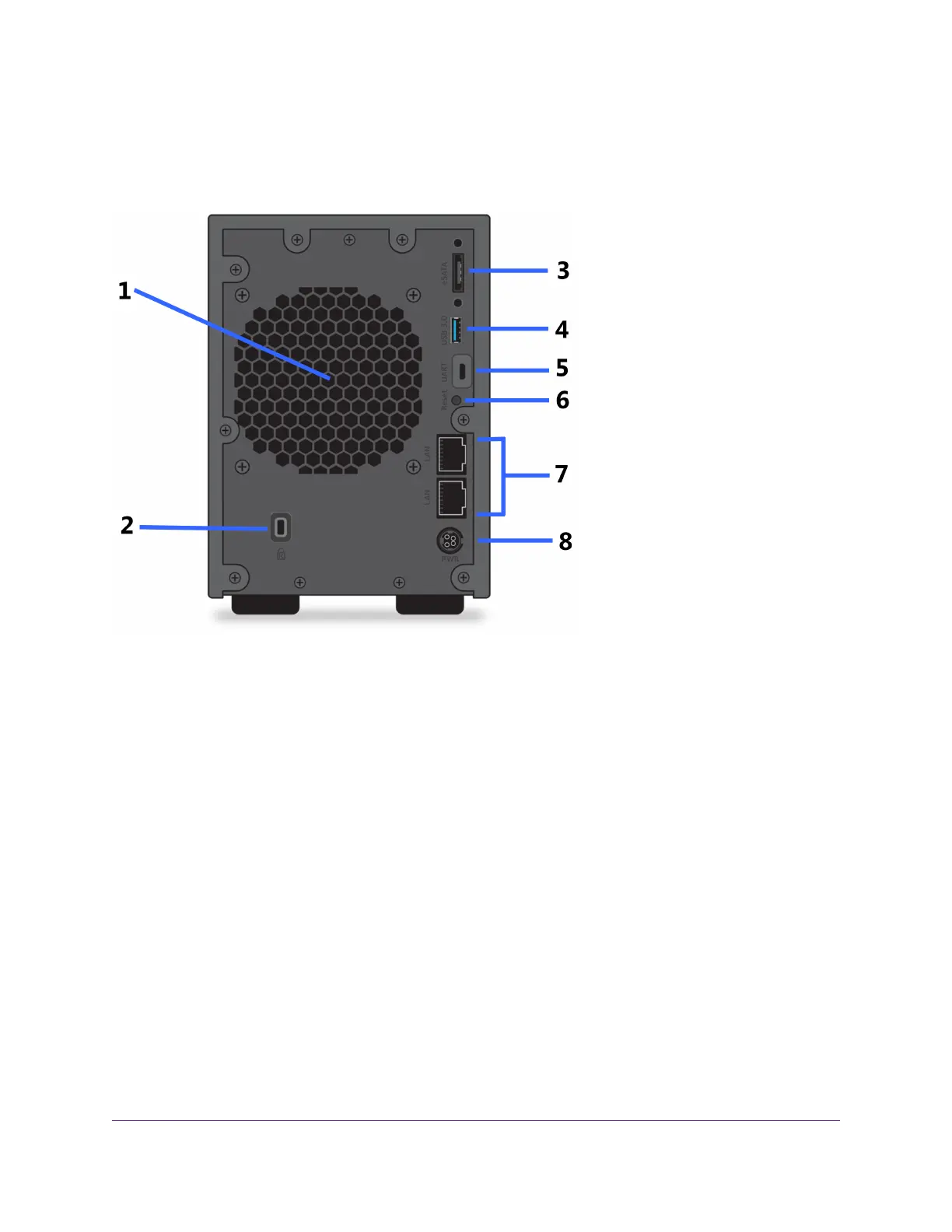

Figure 32. Rear panel ReadyNAS 422
1. Exhaust fan
2. Kensington lock
3. eSATA port
4. USB 3.0 port
5. Micro USB console connector (marked as UART)
6. Reset button
7. 1 GbE LAN ports with LED status indicators
8. Power cable socket
