Front and Side Panels

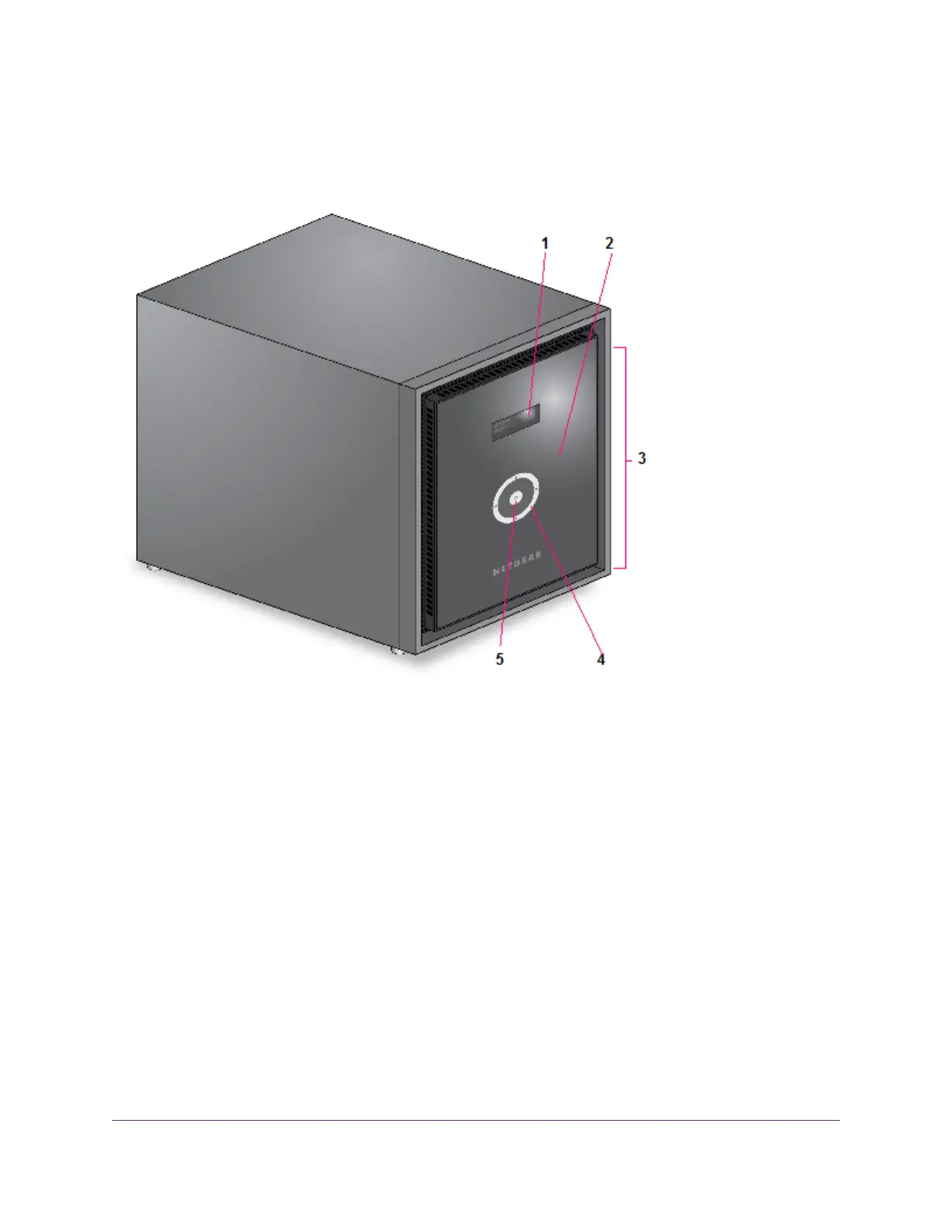

The following figure shows the front and side panels of the ReadyNAS 716X.
Figure 56. ReadyNAS 716X front and side panels
1. Status and menu display screen
2. Infrared remote receiver
3. Drive bay door
4. Touch pad and backlight
5. OK button
Drive Bays
The following figure shows the drive bays of ReadyNAS 716X.
NETGEAR ReadyNAS 716X
