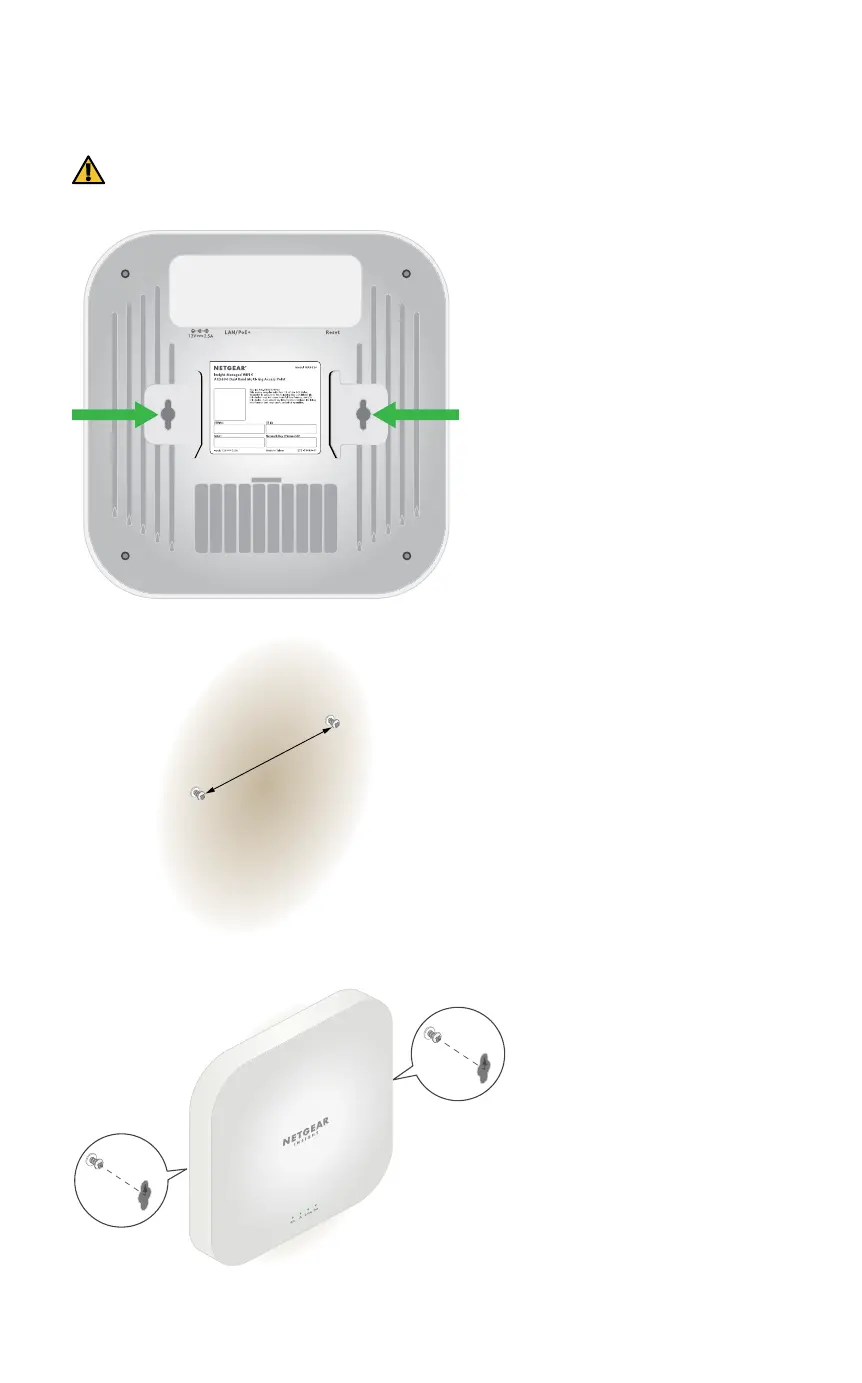

1. Mark the wall where you
want to insert the provided
anchors and screws, which
must be 4.33 in. (110 mm)
apart, and insert the anchors
and screws.
Leave about 0.25 in. (6 mm)
of each screw protruding
from the wall so that you can
insert the screws into the
holes on the bottom of the
A P.
4.33 in. (110 mm)
The bottom of the AP
includes two holes that let
you mount the AP on two
screws inserted in a wall.
Mount to a solid wall
CAUTION: Make sure that the wall is not damaged. For example, water damage
can destroy a drywall.
2. Line up the holes on the
bottom of the AP with
the screws in the wall and
mount the AP to the wall.
To Next Page
