ADSL2+ Modem Router User Manual
5
phone jack, the power outlet, and your computer or network. Before cable connection, turn off
the power supply and keep your hands dry. You can follow the steps below to install it.

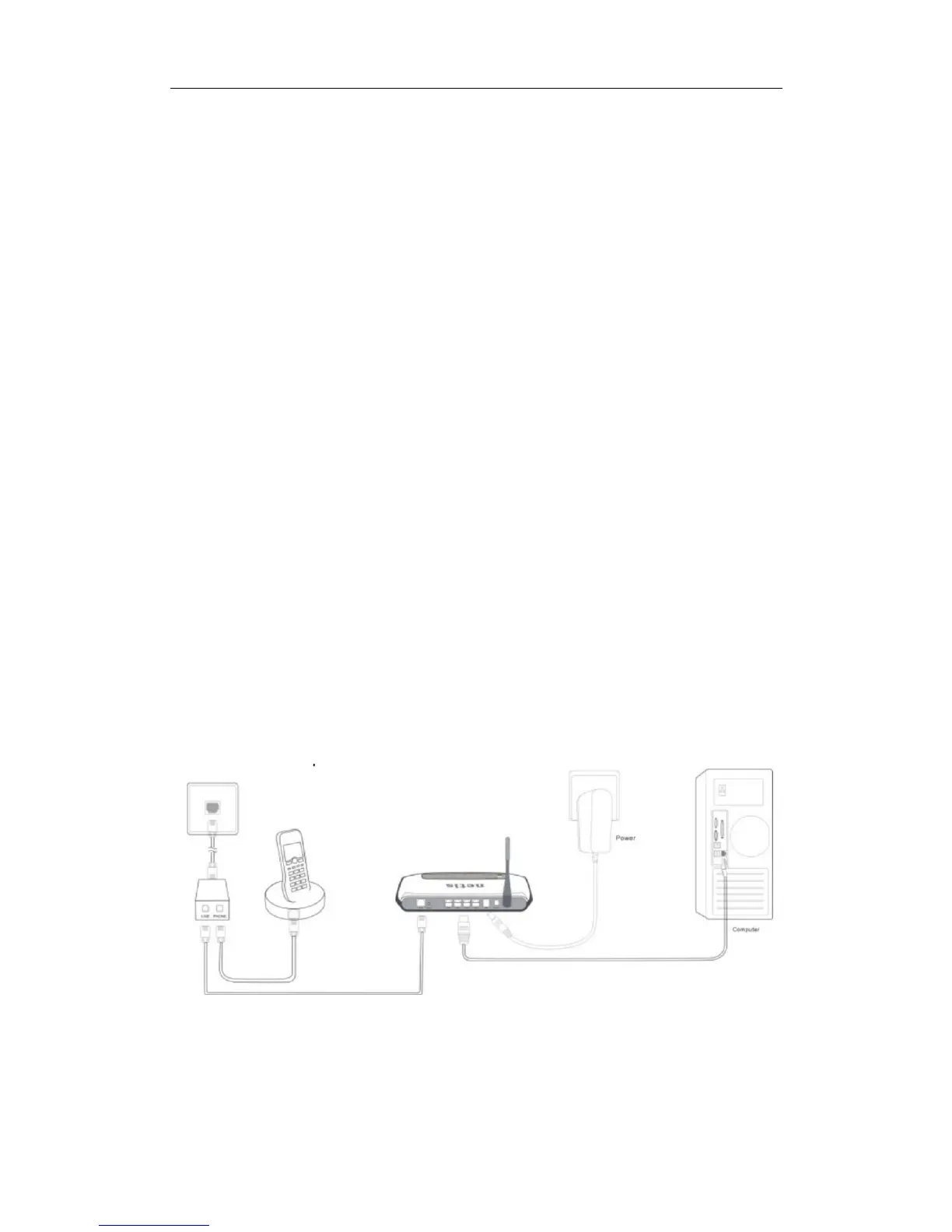

Step 1: Connect the ADSL cable.
Method one: Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear panel of
DL4311, and insert the other end into the wall socket.
Method two: You can use a separate splitter. External splitter can divide digital data and voice,
and then you can access internet and make calls at the same time. The external splitter has three
ports:
• LINE: Connect to the wall jack.
• PHONE: Connect to the phone sets.
• MODEM: Connect to the ADSL port of DL4311. Plug one end of the twisted-pair ADSL line into
the ADSL port on the rear panel of DL4311. Connect the other end to the MODEM port of the
external splitter.
Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s
Ethernet port or a regular hub/switch port, and the other end to the LAN port on the DL4311.
Step 3: Attach the power adapter. Connect the AC power adapter to the PWR connector on the
rear of the device and plug in the adapter to a wall outlet or power extension.
Step 4: Turn on your computers and power on the Modem Router.
Note:
1) If you currently use a modem, disconnect it now. The Modem Router will replace your old
modem.
