Netis SEK204 User Manual

5. Hardware Installation
There are three steps to install the wireless IP camera & NVR security kit:
Step 1: Well locate the wireless NVR
Wireless NVR is suggested to be located in the center of monitoring regional. Barrier
should be avoided between wireless IP camera and wireless NVR, as the signal
coverage is easily affected by the physical properties of the barrier and surrounding.
Note: When IP cameras working synchronously, the distance should be kept within 60
meters without barrier, 30 meters with a wall, 15 meters with two walls.(for installation
reference)

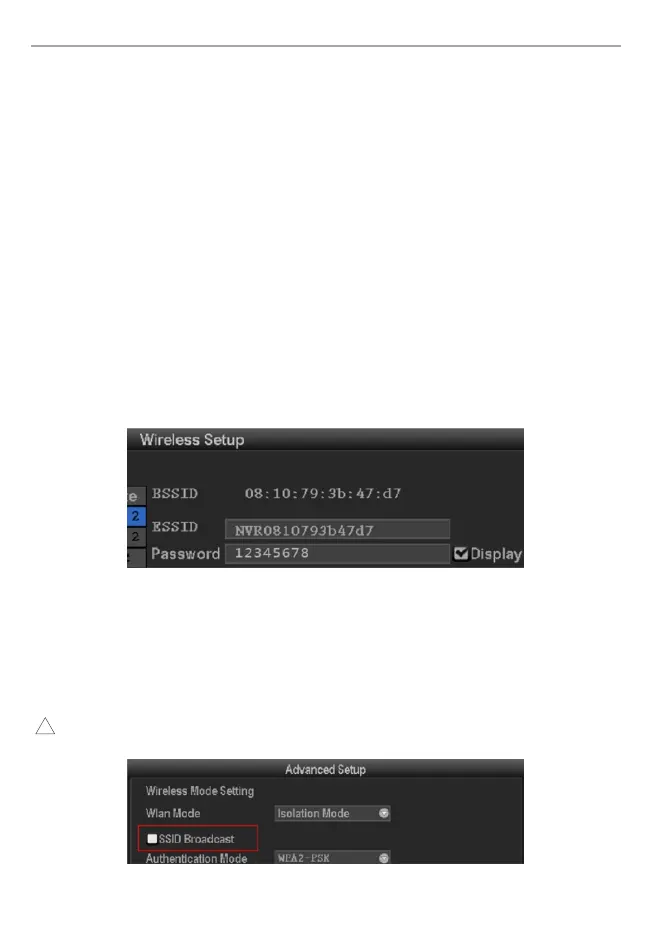

Step 2: Testing the effective coverage of wireless signal
Please select “Main Menu” -> “System setup” -> “Network setup” -> “Wireless” ->
“Wireless setup”, check the wireless SSID and Password, then connect the Wi-Fi with
your mobile phone. More than two bars signal will be better under the effective
coverage.
Note: While testing the signal strength, please wait for more than 1 minute to ensure
the signal is stably.
netis 4CH Wireless IP Camera & NVR Security Kit Quick Installation Guide
Step 3: Install and fasten wireless IP camera
Install the wireless IP camera in the location under the effective Wi-Fi coverage, and
connect to the provided 12V/1A power adapter. The video of will be shown on the
display device after 1 minute.
Step 4: Set the angle of the wireless IP camera. The installation is finished.
Note: For security, please forbid the SSID broadcast after the installation is finished.
!
11

Netis SEK204 Specifications

General

Sensor type	CMOS
Heat function	No
Camera included	Yes
Camera interface	RJ-45
Camera resolution	1280 x 720 pixels
Number of cameras	4
Rotating direction	Vertical
Built-in microphone	-
Optical sensor size	1/3 \
Placement supported	Indoor/outdoor
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.1 lx
Night vision distance	15 m
Supported resolutions	1280 x 720, 640 x 480, 320 x 240
Connectivity technology	Wireless
Number of illumination LEDs	36
Surveillance camera form factor	Bullet
HDD interface	Serial ATA
LED indicators	HDD, Power
Channels quantity	- channels
Storage media type	HDD
Maximum HDD capacity	4000 GB
Video capturing speed	30 fps
Total storage capacity	1000 GB
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	3
Operating system installed	Linux Embedded
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Playback resolutions supported	1280 x 720
Ethernet interface type	Fast Ethernet
Certification	FCC, CE
Product color	Black, White
Supported video modes	960p
Video compression formats	H.264
Display diagonal	- \
Current	1 A
Input voltage	12 V
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	403 mm
Package width	200 mm
Package height	305 mm
Package weight	3500 g
Package type	Box
Cables included	LAN (RJ-45)

Weight and Dimensions

Camera depth	205 mm
Camera width	70 mm
Camera height	55 mm
Recorder depth	257 mm
Recorder width	210 mm
Recorder height	45 mm
