Netis SEK204 User Manual

ON OFF
Power
4
3. Typical Application
Please check the application according to your network environment, and follow the
corresponding steps for the application.

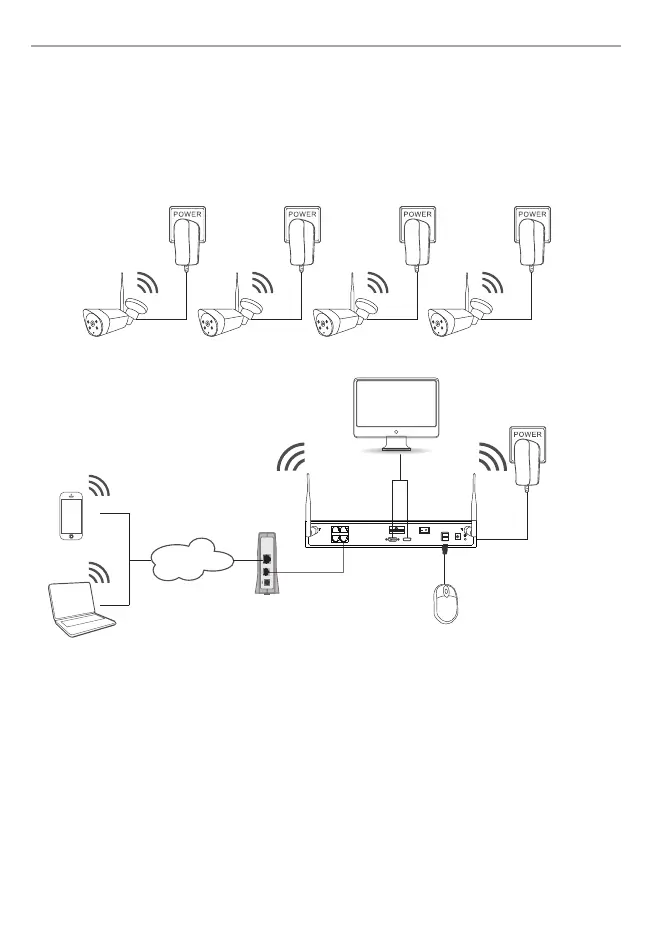

Typical Application and hardware connection as follows:
1) Connect the provided USB Mouse to the USB Interface.
2) Connect your display device to the VGA/HDMI Interface via VGA/HDMI cable.
3) Connect the WAN port of Wireless NVR to an xDSL/Cable/Fiber modem or uplink
Ethernet port with an Ethernet cable.
Note: There is no need to connect to the Internet for local use, if you want to access
remotely you should connect it.
4) Plug the provided 12V/3A Power Adapter into the PWR port of wireless NVR and
the other end to a stand electrical wall socket.
5) Plug the provided 12V/1A Power Adapter into the PWR port of IP Camera and the
other end to a stand electrical wall socket.
6) Then go to “4. Setup Wizard”, to configure them.
netis 4CH Wireless IP Camera & NVR Security Kit Quick Installation Guide
Internet
Display Device
LAN1 LAN3
LAN2 WAN
CAUTION
VGA
HD OUTPUT
USB DC12V
Computer
Modem
Wireless NVR
USB Mouse
12V/3A Power Adapter,
IP Camera
12V/1A Power Adapter
Smartphone

Netis SEK204 Specifications

General

Sensor type	CMOS
Heat function	No
Camera included	Yes
Camera interface	RJ-45
Camera resolution	1280 x 720 pixels
Number of cameras	4
Rotating direction	Vertical
Built-in microphone	-
Optical sensor size	1/3 \
Placement supported	Indoor/outdoor
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.1 lx
Night vision distance	15 m
Supported resolutions	1280 x 720, 640 x 480, 320 x 240
Connectivity technology	Wireless
Number of illumination LEDs	36
Surveillance camera form factor	Bullet
HDD interface	Serial ATA
LED indicators	HDD, Power
Channels quantity	- channels
Storage media type	HDD
Maximum HDD capacity	4000 GB
Video capturing speed	30 fps
Total storage capacity	1000 GB
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	3
Operating system installed	Linux Embedded
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Playback resolutions supported	1280 x 720
Ethernet interface type	Fast Ethernet
Certification	FCC, CE
Product color	Black, White
Supported video modes	960p
Video compression formats	H.264
Display diagonal	- \
Current	1 A
Input voltage	12 V
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	403 mm
Package width	200 mm
Package height	305 mm
Package weight	3500 g
Package type	Box
Cables included	LAN (RJ-45)

Weight and Dimensions

Camera depth	205 mm
Camera width	70 mm
Camera height	55 mm
Recorder depth	257 mm
Recorder width	210 mm
Recorder height	45 mm
