Netis SEK204 User Manual

2

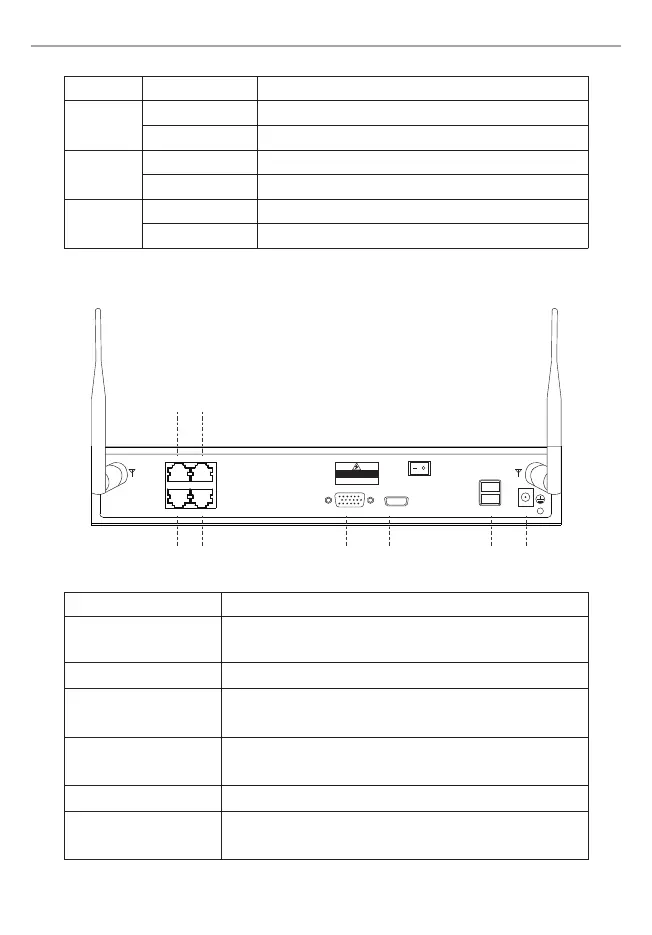

·Rear Panel
Interface
Description
LAN1/LAN2/LAN3
WAN
VGA/HDMI Interface
The LAN port is used to connect to IPC camera or
dock with the IP camera through Ethernet cable.
The WAN port is used to connect to the Internet.
The VGA/HDMI interface is used to connect to
display device.
USB Interface
The USB interface is used to connect to the provided
USB Mouse or backup via U disk, USB mobile HDD etc.
PWR
The PWR port is used to connect to the provided
12V/3A Power Adapter.
netis 4CH Wireless IP Camera & NVR Security Kit Quick Installation Guide
LED Indication
PWR
HDD
SYS
The HDD is working properly.
The device is powered off.
The device is powered on.
There is no HDD or the HDD doesn't formatted.
The device is working properly.
Status
On
Off
Flashing
Off
Flashing
Off
There's a software failure.
LAN 1 LAN3
LAN 2 WAN
CAUTION
VGA
HD OUTPUT
USB DC12V
LAN2 WAN
LAN1 LAN2
VGA HDMI USB
PWR
ON OFF
Power
Power Switch
The power switch is used to power on/off the device.

Netis SEK204 Specifications

General

Sensor type	CMOS
Heat function	No
Camera included	Yes
Camera interface	RJ-45
Camera resolution	1280 x 720 pixels
Number of cameras	4
Rotating direction	Vertical
Built-in microphone	-
Optical sensor size	1/3 \
Placement supported	Indoor/outdoor
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.1 lx
Night vision distance	15 m
Supported resolutions	1280 x 720, 640 x 480, 320 x 240
Connectivity technology	Wireless
Number of illumination LEDs	36
Surveillance camera form factor	Bullet
HDD interface	Serial ATA
LED indicators	HDD, Power
Channels quantity	- channels
Storage media type	HDD
Maximum HDD capacity	4000 GB
Video capturing speed	30 fps
Total storage capacity	1000 GB
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	3
Operating system installed	Linux Embedded
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Playback resolutions supported	1280 x 720
Ethernet interface type	Fast Ethernet
Certification	FCC, CE
Product color	Black, White
Supported video modes	960p
Video compression formats	H.264
Display diagonal	- \
Current	1 A
Input voltage	12 V
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	403 mm
Package width	200 mm
Package height	305 mm
Package weight	3500 g
Package type	Box
Cables included	LAN (RJ-45)

Weight and Dimensions

Camera depth	205 mm
Camera width	70 mm
Camera height	55 mm
Recorder depth	257 mm
Recorder width	210 mm
Recorder height	45 mm
