Netis WF2375 User Manual

2

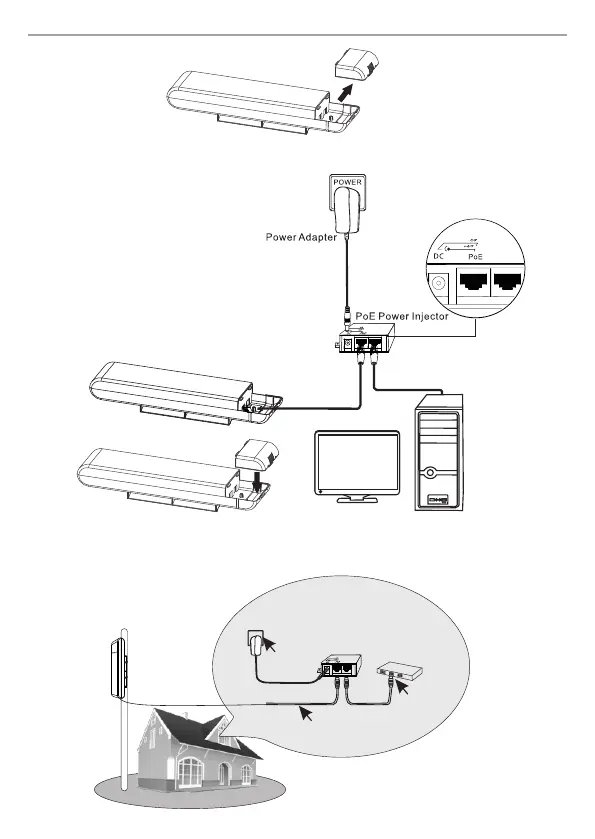

For step A)
For step B) to E)
2. The connection will be similar to the figure below after the above steps are finished.
Computer
TO Switch or PC
Ethernet Cable
Main Electrical Supply
INDOOR
Power Cable
PoE Inj ector
POW ER
netis Wireless High Power Outdoor AP Router Quick Installation Guide
LAN/WAN
LAN/WAN
LAN/WAN
Client

Netis WF2375 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	-98 dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	433 Mbit/s
WLAN data transfer rate (first band)	150 Mbit/s
Transmit power	20 dBmW
Antennas quantity	1
Antenna gain level (max)	11 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
USB port	No
Ethernet LAN (RJ-45) ports	2
Product type	Tabletop router
Product color	White
LED indicators	LAN, Power, WAN
Output current	0.5 A
Output voltage	24 V
Power source type	DC, PoE
Certification	FCC, CE
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 90 %
