3. Install the Body

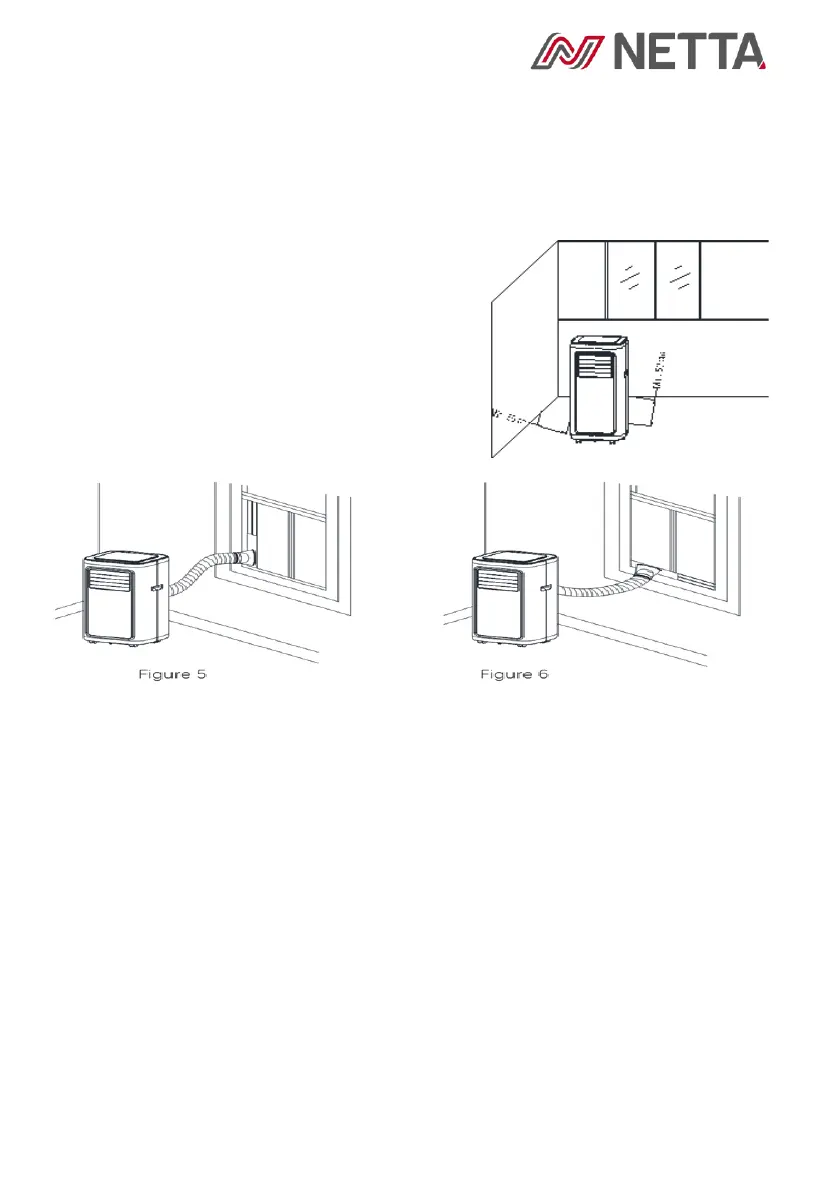

a) Move the machine (with installed pipes and fittings) in front of the
Window, ensuring you leave a distance of at least 50cm between the
body and walls or other objects. (Fig. 4).
b) Elongate the exhaust pipe and snap the flat end of the exhaust pipe
joints into the hole of the window sealing plate assembly (Fig. 5 & 6).
c) The pipe cannot be distorted or turned more than 45°. Keep the
ventilation of the exhaust pipe unblocked.
IMPORTANT!
The length of the exhaust hose shall be 280mm-1500mm. This length is
based on the specifications of the air conditioner. Do not use extension
tubes or replace it with other different hoses as this may cause malfunction.
The exhaust hose must not be blocked, otherwise the unit may overheat.
