Neutronics QUICK DETECT - Step 4 - Attaching the Hose; Step 5 - Attaching the Flow Meter

Manual Part Number:
5-06-7000-62-0
Manual File:
MN-A-0001 Rev. E
Revision Date:

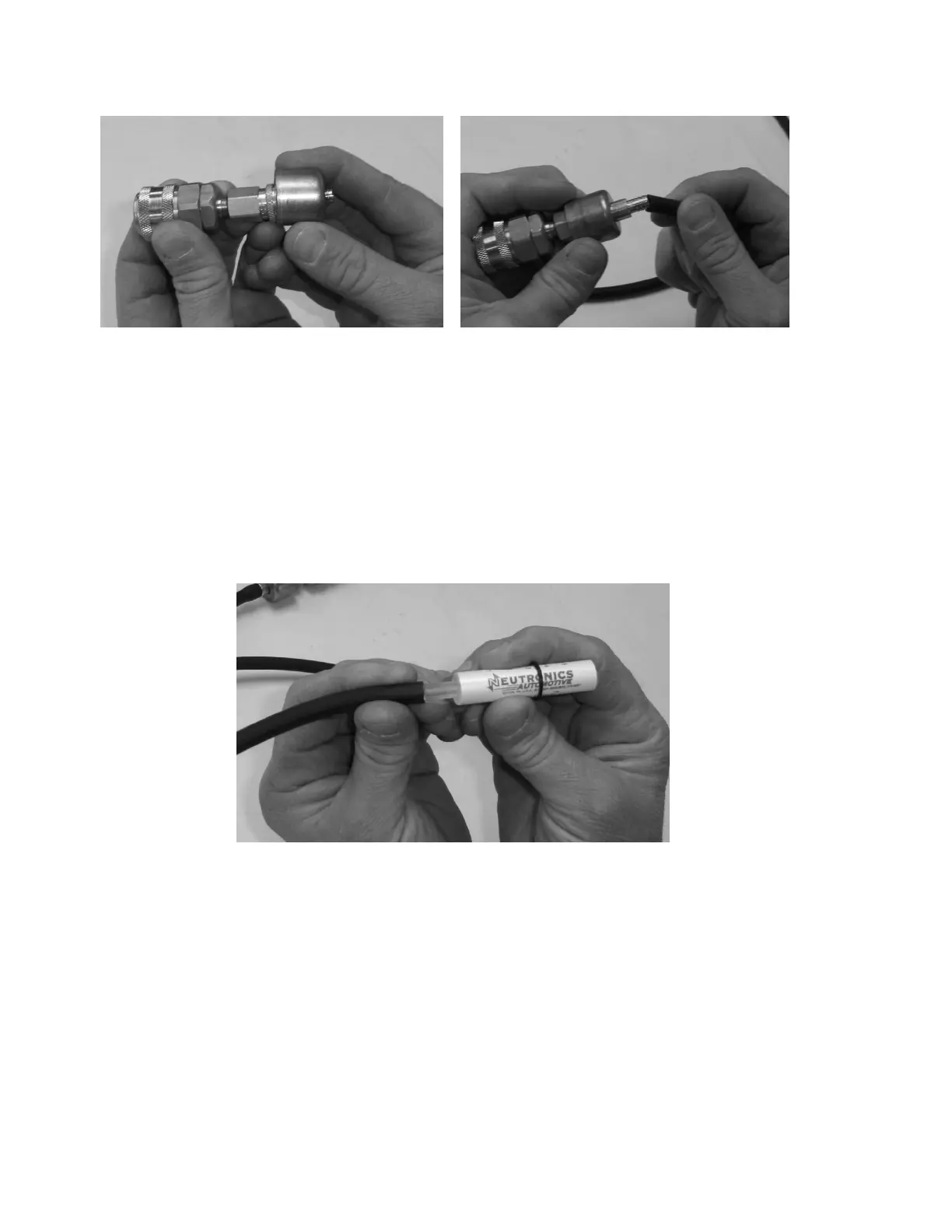

Figure 3 Figure 4
2.5 Step 4 – Attaching the Hose
Attach one end of the hose to the Sensing Plug. (See Figure 4) Make sure the hose is completely
seated over all of the ribs on the end of the plug.
2.6 Step 5 – Attaching the Flow Meter
Attach the Flow Meter to the loose end of the hose. (See Figure 5) Make sure the hose is well
seated on the Flow Meter.
Figure 5
J
une 5, 2006 Page 2-4
