CHAPTER 2 - 667TA ENGINE OVERHAUL
ENGINE REPAIR MANUAL
WATER PUMP
BS06K050

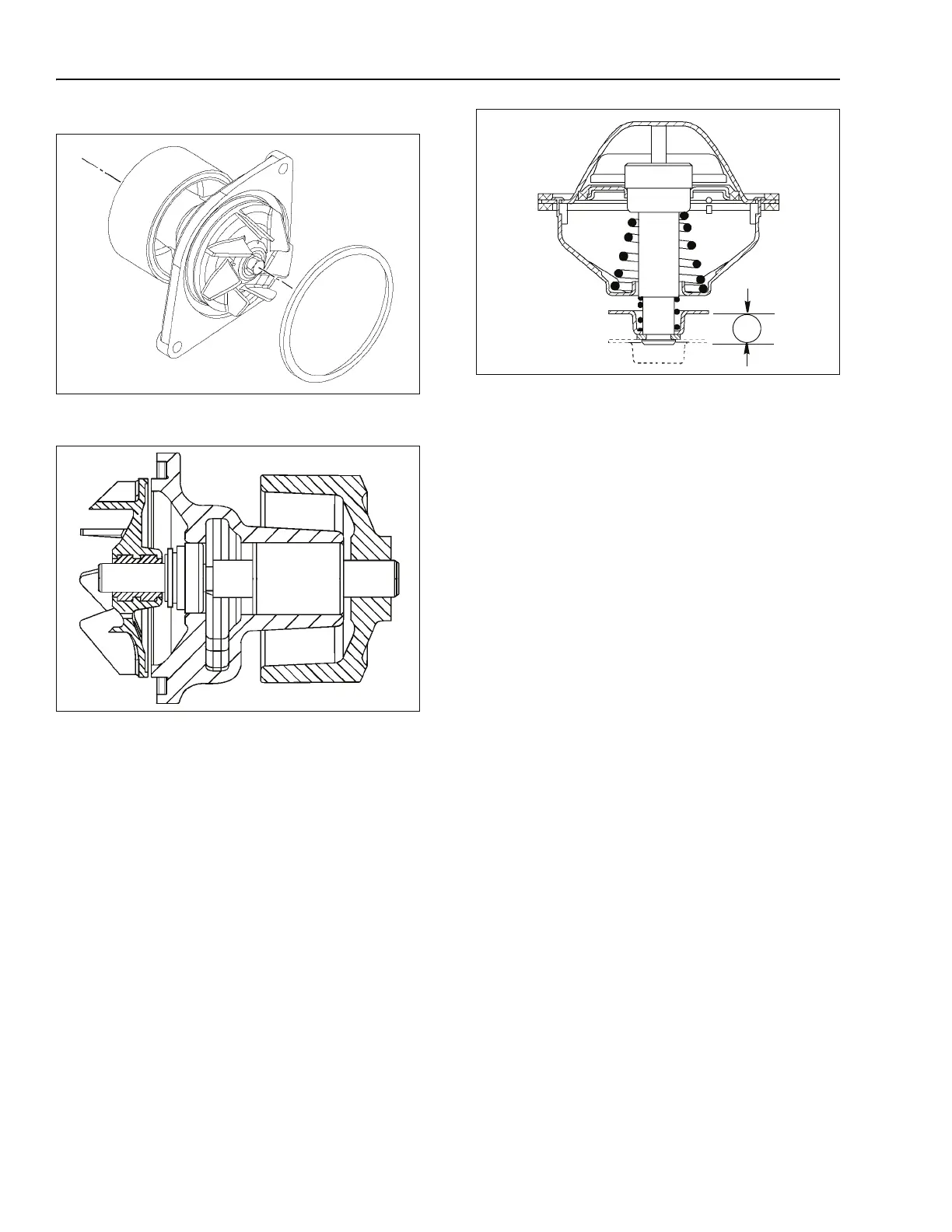

Figure 2-45
WATER PUMP
BS06K051
Figure 2-46
WATER PUMP CROSS SECTION
The water pump is housed in a cavity in the front of
the engine block, and is driven by a Poly-V belt. The
water pump is sealed to the block by a rubber ring.
The engine temperature is controlled by a
thermostat.
BS06K052
Figure 2-47
THERMOSTAT
A. STROKE STARTS AT 96° C (204° F) ≥ 7.5MM (.30 IN).
Thermostat opening for engines:
667TA/EEG, EEC, EBF, EED, EBD= 79 to 83° C
(174 to 181° F).
667TA/EDJ= 83 to 98° C (181 to 208° F).
A
