CRANKSHAFT SENSOR
BS06K075

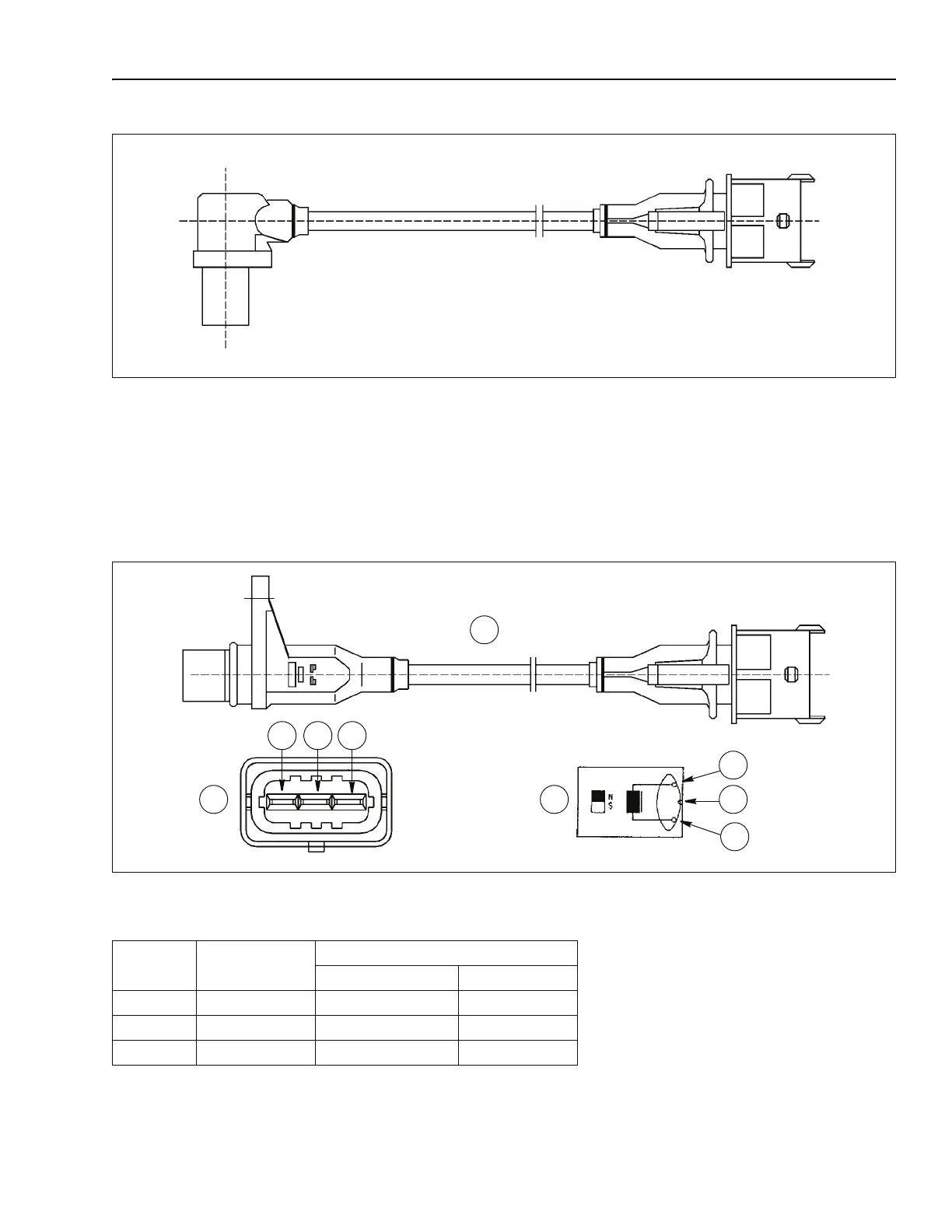

Figure 2-74
CRANKSHAFT SENSOR
The crankshaft sensor is an inductive sensor located
at the front left hand side of the engine. The
crankshaft sensor produces signals obtained from
magnetic flux field through the openings in a phonic
wheel fitted on the crankshaft.
The crankshaft sensor is connected to the
EDC -7 control unit on pins 19C - 23C. The sensor
impedance is approximately 900 ohms.
CAMSHAFT SENSOR
BS06K076
Figure 2-75
A. CAMSHAFT SENSOR B. CONNECTOR C. WIRING DIAGRAM
Reference Description
EDC7UC31 ECU
Camshaft sensor Timing sensor
1
Signal 19C 10C
2
Signal 23C 9C
3
Shield
1
CB
A
2
3
23 1
