Section 21 - Transmission, Drivelines - Chapter 6

21-6-7

Removing the Input Shaft, Countershaft

and Mechanical Front Drive (FWD) / Park Brake Assembly

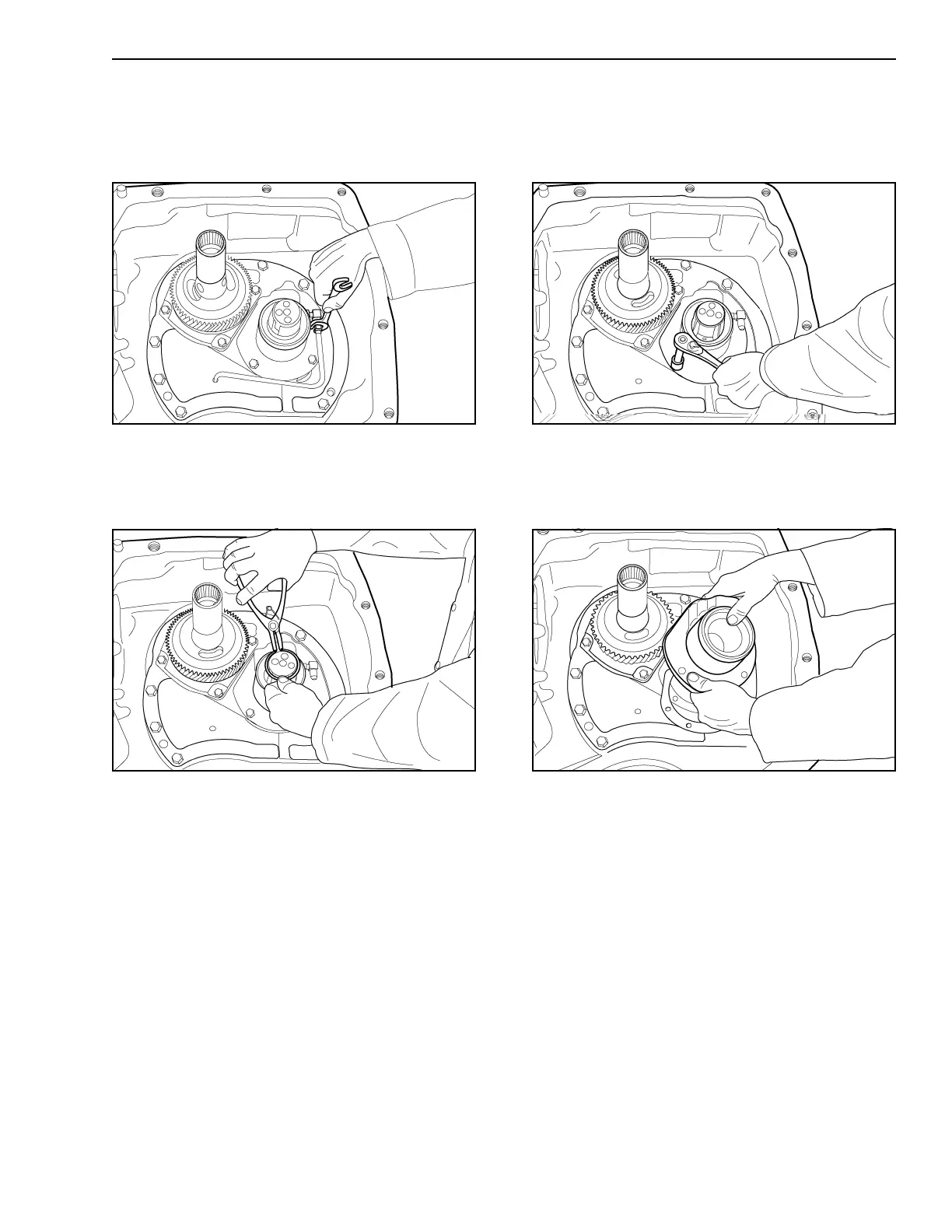

STEP 12

15S33

Remove the lubrication tube from the input shaft

bearing cage.

STEP 13

16S1

Remove the master clutch carrier rear retaining ring

from the input shaft.

STEP 14

16S4

Remove the mounting bolts from the input shaft

bearing cage.

STEP 15

16S9

Remove the input shaft bearing cage.
