New Holland TH Telehandler - Joystick Controls

Joystick Controls

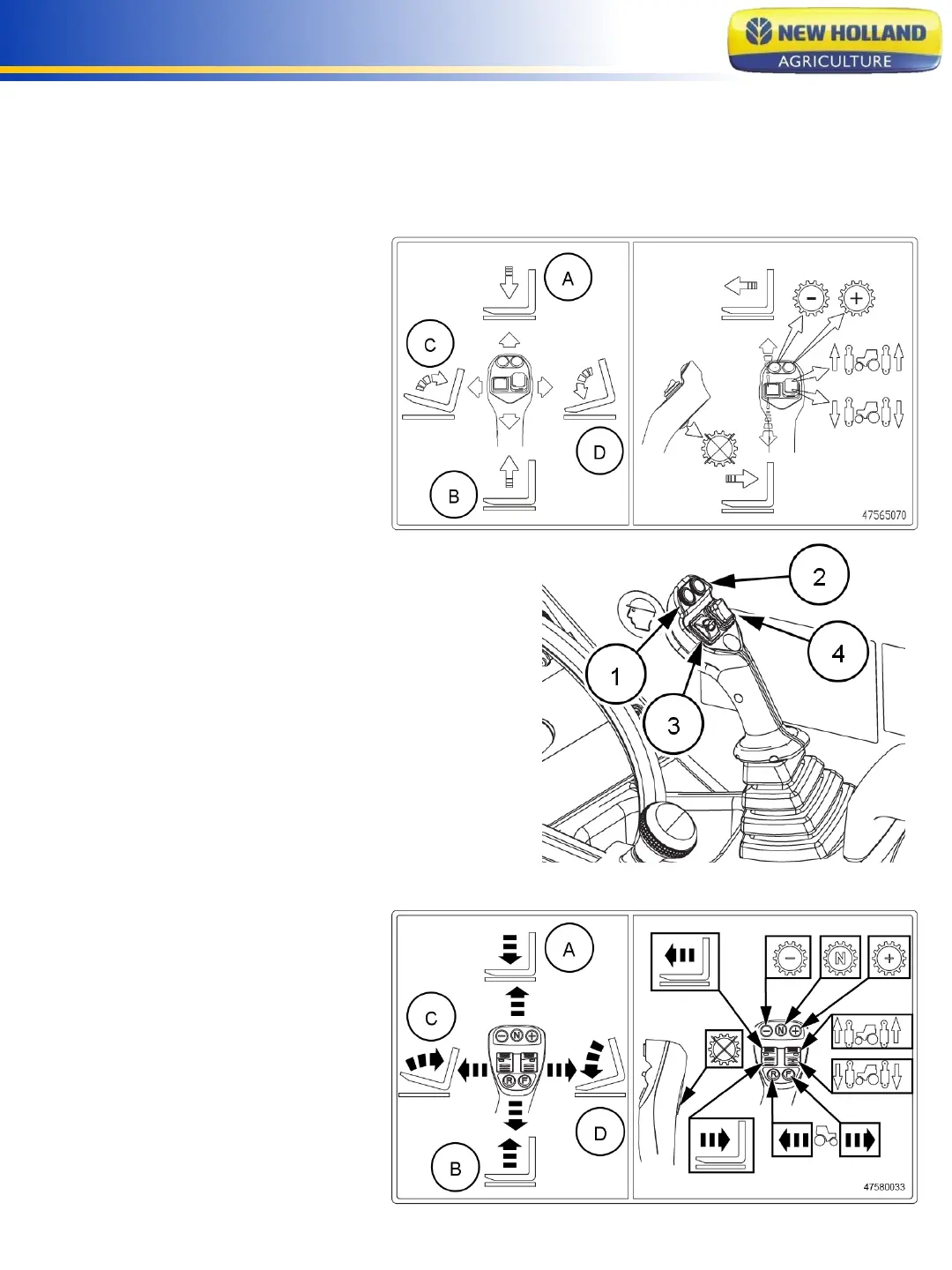

Joystick for S, Classic and Plus
models.
A. Lower the boom
B. Raise the boom
C. Rollback the
loader/attachment
D. Dump the
loader/attachment
• The button (1) allows the operator to
downshift the gear.
• The button (2) allows the operator to
upshift the gear.
• The roller switch (3) allows the
operator to extend or retract the
boom.
• The switch (4) allows the operator to
manage the auxiliary hydraulic
functions.
9
