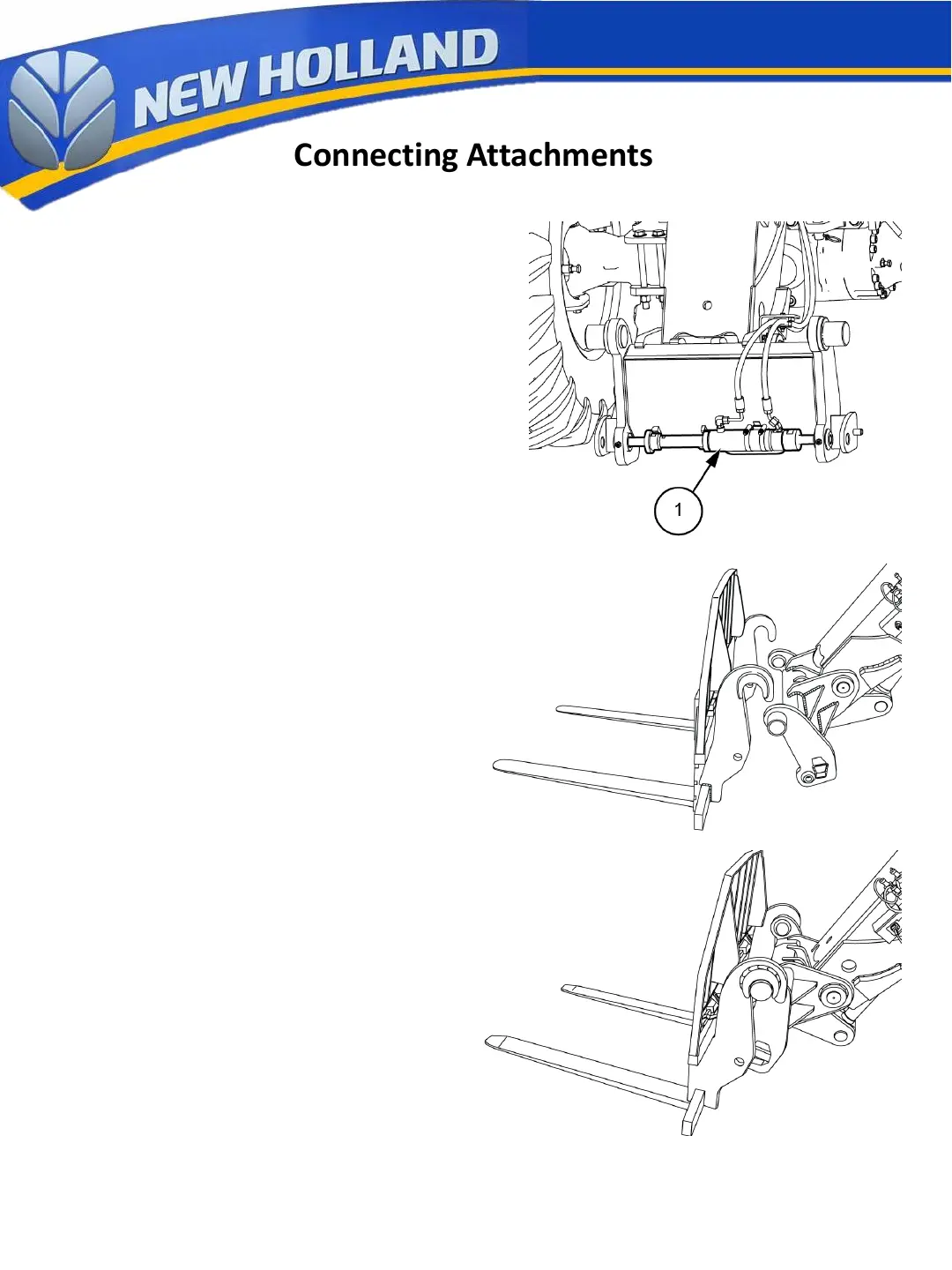

Connecting Attachments
1. Make sure the hydraulic licking pins
are in the unlocked position (1).
2. Lower the boom. Position the
machine so that the boom is parallel
with the rear of the attachment.
3. Rotate the headstock forward.
4. Once lined up with the attachment
lift the boom and tilt back the
headstock.
5. Lock the locking pins via button in
cab.
