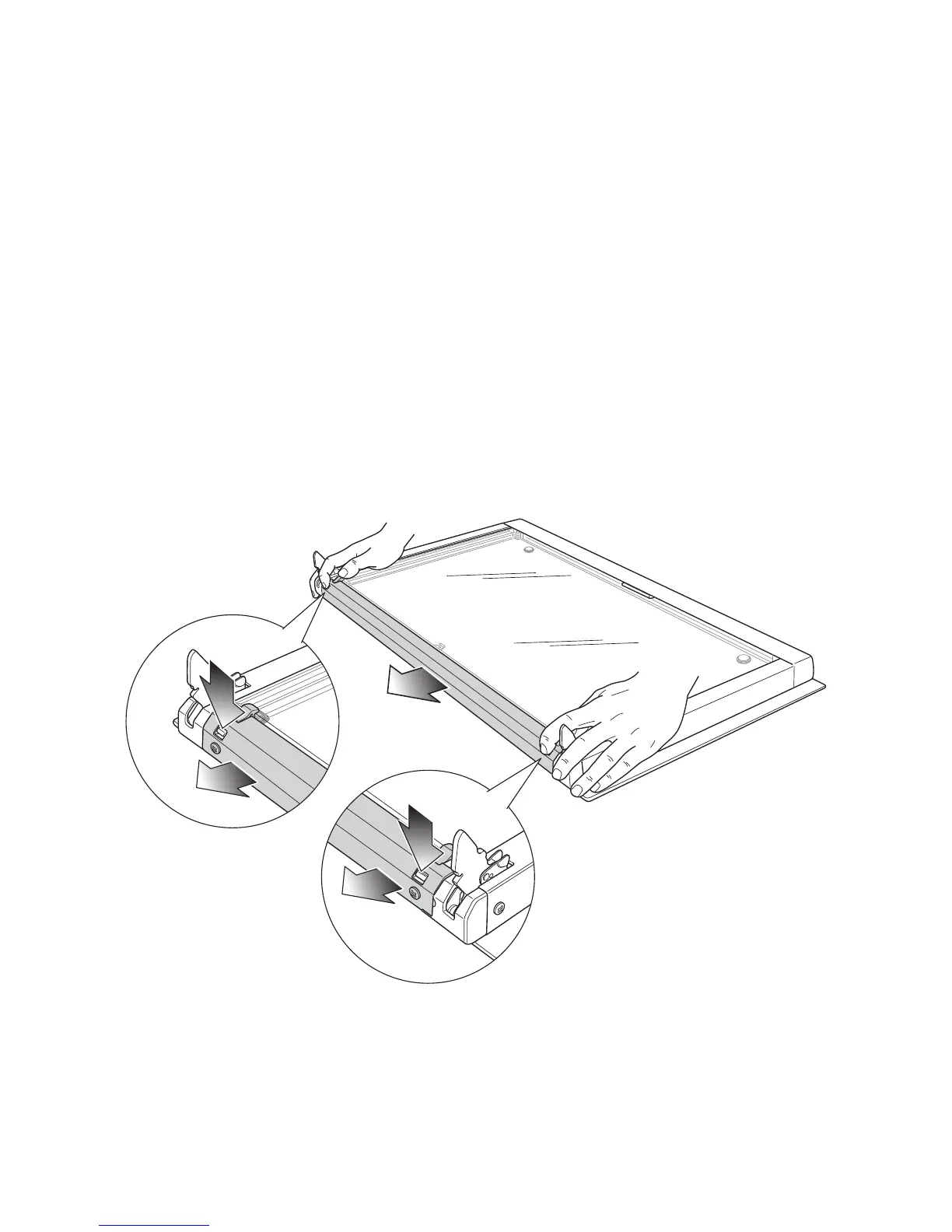

REMOVE THE INNER GLASS RETAINER
1. Remove the oven door and place it on a soft surface.
IMPORTANT: The door shall be placed horizontally as per Fig. 7.15.
2. Press down on both tabs to release the glass retainer.
3. Remove the glass retainer.
Fig. 7.15
REMOVING THE INNER PANE OF GLASS
The oven door is fitted with no. 2 panes:
- no. 1 outside;
- no. 1 inner.
To clean all panes on both sides it is necessary to remove the inner pane as follows:
