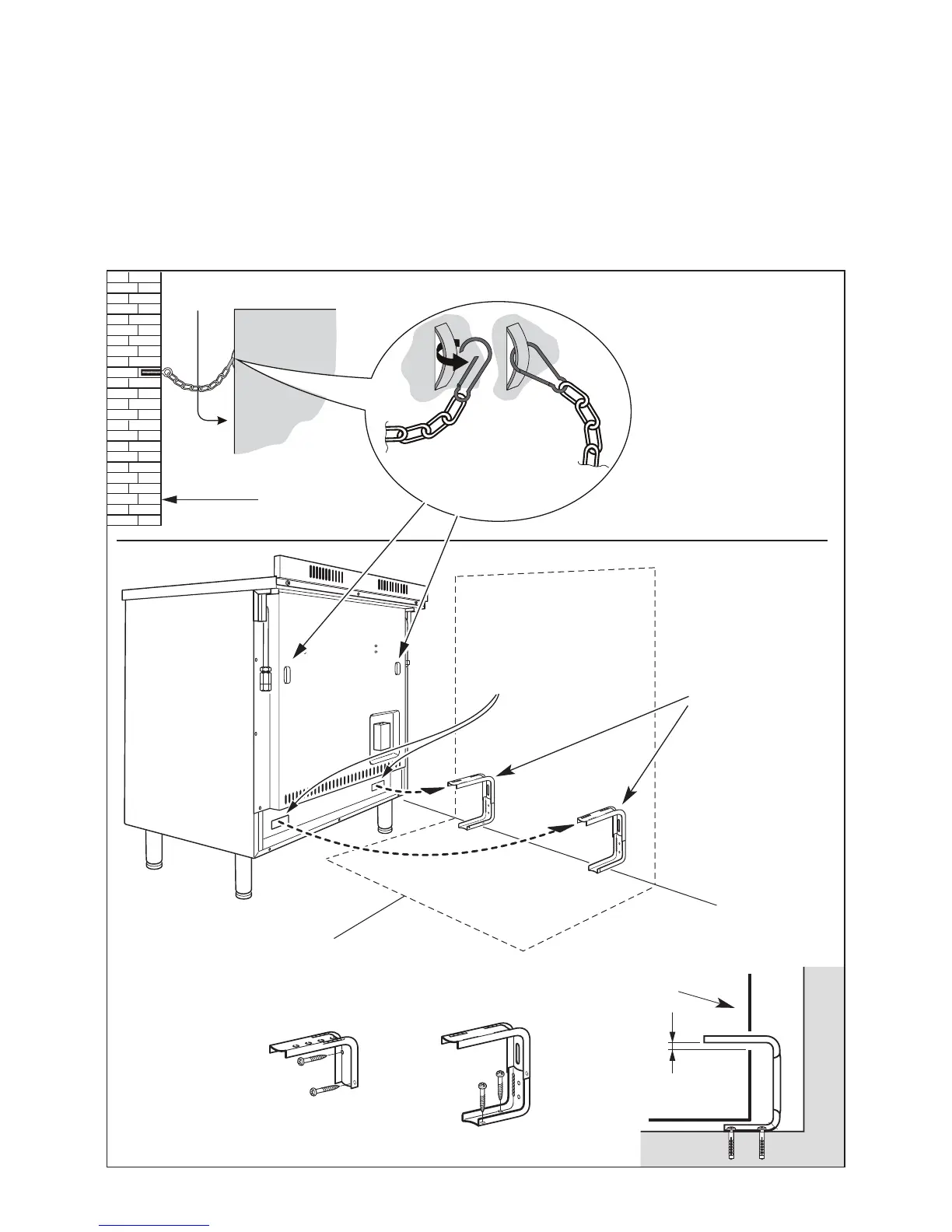

STABILITY DEVICE (STABILITY BRACKET OR STABILITY CHAIN)
Due to varying site and installation requirements, stability devices are not supplied with
this appliance.
It is therefore the responsibility of the suitably qualified and registered installer to ensure
that a suitable stability device for the type of installation is fitted to the appliance as
shown in figures 8.9a or 8.9b below.
This can be purchased from most plumbers merchants and do it yourself (D.I.Y.) shops.
Wall fixing
Back of the cooker
Rear wall
Floor fixing
Bracket - one
stability bracket
only shall be fitted
(at the left or the
right hand side)
Existing slots in the
rear of the cooker (use
the slot which is
located at the left or
the right hand side)
Dotted line showing the
position of cooker when fixed
Outline of cooker backplate
at the engagement slot
Fig. 8.9b
Fig. 8.9a
STABILITY CHAIN
STABILITY BRACKET
