16 17

PART NO. PART NAME QTY

60 LEADWIRE-10GASPADE TERN 1

59 T-BAR-PLASTIC 1

58 SPRING-T-BAR 1

57 HINGE-PLASTIC 1

56 PIN-TILT LEVER 1

55 BRACKET 1

54 PIN-HINGE 1

53 SCREW-CLAMP 2

52 SCREW-TENSION 1

51 TENSION BLOCK-SNAP IN 1

50 LEVER 1

49 BUSHING-HINGE 2

48 NUT-PROP-NYLOC 1

47 WASHER 1

46 PROPELLER 1

45 SEAL SHIELD 1

44 SEAL 1

43 REAR ENDBELL 1

42 BEARING-FLANG 1

41 O-RING 1

40 MOTOR MAGNET 1

39 THRU-BOLT 2

38 O-RING 4

37 WASHER-NYLON 1

36 WASHER-NYLON 1

35 WASHER-STEEL 1

34 RETAINING RING 1

33 PIN-DRIVE 1

32 MOTOR ROTOR 1

31 BEARING-BALL 1

PART NO. PART NAME QTY

30 BRUSH PLATE SCREW 2

29 WASHER-STEEL 2

28 WASHER-STEEL 2

27 BRUSH ASSEMBLY 2

26 SPRING-COMPRESSION 2

25 BRUSH PLATE HOLDER 1

24 SPEED COIL 1

23 FRONT ENDBELL 1

22 TUBE, COMPOSITE 1

21 SCREW 1

20 PLASTIC CONNECTIVE PART 1

19 AXIS 1

18 PIN 1

17 PROTECTIVE SCREW CAP 1

16 SCREW 1

15 KNOB 1

14 PLASTIC FIXER 1

13 SPRING 1

12 SCREW CAP 1

11 SCREW 4

10 CONTROL BASE BOX 1

9 SPEED SWTICH 1

8 ALUMINUM CANNULATION 1

7 TELESCOPING HANDLE 1

6 - 1

5 SCREW 2

4 SCREW 1

3 ELECTRIC BATTERY METER 1

2 CONTROL BOX COVER 1

1 STAINLESS STEEL PANEL 1

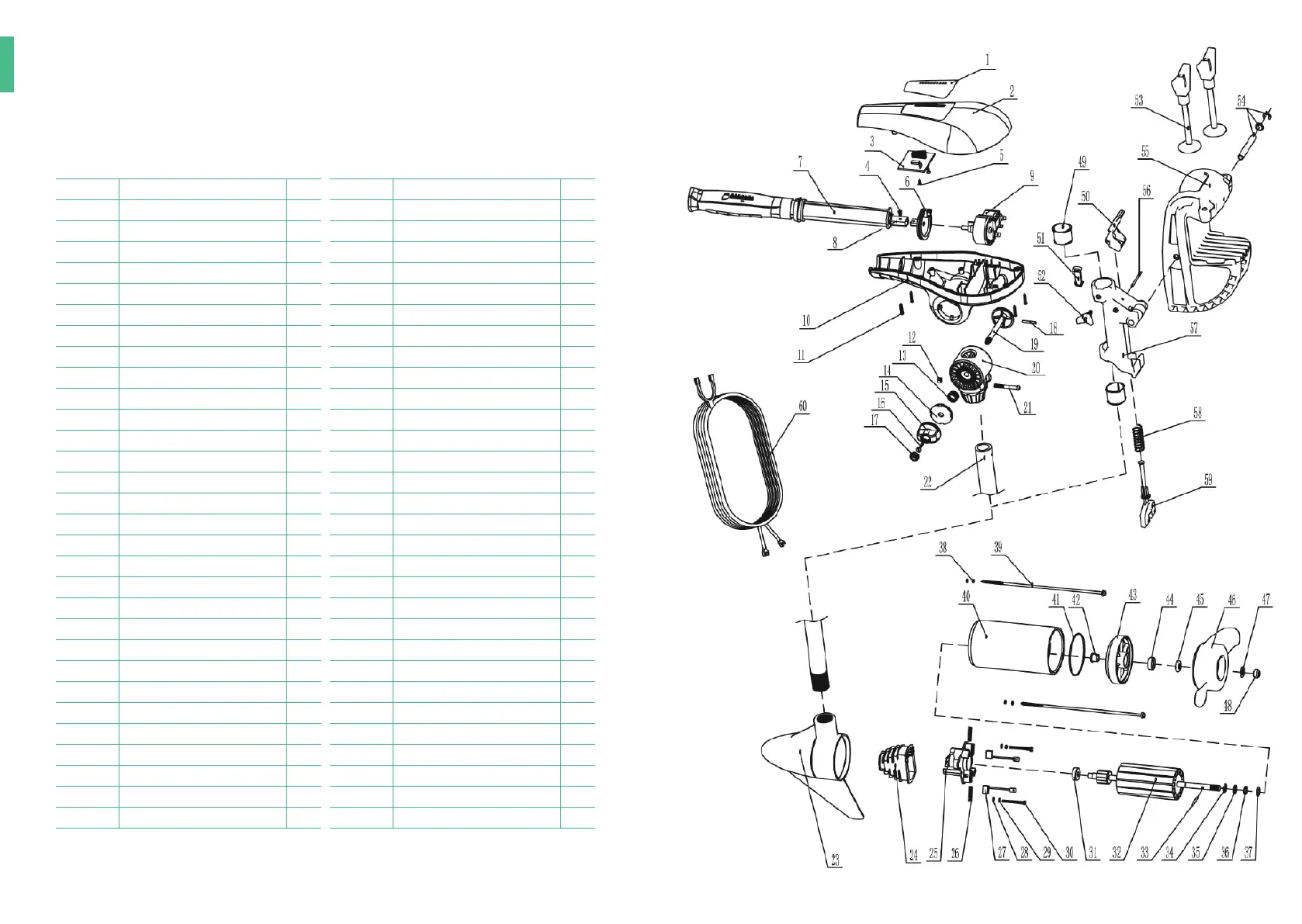

PARTS SCHEMATIC
