1 GENERAL INFORMATION
Thank you for purchasing X Series Trolling Motor. We hope that you
enjoy it!
Newport trolling motors are designed and developed by professional
engineers, and the design is continually honed and improved. There
are a wide range of Newport outboard motors, from 36lbs to 86lbs, to
suit every customer’s requirements and uses.
Please read and retain this manual before using this electric motor.
This manual contains information that describes the procedure for
safe operation and daily maintenance of your electric motor. Safe
operation will prevent personal injury and damage to the product.

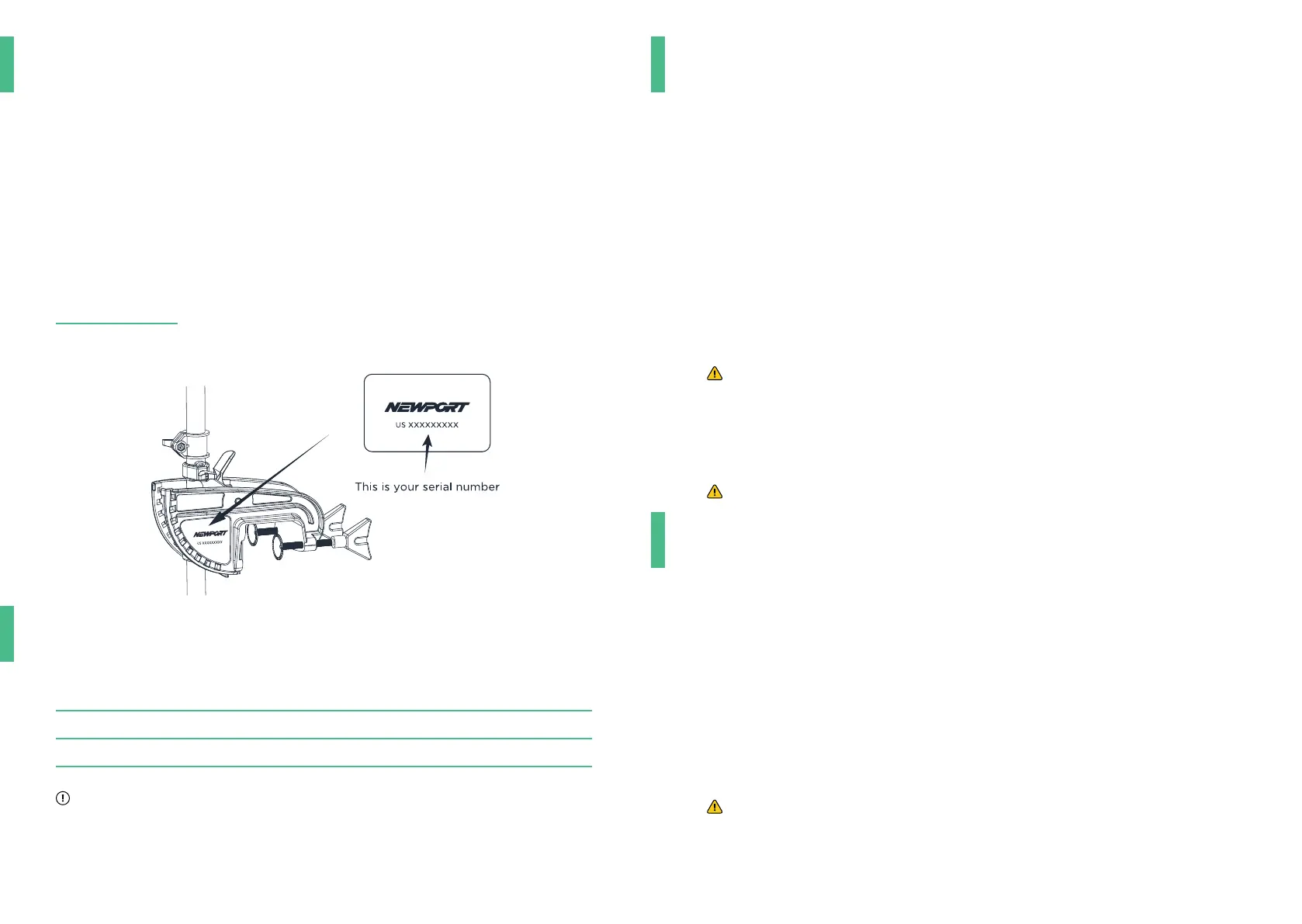

1.1 FIND YOUR SERIAL NUMBER
2 SPECIFICATIONS
Item
No.
Thrust
(LBS)
Thrust
(KG)
Input
Input
Power
X-40 40 18.1 12V, 34A 408W
X-55 55 25.0 12V, 52A 624W
CAUTION: Since speed depends on many factors, such as loading, water condition,
hull type, wind speed, etc., it is dicult to give accurate speed ratings. Instead refer to
the thrust and power ratings provided above.
3 WIRING AND BATTERY RECOMMENDATIONS
3.1 BATTERY TYPE
Recommended battery(s): 12-volt Deep Cycle battery or Marine
battery. To extend running time, either a larger capacity or an
additional battery can be used. See section on battery connection
method.
3.2 CIRCUIT PROTECTION
It is recommended to install a manual reset circuit breaker in
the electric outboard motor leads within 72 Inches (1.8m) of the
battery(s).
3.3 CABLE SIZE
If extending the standard battery cable supplied with the product,
Newport recommends the use of 8-gauge wire (13mm2 wire).
WARNING: Be sure all switches are in the OFF position before connecting to
battery or batteries. Electrical arcing near the battery could cause an explosion. The
battery produces hydrogen and oxygen gases while charging. This potentially explosive
mixture escapes through the fill vent cell caps and may form an explosive atmosphere
around the battery for several hours after it has been charged. Electrical arcing or
flames can ignite the gas and cause an explosion, which may shatter the battery and
could cause blindness or other serious injury.
WARNING: Batteries contain sulfuric acid, which can cause severe burns. Avoid
contact with skin, eyes and clothing.
4 SAFETY INFORMATION
• Do not allow children to operate the electric outboard motor.
• Do not modify the unit in any way or add accessories not
intended for this product.
• Never fully submerse the unit. If unit is accidentally submersed,
disconnect battery and leave to dry.
• To prevent accidental damage to the fiberglass shaft, do not over
tighten the mounting bracket.
• Only use this product between the temperatures -4F° to +113F°
(-20°C to +45°C).
• User(s) should always wear approved life jackets.
WARNING: Always disconnect power from the motor when replacing propeller,
removing debris around the prop, charging batteries, transporting boat, or when the
motor is not in use.
