Installation Instructions

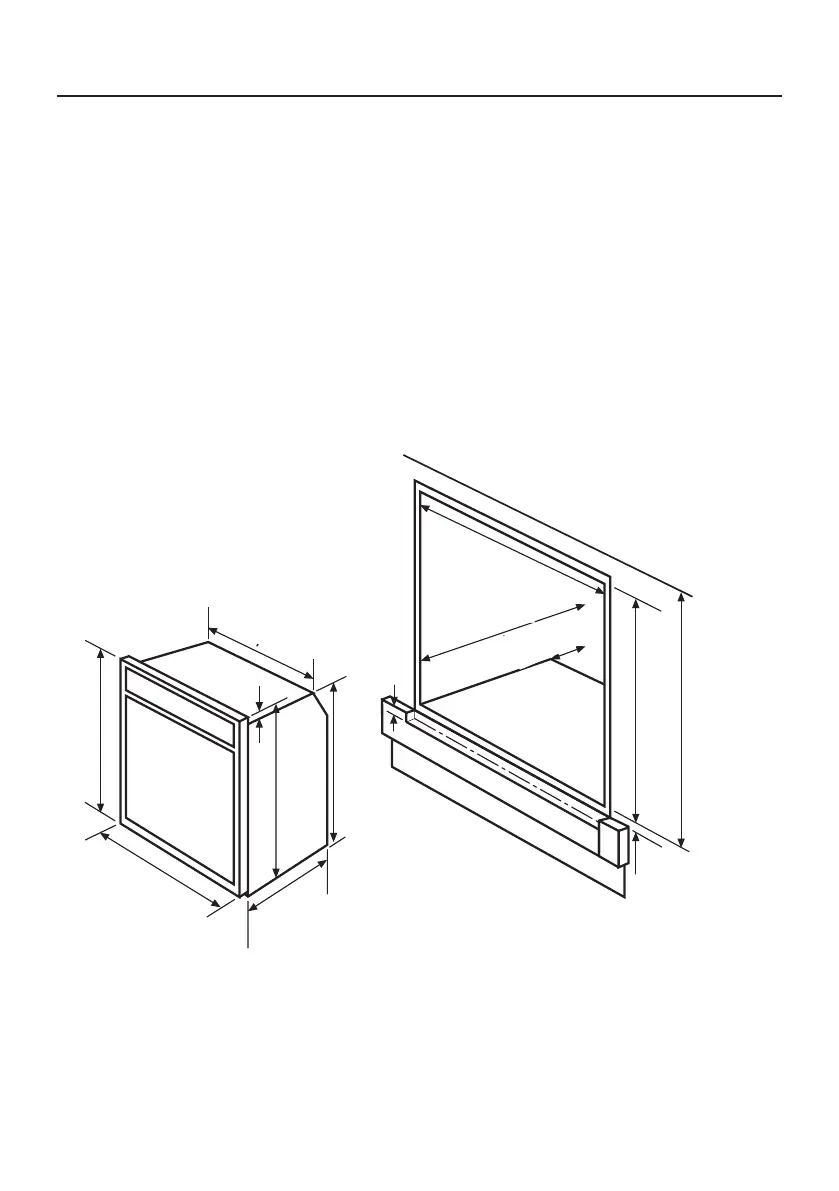

The appliance is designed to fit into a
standard 600mm wide housing unit,
with minimum internal dimensions
as shown.
Note: 590mm is to the underside of
the worktop when the appliance is
built under, or to the underside of the
panel above, when the appliance is
installed into a tall housing unit.
Please note that all sizes are nominal,
and some variation is to be expected.
Installing appliance under a
worktop
Where the appliance is installed under
a worktop, with a hob installed above
it, the installation instructions for the
hob must be read in conjunction with
these instructions.
547mm
20mm
585mm
595mm
550mm
585mm
565mm
min
595mm
m
in
550m
m
min 580mm
min 590mm
12mm gap
in plinth
6mm
3
0
-
8
0
m
m
