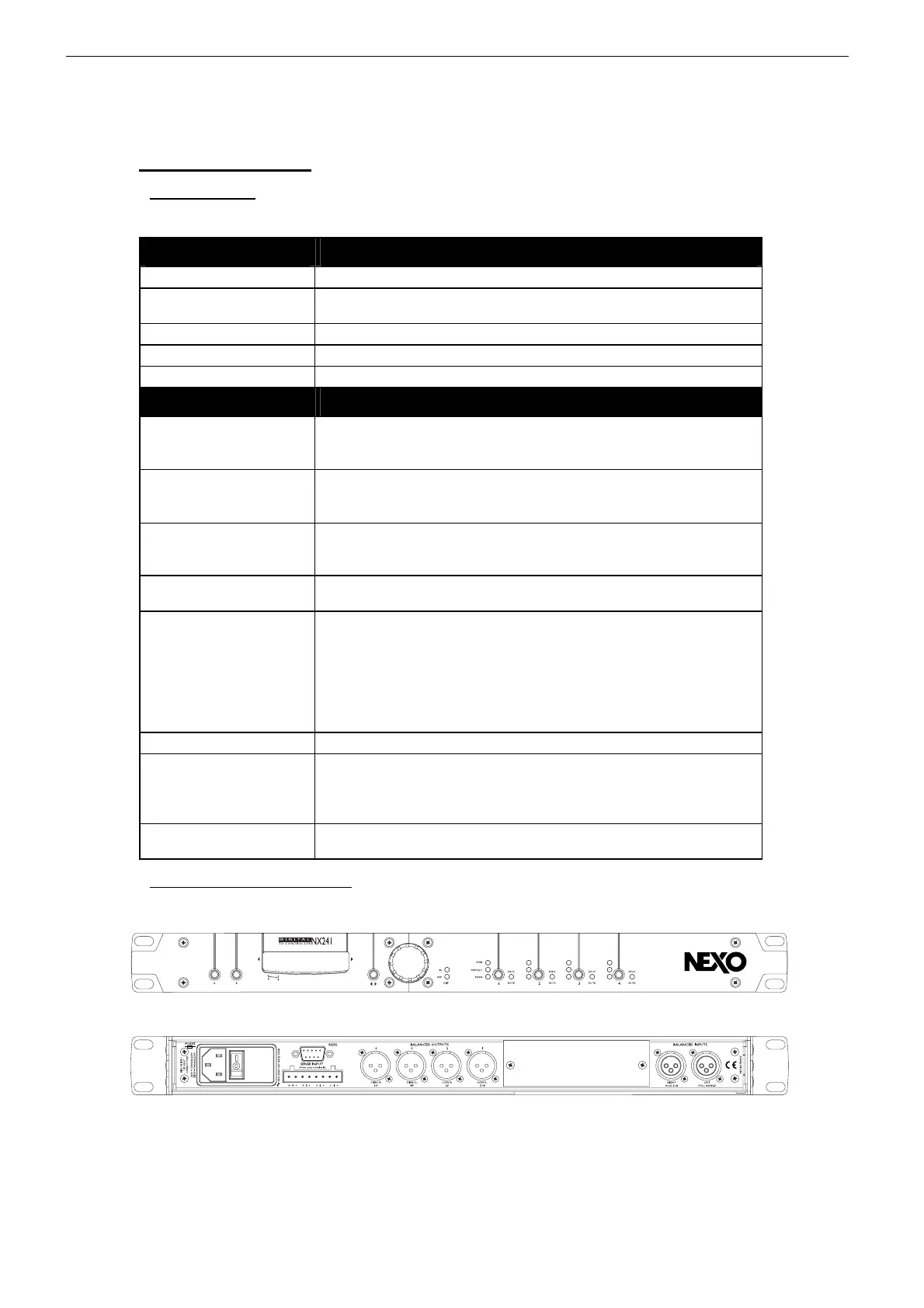

Page 54/63 TECHNICAL SPECIFICATIONS
6.5 NX242 TDcontroller
6.5.1 Specifications
SPECIFICATIONS NX242 Digital TDcontroller
Output Level +28 dBu Max. into 600 Ohm load
Dynamic Range Channels 1 & 2 = 99 dBu
Channel 3 & 4 = typical 107 dBu. (Flat without gain scaling: 101dBu)
THD + Noise < 0.02% flat setup (max0.04% for Output 27.5dBu)
Latency time 1.4ms on a flat setup
Power Supply 115/230 Volts 50/60 Hz (operating range 90-125V & 180-264V)
FEATURES
Audio Inputs 2 Audio Inputs 24 bit converters
Electronically Balanced, 36 k Ohm.
2 XLR-3F Connectors.
Sense Inputs 4 Amplifier Sense Inputs (LF mono, MF/HF L&R)
Floating 150 kΩ. 18 bit converters
8 Pole Removable Strip Terminal.
Audio Outputs 4 Audio Outputs. 24 bit converters
Electronically balanced, 50 Ohm
4 XLR-3M connectors
Processing 24 bit data with 48-bit accumulator. 100MIPS
Optional Expansion Board 300MIPS
Front Panel
Menu A and Menu B buttons
16 characters by 2 lines display
Select Wheel & Enter button ()
IN Clip – DSP Clip red LED’s
Speaker Protection yellow LED for each channel
Individual Mute/Solo buttons and red LED for each channel
Amp. Sense & Peak (green & red) LED’s for each channel
FLASH EPROM Software updates/upgrades, new system setups, available on www.nexo-sa.com
Rear Panel 90-240 V
Fuse holder
RS232 connector for serial com
Empty slot for extension card (communication & processing power)
Dimensions & Weight 1U 19" Rack - 230 mm (9") Depth.
4 kg
6.5.2 Front and Rear Panel view
