LOUDSPEAKERS
___________________________________________________________________________________________________
P.11

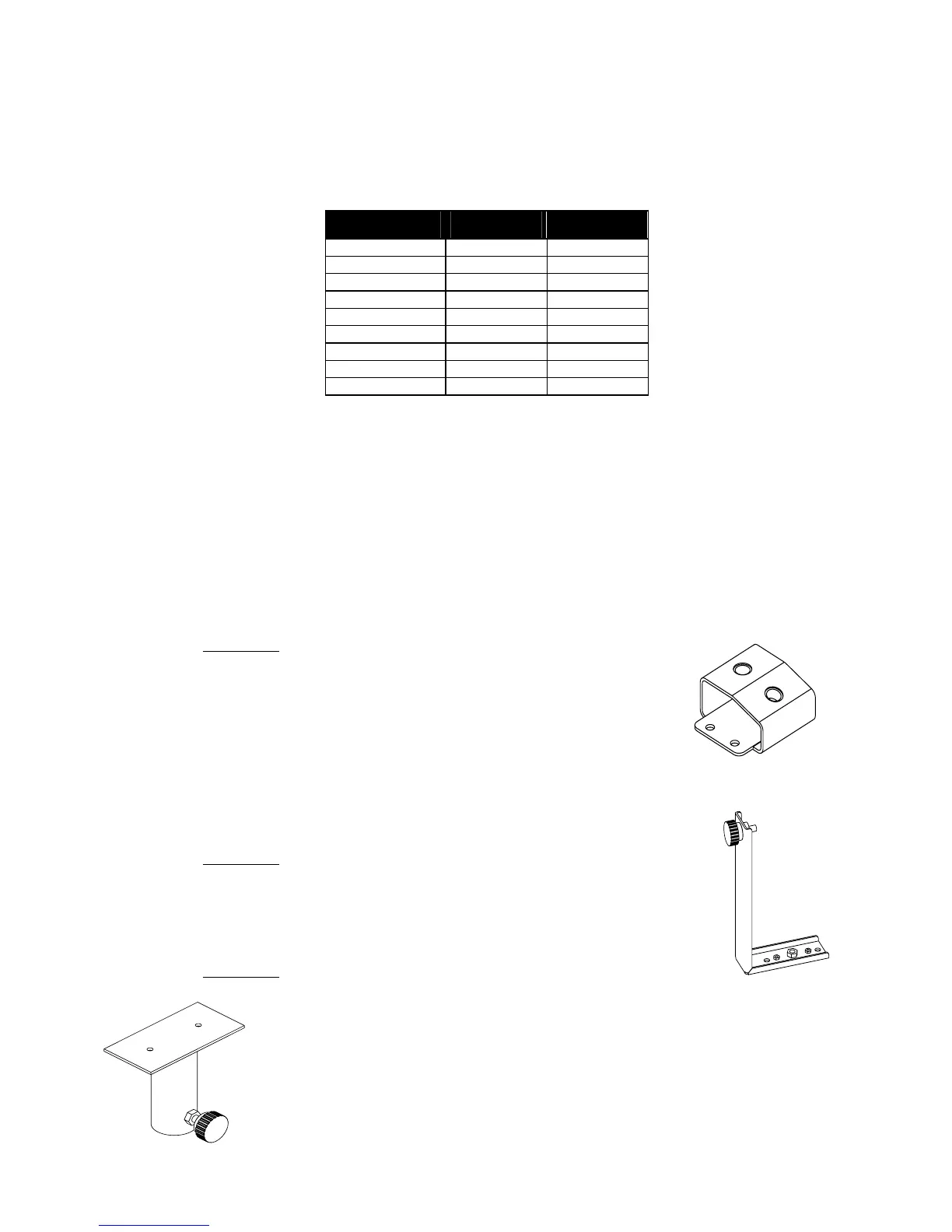

Vertical orientation of cabinets is a function of ring position in the top rail. It is imperative for security
reasons to use two rings per rail (left figure) linked to two independently fixed straps. Ring B will also be
used to stabilize the cabinet rotation and reduce the angle given by the master ring A. Nominal vertical
angles relative to the position of ring A (without the influence of ring B) are as follows:
Position PS10 Angles PS15 Angles
1 -17° -20°
2 -12° -16°
3 -7° -12°
4 -2° -8°
5 +3° -4°
6 +8° 0°
7 NA +4°
8 NA +8°
9 NA +12°
Omnimount® style clamps
The back and the bottom of the PS10 is equipped with internal anchor points (M8 metric) to the
Omnimount® 100 Series spacing standard. This is particularly convenient when cabinets must be
installed permanently in a horizontal or vertical position. To remove the original screws a N°4 metric Allen
key/TORX25 is required. Please note that the Omnimount 100 series is not rated for the weight of the
PS15. Do not use this accessory with this cabinet without a second proper safety point.
PS8 Accessories
FS0081-001
This accessory is designed to be mounted directly onto the PS8 cabinet
surface. It provides 2 M10 captive nuts that allow the following accessories
to be fitted: (not supplied in this kit)
• Standard lighting hook/CLAMP
• M10 lifting eye bolt
• DIN Pivot (TV spigot)
FS0081-002
This accessory provides 2 welded M5 nuts and 1 welded M10 nut. (It should
always be used along with the FS0081-001.) This adapter allows the cabinet to
be fixed on the wall, ceiling or on a stand using the FS0081-003
FS0081-003
This adapter is designed for use with the PS8 cabinet. It allows for Horizontal
mounting of the cabinet on a stand or a mast (∅35mm). It can be used along with
other accessories or it can be fitted directly to the cabinet.
