RS HARDWARE SETUP PROCEDURE
Page 22 / 76 System Manual RS Series
5.3 RS18 General Instructions
IMPORTANT
IN ORDER TO PREVENT SCREWS FROM GETTING LOOSE, USE BLOCKING LIQUID LOCTITE
TM
243 OR
EQUIVALENT FOR ALL SCREWS USED WITH RS18 ACCESSORIES.

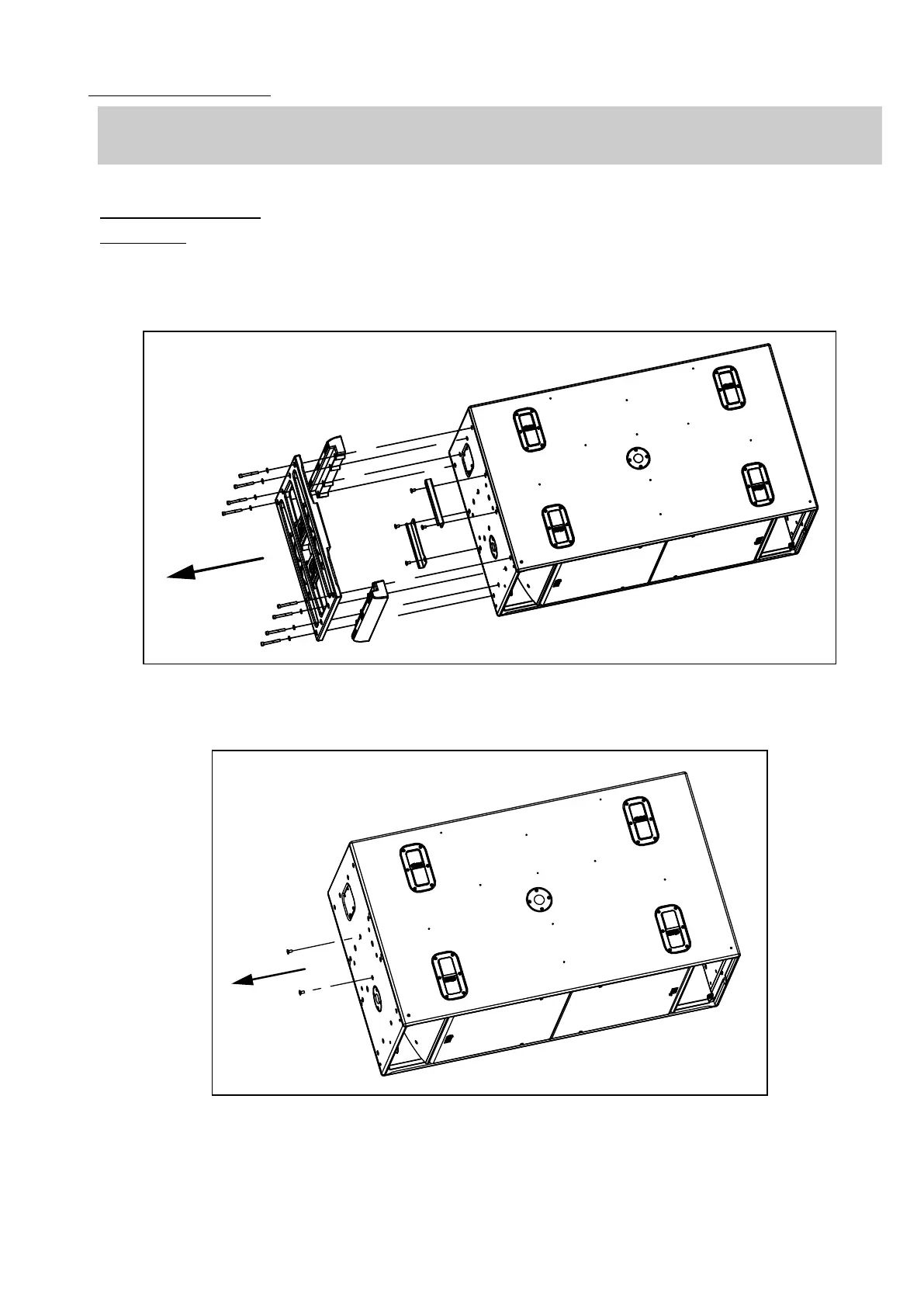

5.3.1 Mounting Rigging Plate
RS18 Painted
Procedure
- Remove the twelve screws on each side of RS18
- Remove the four screws on each side of RS18
- Insert Spacer between cabinet and Rigging plates
- Fill each screw hole with Loctite 243 or equivalent
- Tighten the 6 screws alternately, at the rate of 4 revolutions per screw
