Nexo Ray Sub Series System Manual

RS GENERAL SET-UP INSTRUCTIONS
Page 8 / 76 System Manual RS Series
2 RS GENERAL SET-UP INSTRUCTIONS

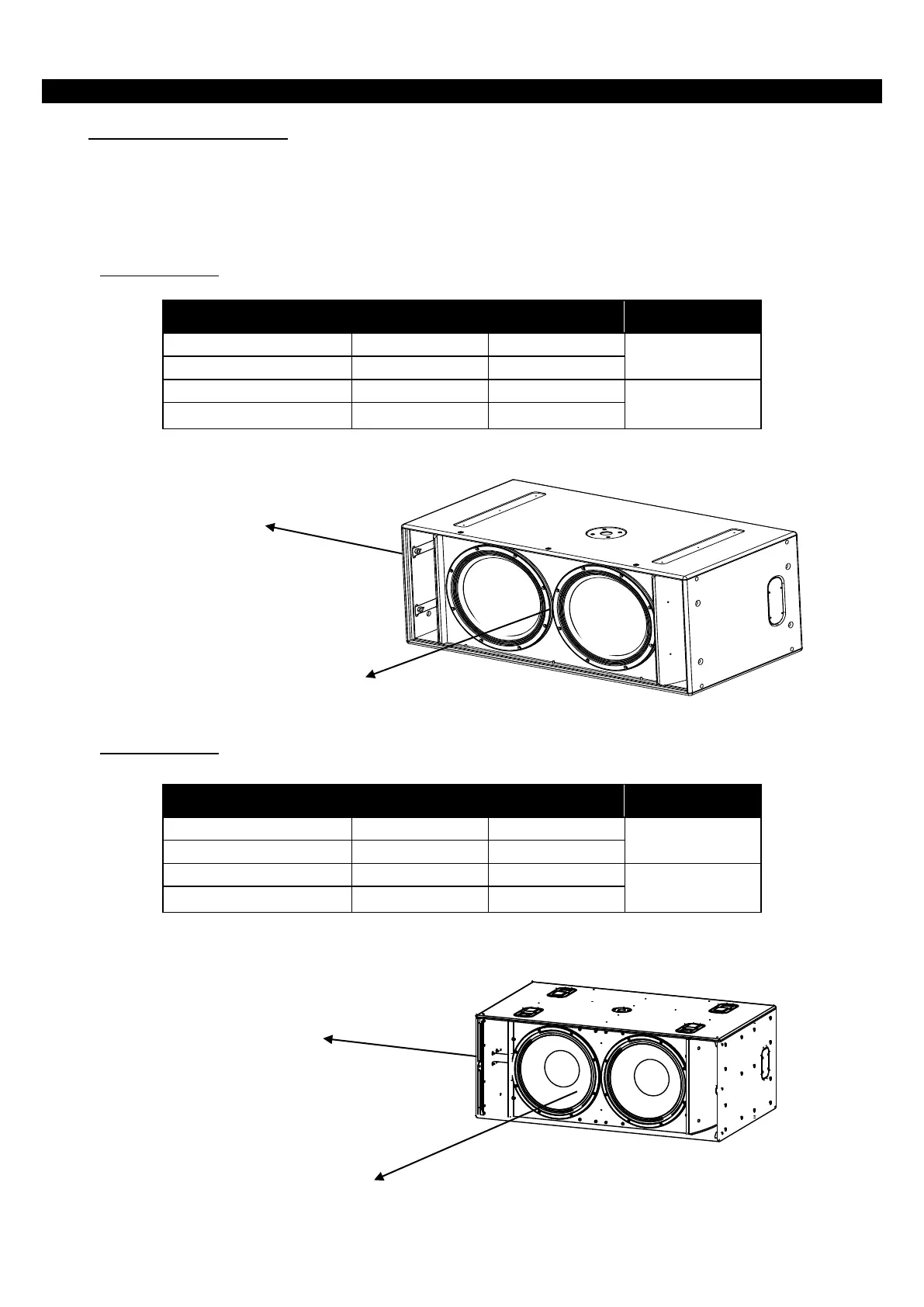

2.1 RS15 and RS18 connections
RS15 and RS18 are connected with Speakon NL4FC plugs (not supplied). A wiring diagram is printed on the connection panel
located on the back of each cabinet. The 4 pins of the Speakon sockets identified in / out are connected in parallel within the
enclosure.
Either connector can be used to connect amplifier or to link to an additional RS cabinet.
2.1.1 RS15 connectors
2.1.2 RS18 connectors
Speakon Connector
Omni Mode
Directional Mode
Comment
1(-)
Right driver (-)
Rear driver (-)
Driver next to
connector panel
1(+)
Right driver (+)
Rear driver (+)
2(-)
Left driver (-)
Front driver (-)
Driver opposite to
connector panel
2(+)

Left driver (+)
Front driver (+)
Speakon Connector
Omni Mode
Directional Mode
Comment
1(-)
Right driver (-)
Rear driver (-)
Driver next to
connector panel
1(+)
Right driver (+)
Rear driver (+)
2(-)
Left driver (-)
Front driver (-)
Driver opposite to
connector panel
2(+)

Left driver (+)
Front driver (+)
LEFT
(FRONT)
2-/2+
RIGHT
(REAR)
1-/1+
OMNI
MODE
DIRECTIONAL
MODE
OMNI
MODE
DIRECTIONAL
MODE
