RS
HARDWARE
SETUP
PROCEDURE
Page
24
/
76
System Manual RS Series
RS18 Carpeted
Procedure
-

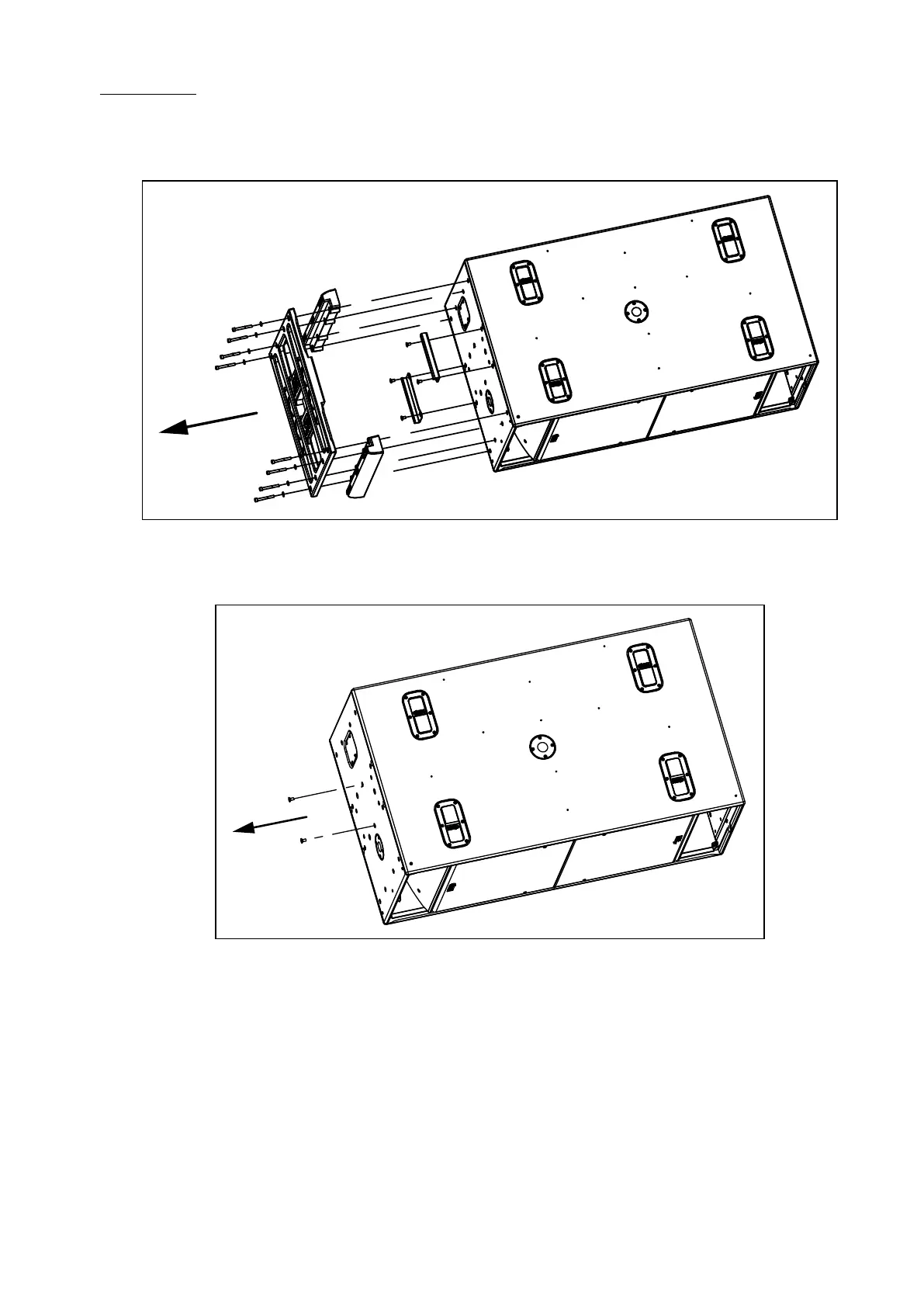

Remove the twelve screws on each side of RS18
-
Remove
the four screws on each side of RS18
-
Fill
each screw hole with Loctite 243 or equivalent
-
Tighten
the 6 screws alternately, at the rate of 4 revolutions per screw
23
25
