Next Wave CNC SHARK - Connecting VFD to Control Box

DRAFT 3 06 09 2021
16

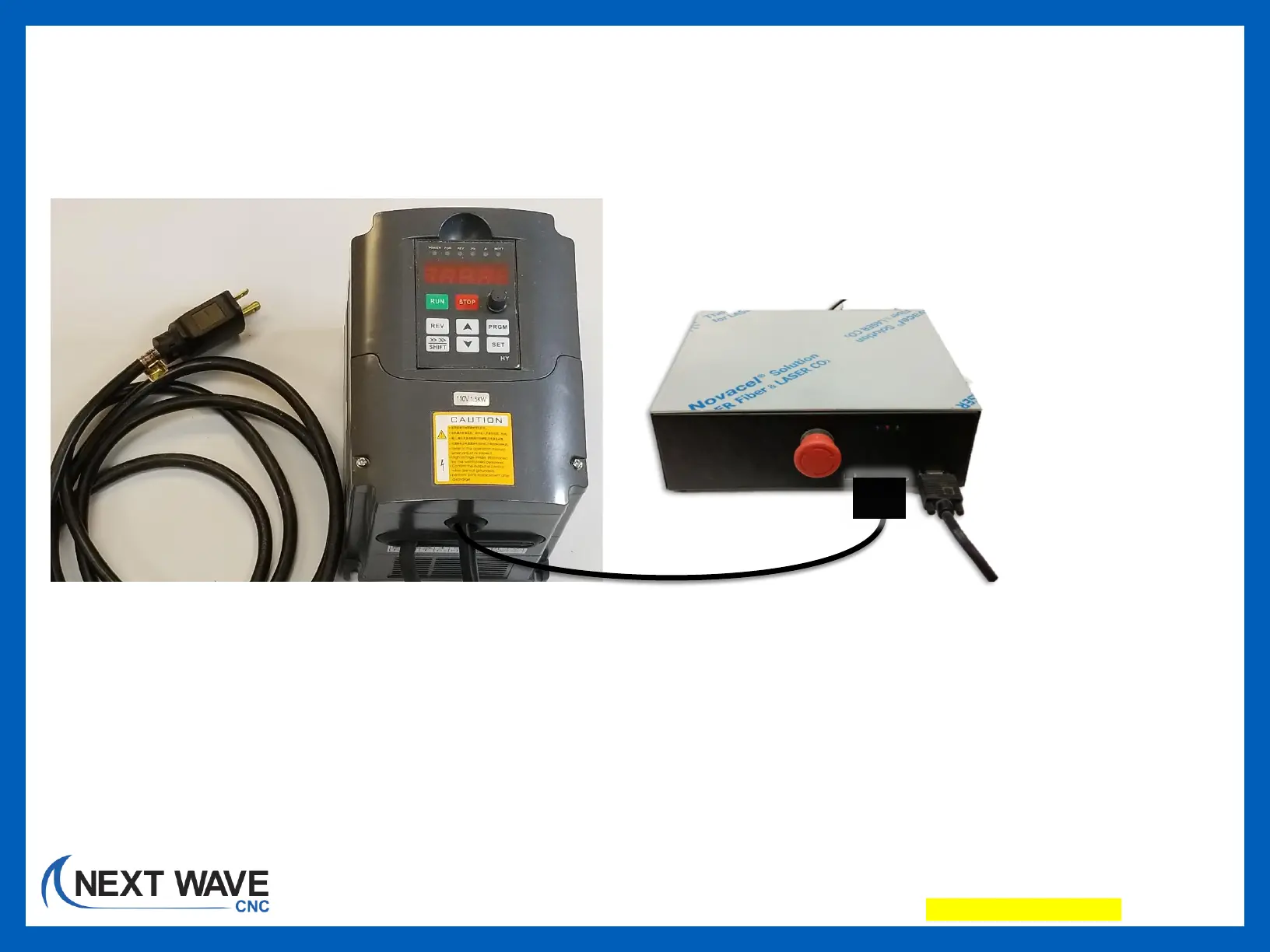

22. Connect the Spindle Speed interface cable to port on the front of the control box.
The tab on the top of the interface cable plug should face up when inserting it into the port.
21. Unplug VFD
